Home >> Ford Truck >> 2004 >> Excursion 2WD V8-6.0L DSL Turbo VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Driver Memory Seat Front Height Sensor

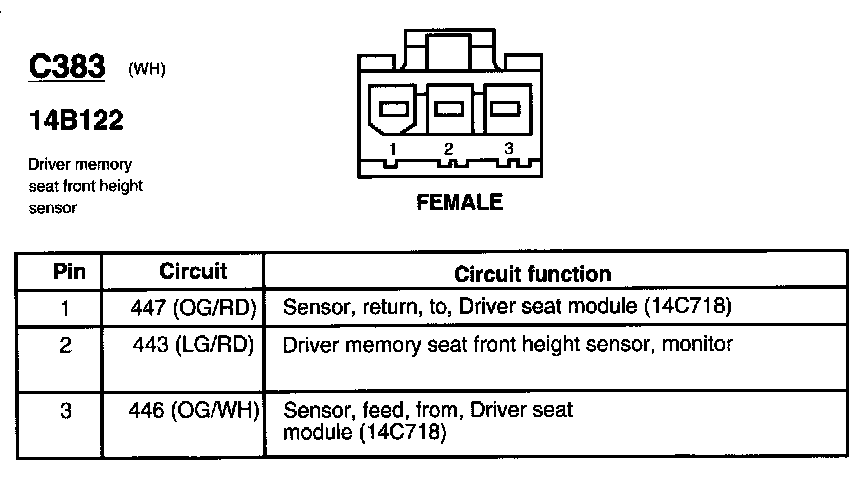

Driver Memory Seat Front Height Sensor
