Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2004
>>
Excursion 2WD V8-6.0L DSL Turbo VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 29
Diagram Set 29

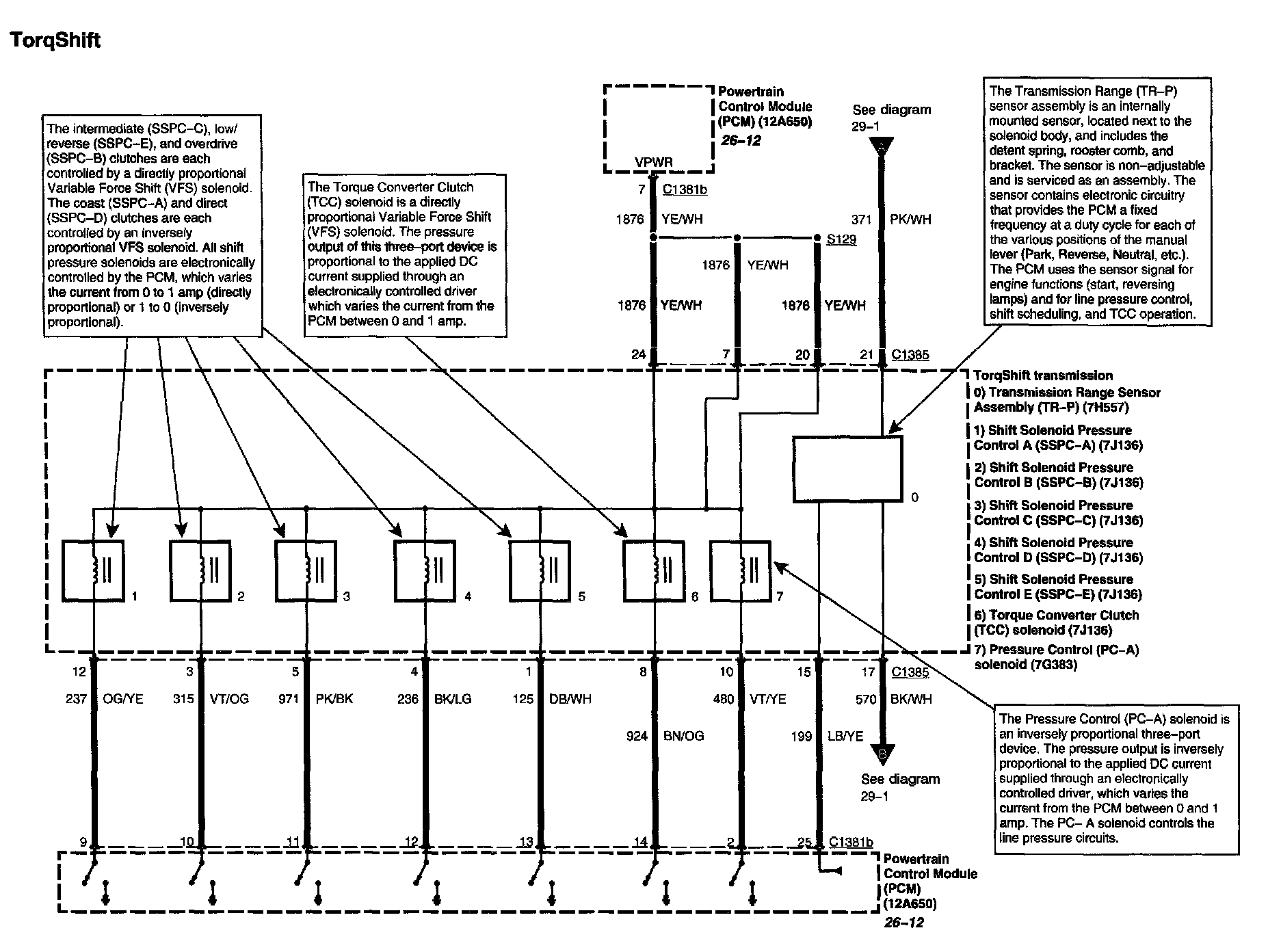

29-1:

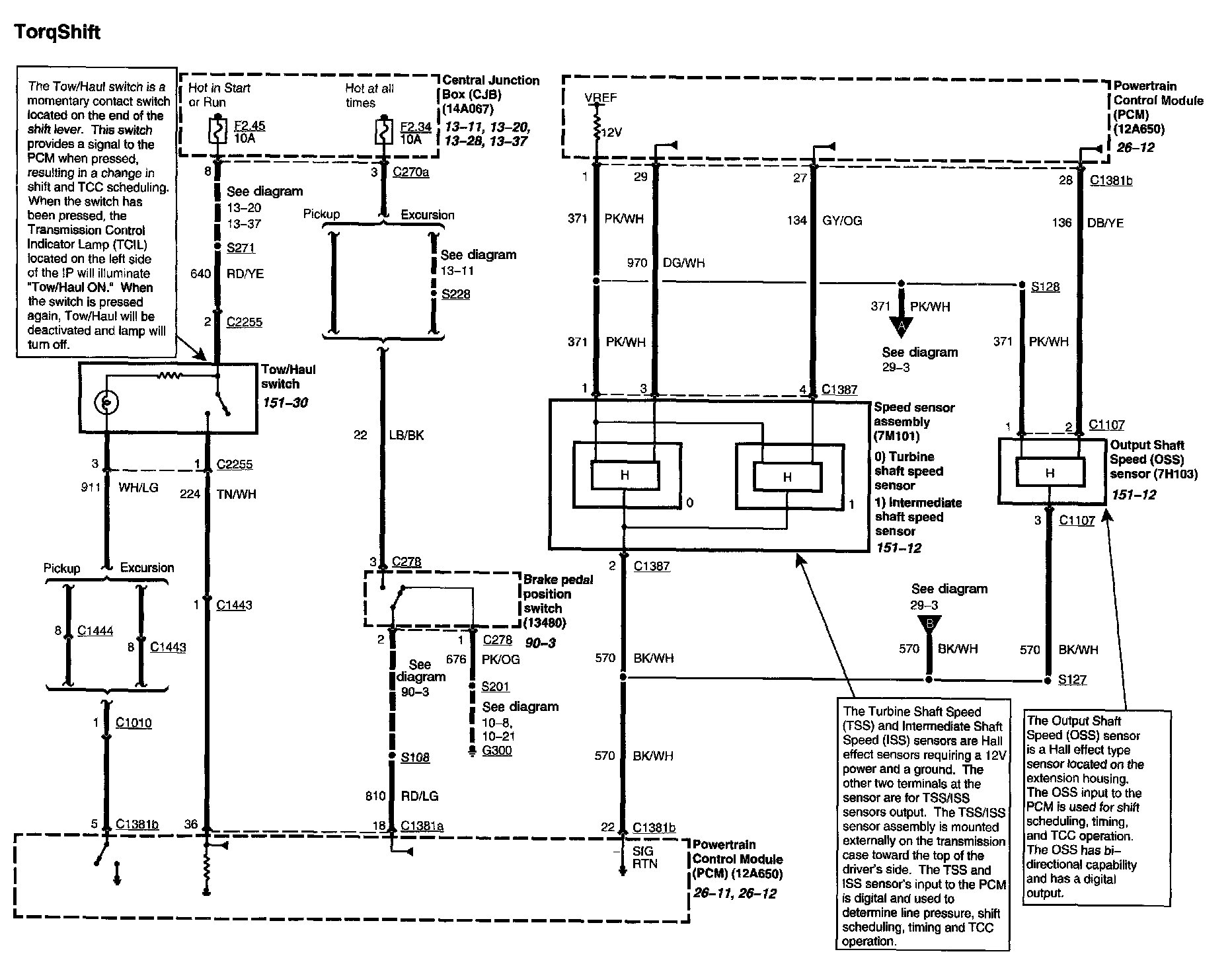

29-2:

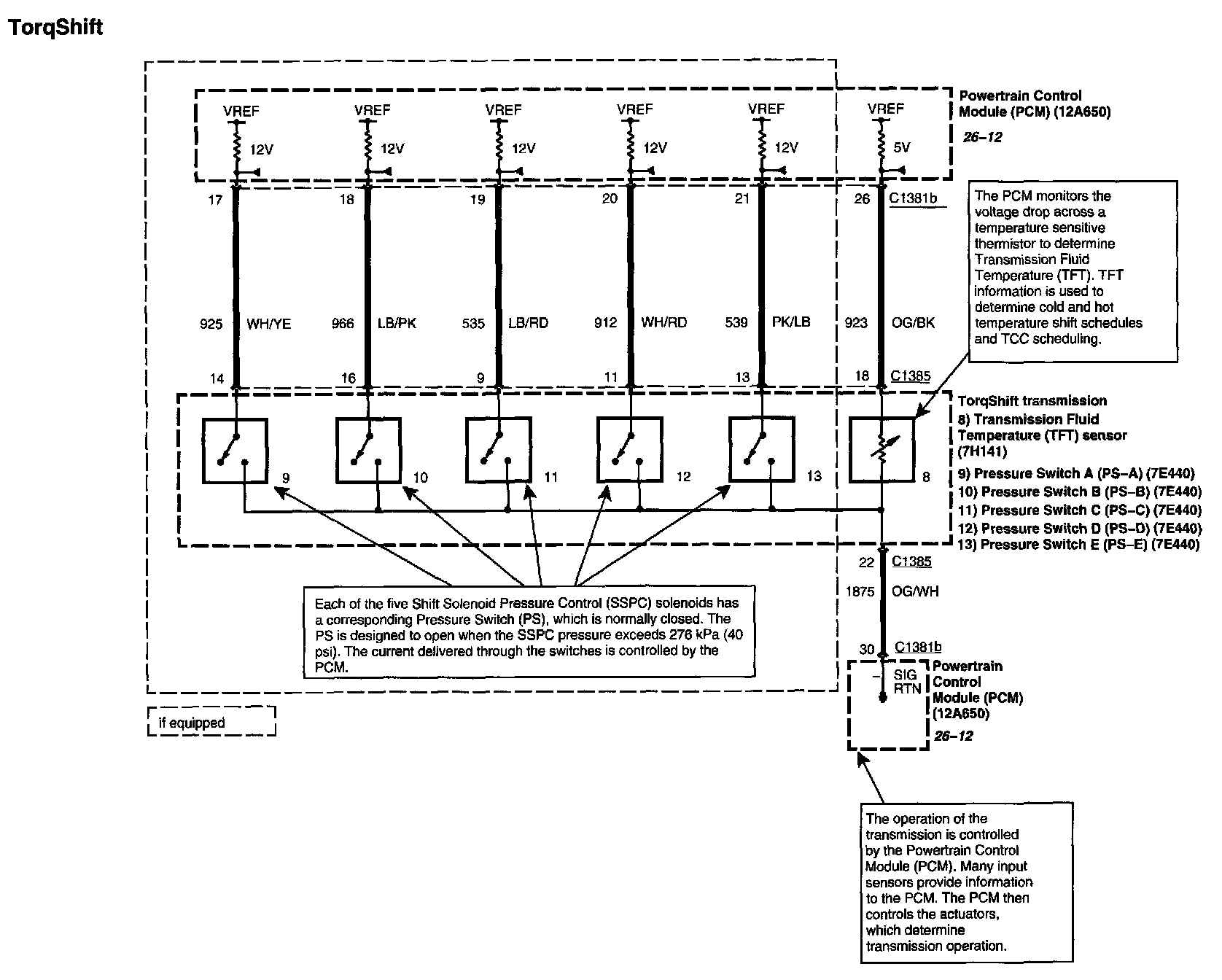

29-3:
