Cluster Finish Panel

INSTRUMENT PANEL - CLUSTER FINISH PANEL

REMOVAL
1. Remove the audio unit.

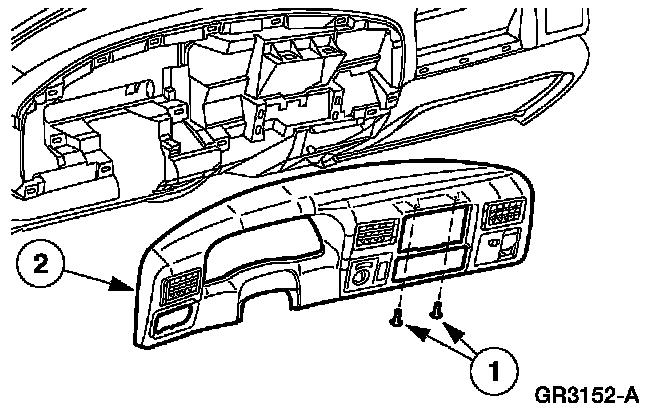

2. Remove the instrument panel cluster finish panel.
1 Loosen the screws.
2 Remove the instrument panel cluster finish panel.
- Disconnect the electrical connectors.

INSTALLATION

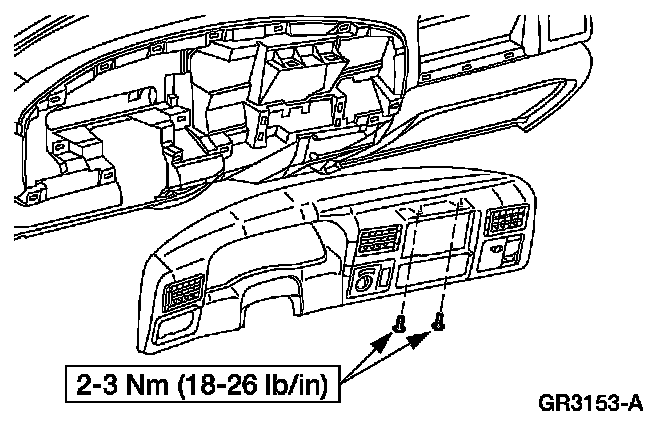

1. To install, reverse the removal procedure.
