Center Mounted Brake Lamp: Service and Repair

LAMP ASSEMBLY - HIGH MOUNTED STOP

REMOVAL

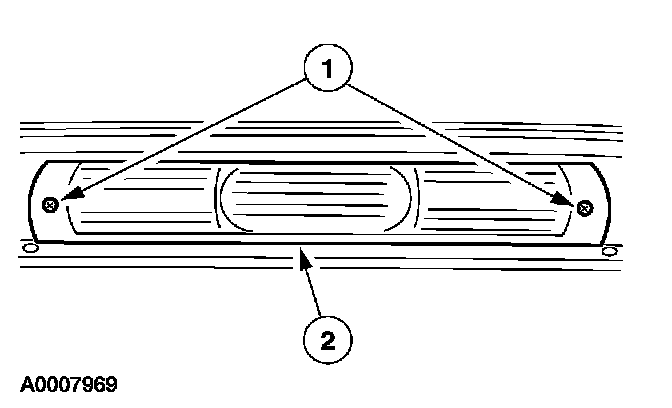

1. Remove the high mounted stoplamp.
1 Remove the screws.
2 Remove the high mounted stoplamp.

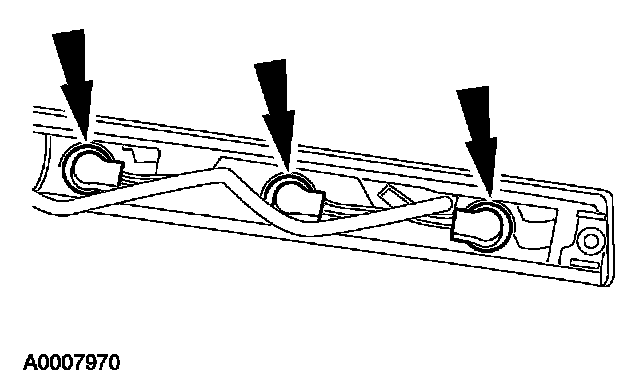

2. Remove the bulbs.

INSTALLATION
1. To install reverse the removal procedure.
