Drive Belt: Description and Operation

Accessory Drive

The accessory drive:
^ has a single serpentine drive belt.
^ has automatic tensioning.
^ is not adjustable.

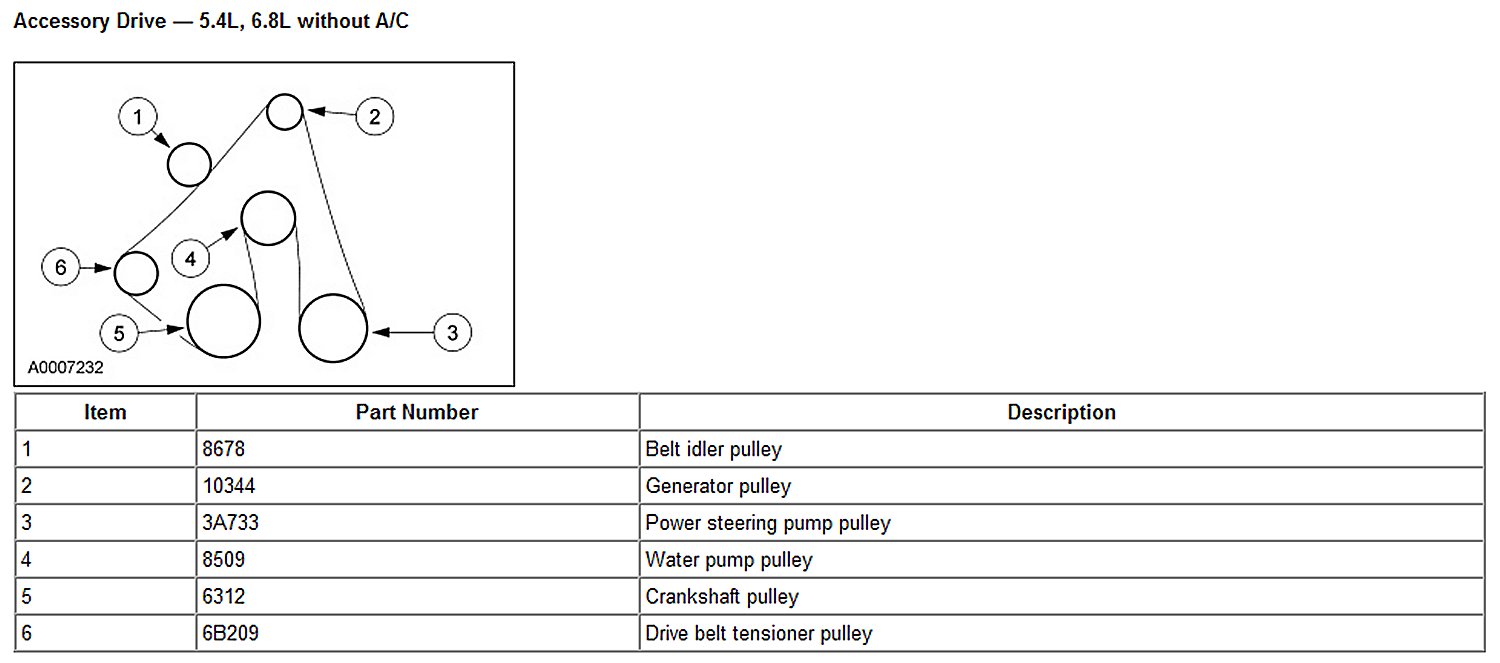

5.4L/6.8L Without A/C:

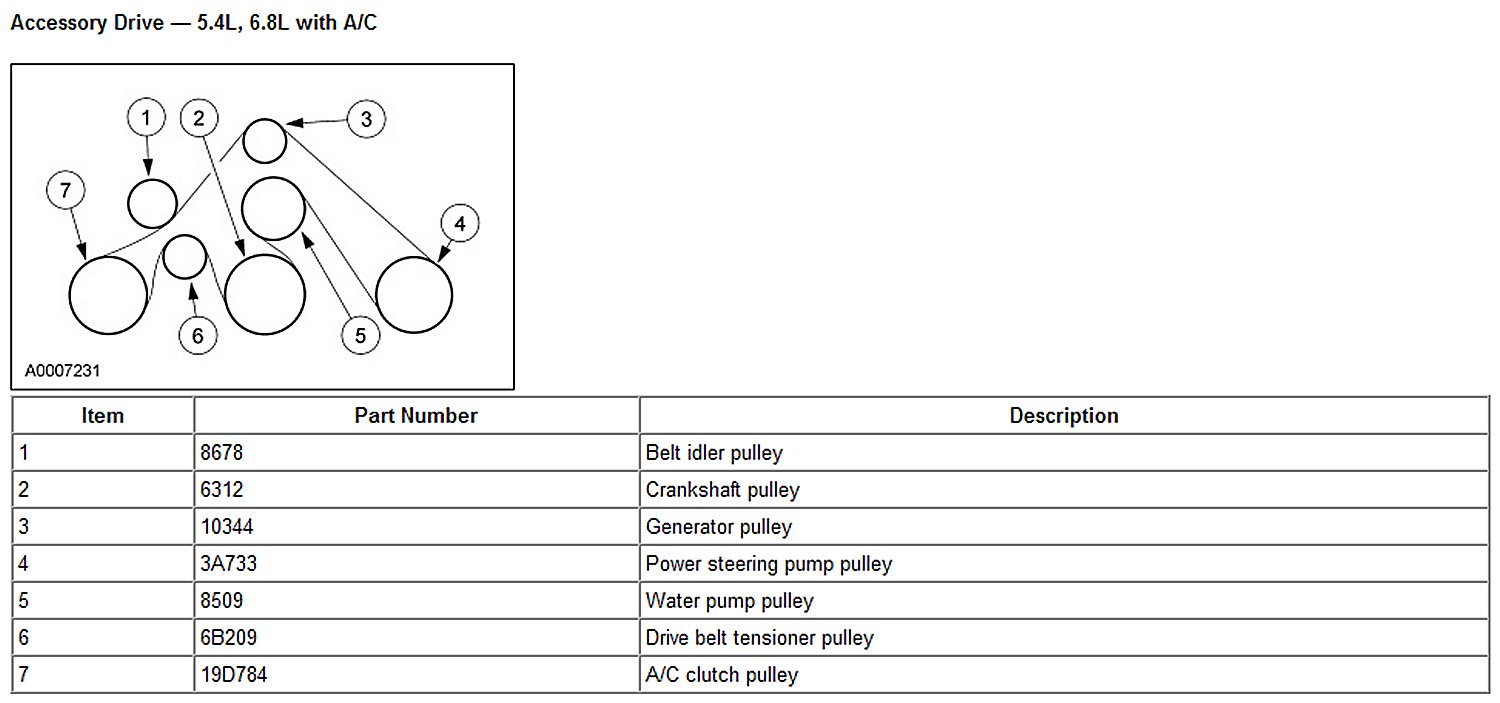

5.4L/6.8L With A/C:

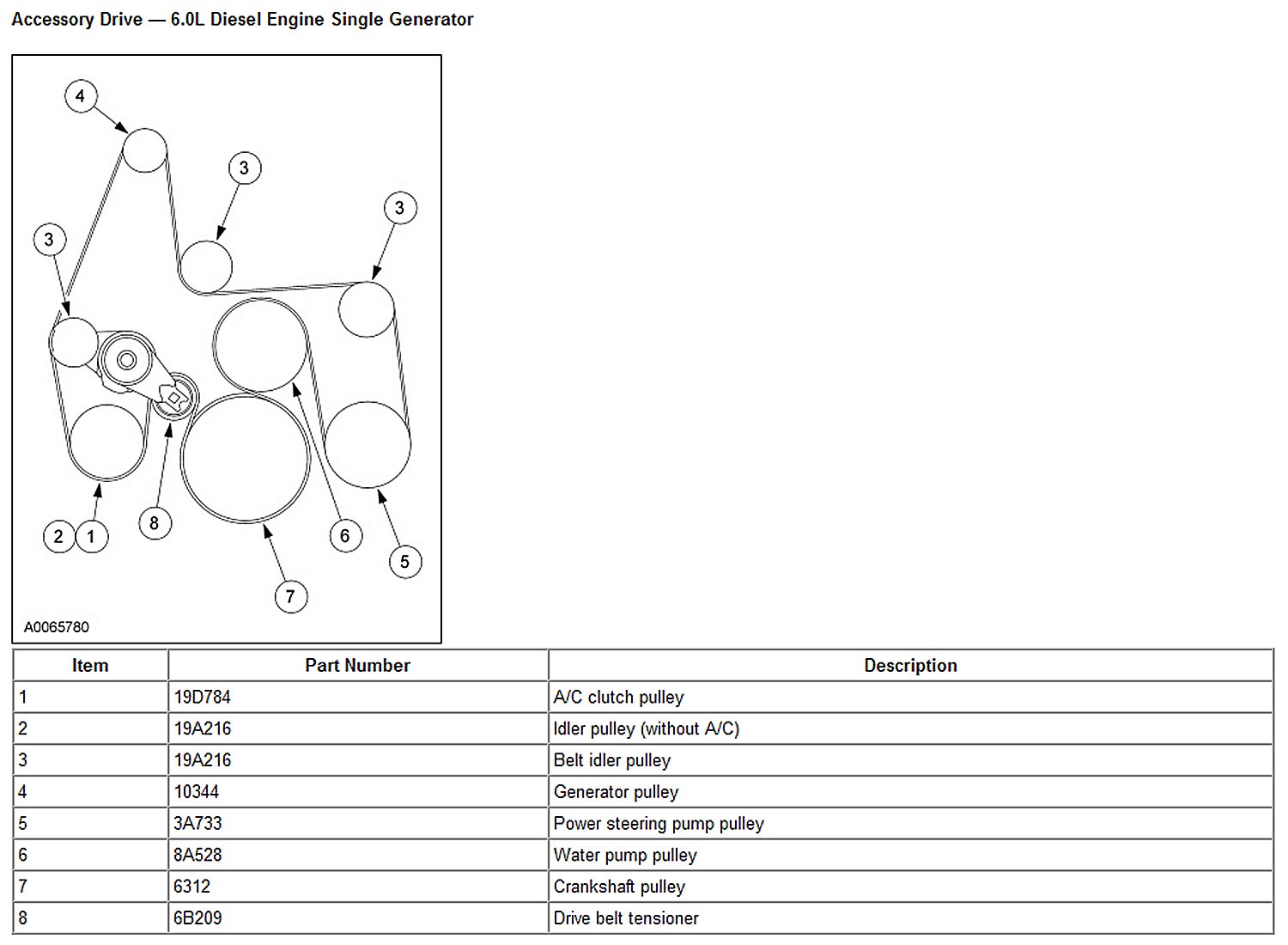

6.0L Diesel Single Generator:

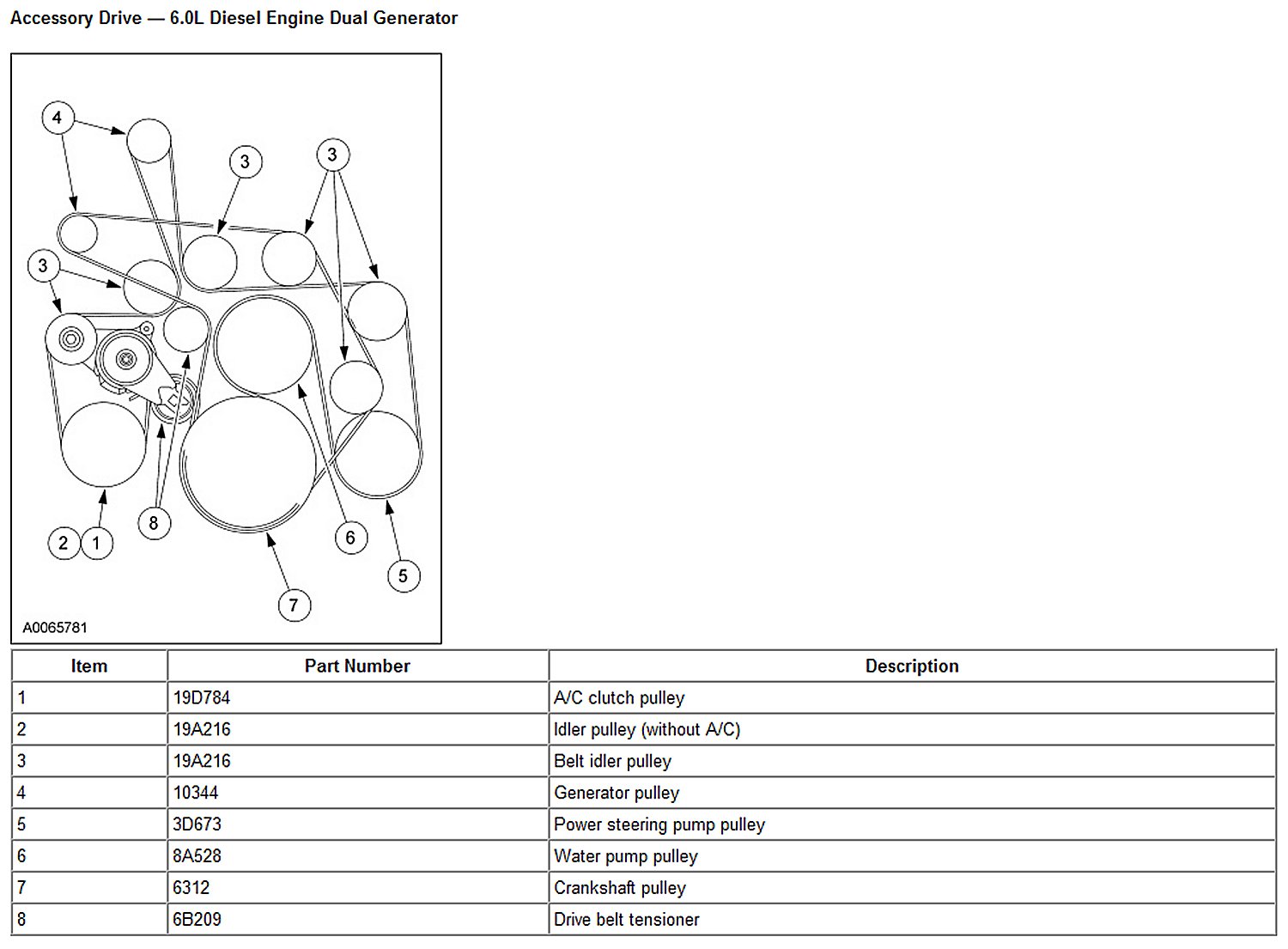

6.0L Diesel Dual Generator:
