Test L: Engine Oil Temperature (EOT) Sensor

Warning, Description, And Caution:

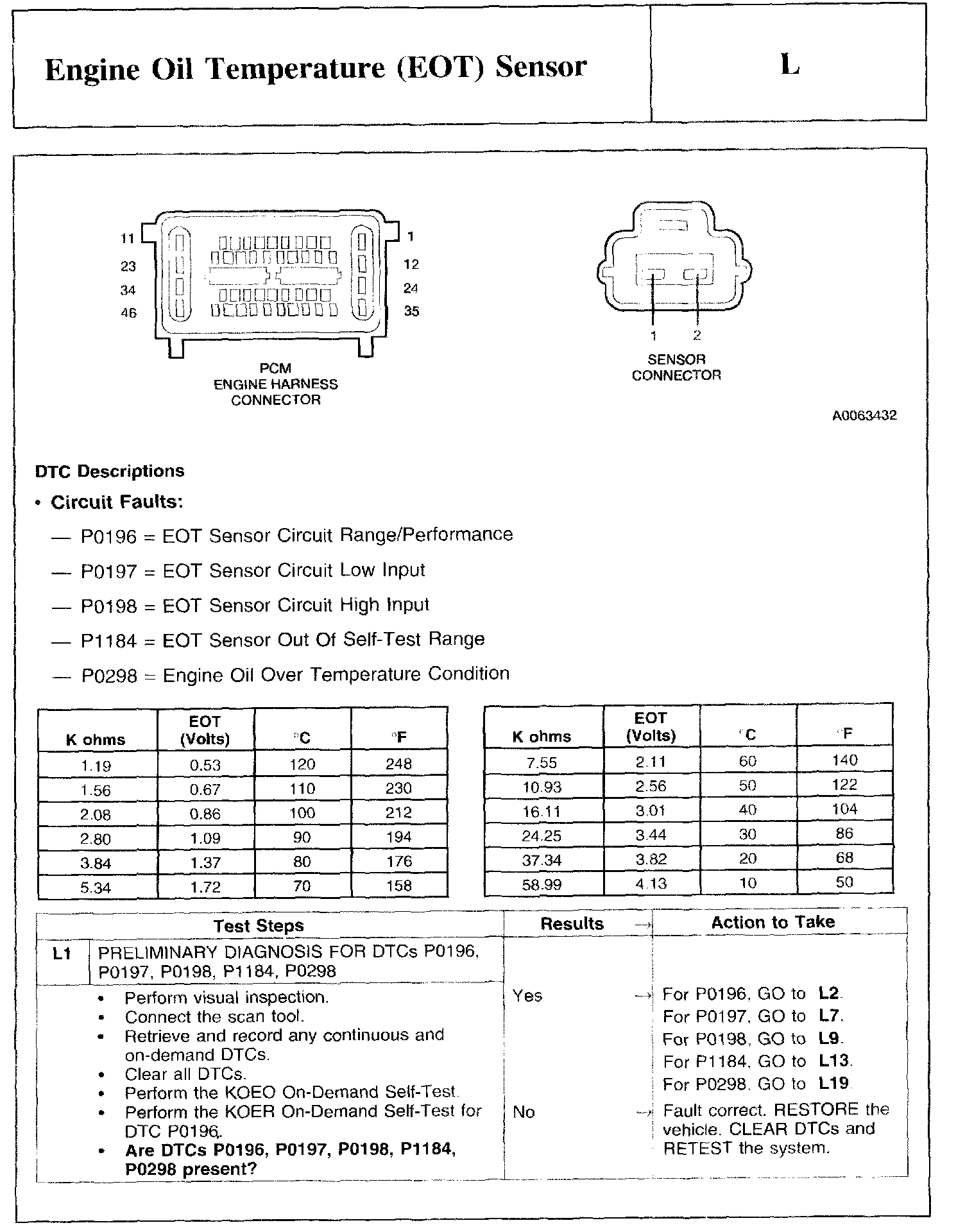

Schematic, Description, Table And Test L1:

Test L2-L4:

Test L5-L7:

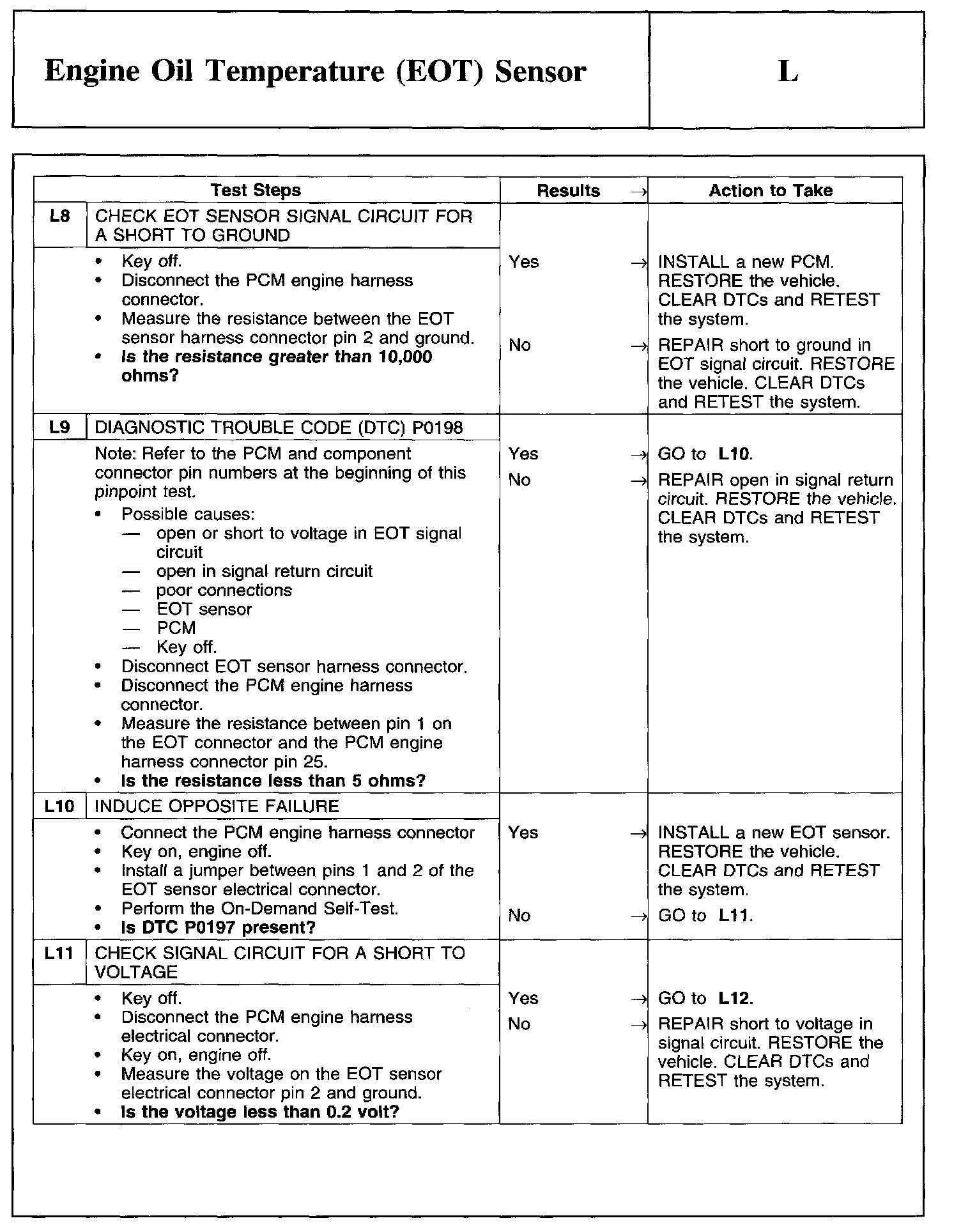

Test L8-L11:

Test L12-L15:

Test L16-L20:

Test L21-L23:
