Steering Linkage

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

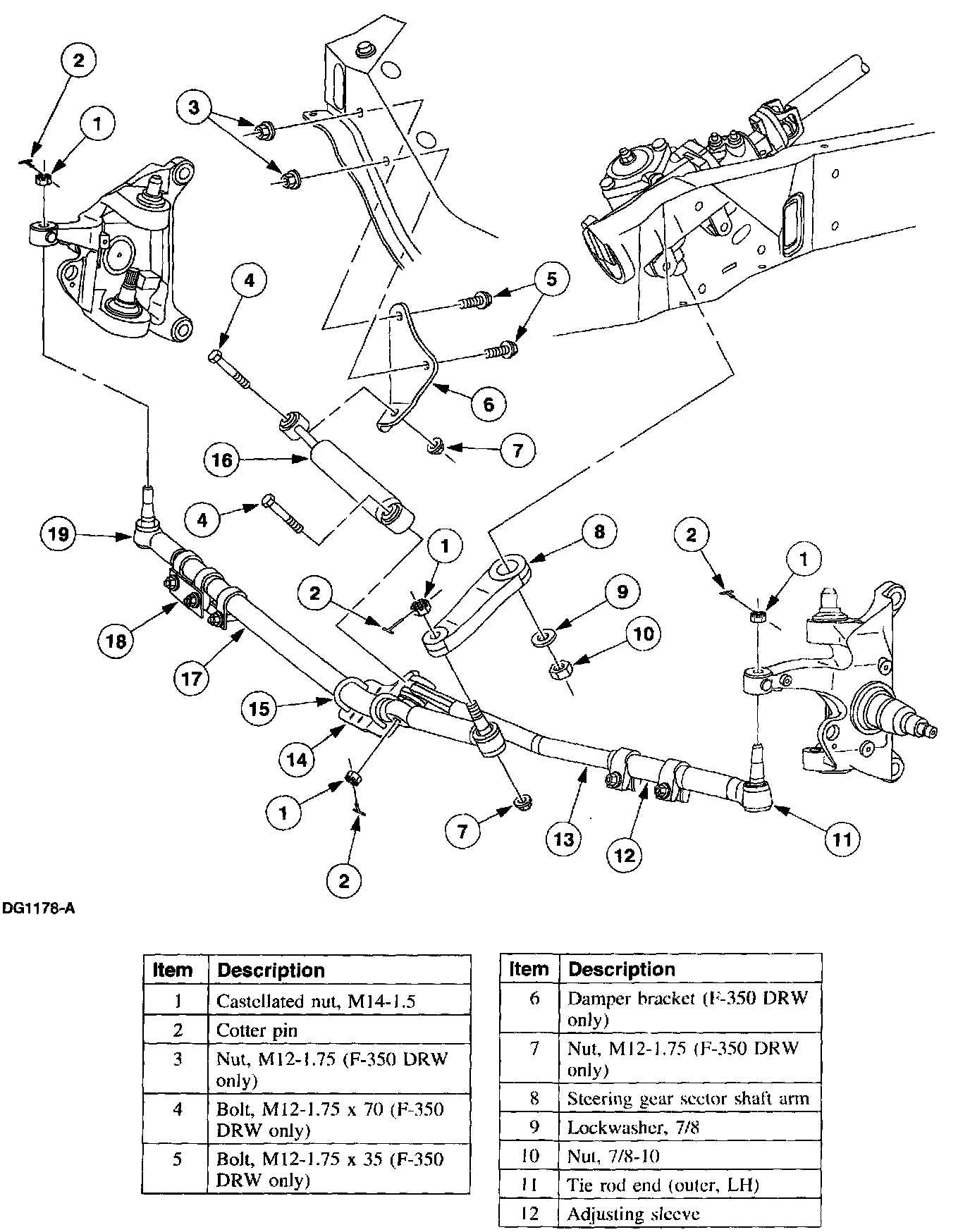

F-25O, F-350, 4x2

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

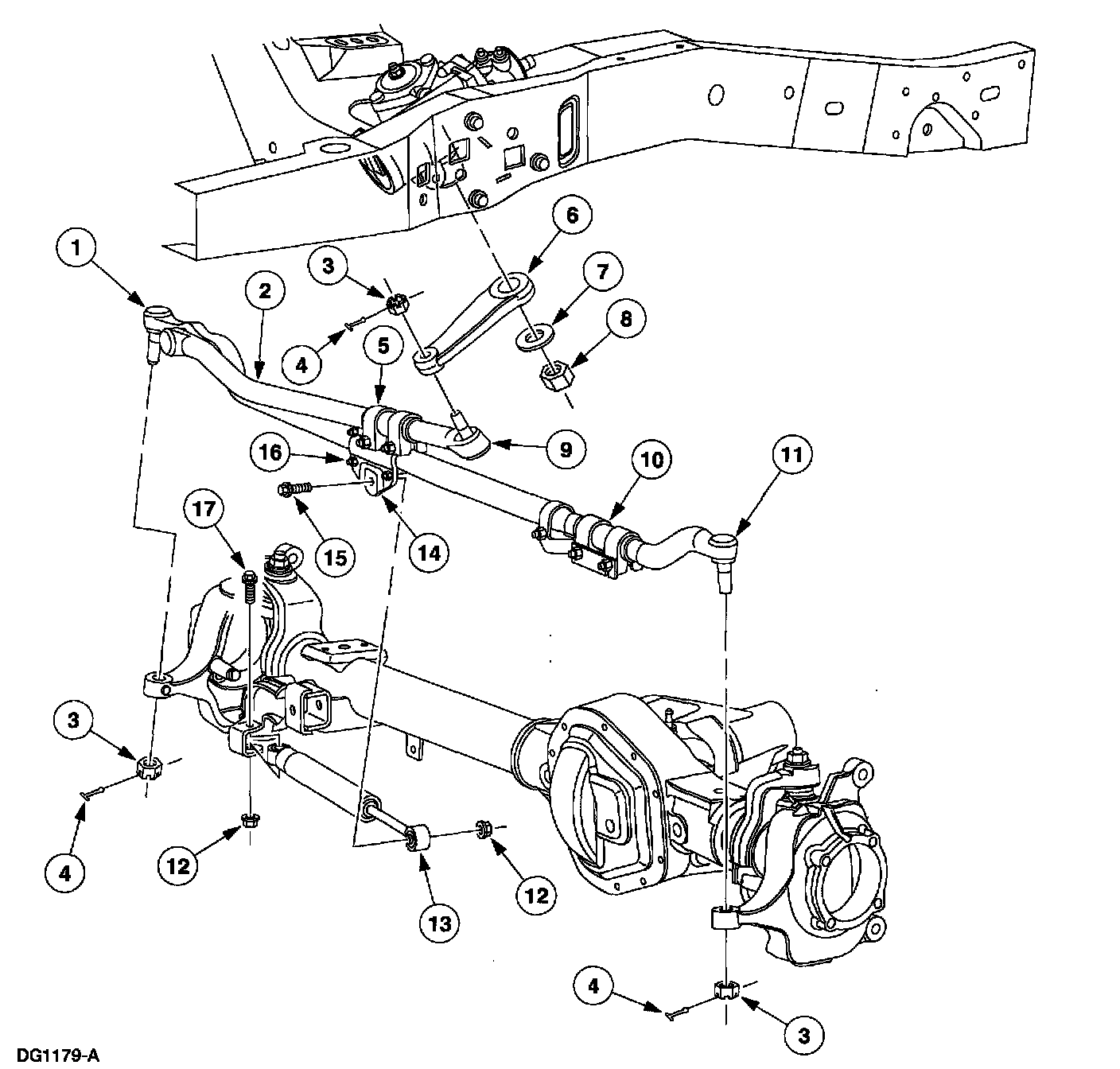

F-250, F-350, 4x4 and Super Duty F-450, F-550
