Pressure, Vacuum and Temperature Specifications

Pressure Charts








Pressure Chart A

NOTE: Actual and Commanded pressures will vary based on calibration and transmission adaptive strategies. All pressures listed are approximate.





Pressure Chart B

NOTE: Actual and Commanded pressures will vary based on calibration and transmission adaptive strategies. All pressures listed are approximate.

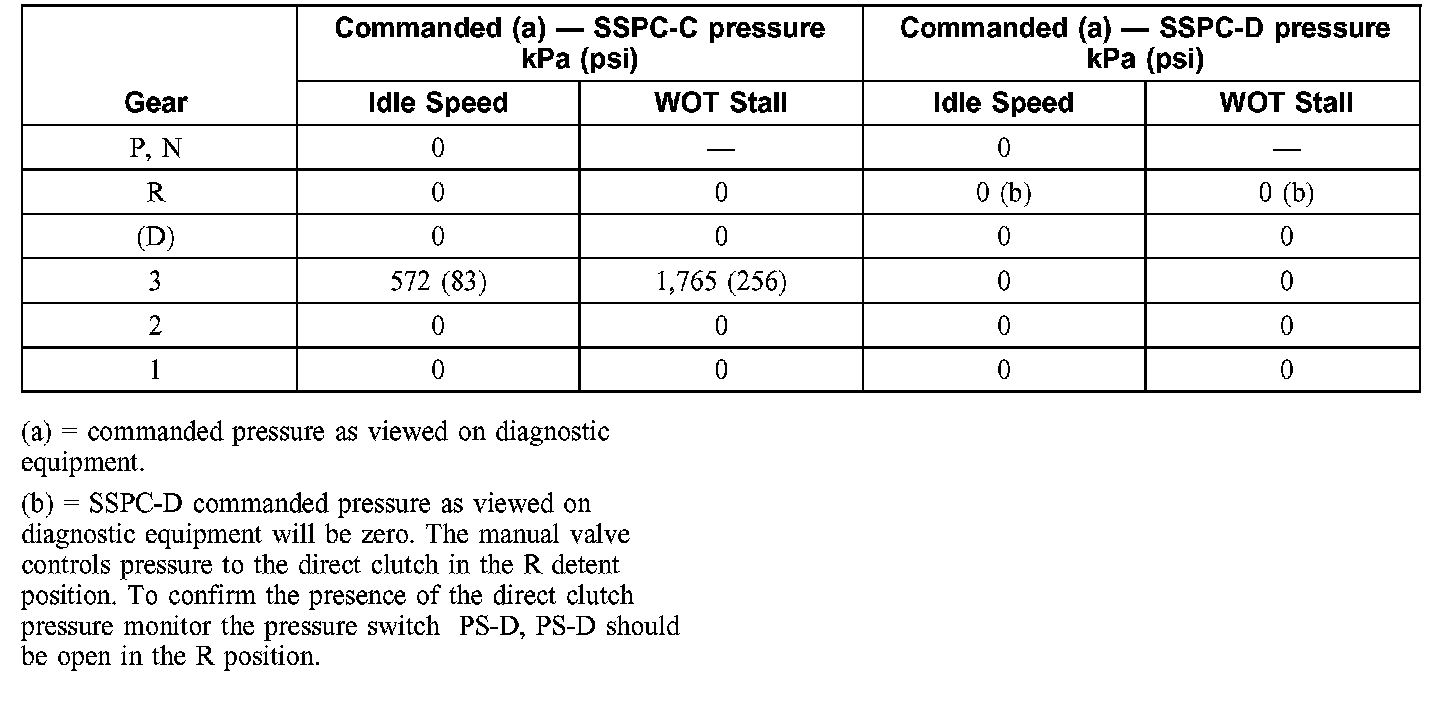

Pressure Chart C

NOTE: Actual and Commanded pressures will vary based on calibration and transmission adaptive strategies. All pressures listed are approximate.





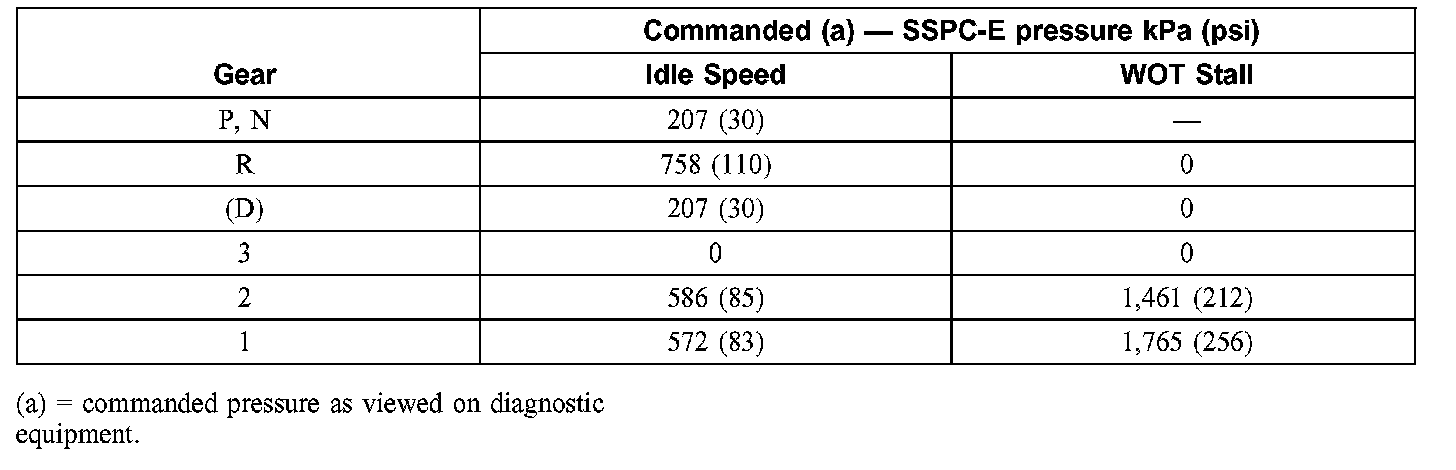

Pressure Chart D

NOTE: Actual and Commanded pressures will vary based on calibration and transmission adaptive strategies. All pressures listed are approximate.
