Housing Assembly HVAC: Service and Repair

PLENUM CHAMBER, ASSEMBLY AND COMPONENTS

REMOVAL
1. Remove the center instrument panel finish panel.
2. Remove the defroster duct.
3. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Service and Repair

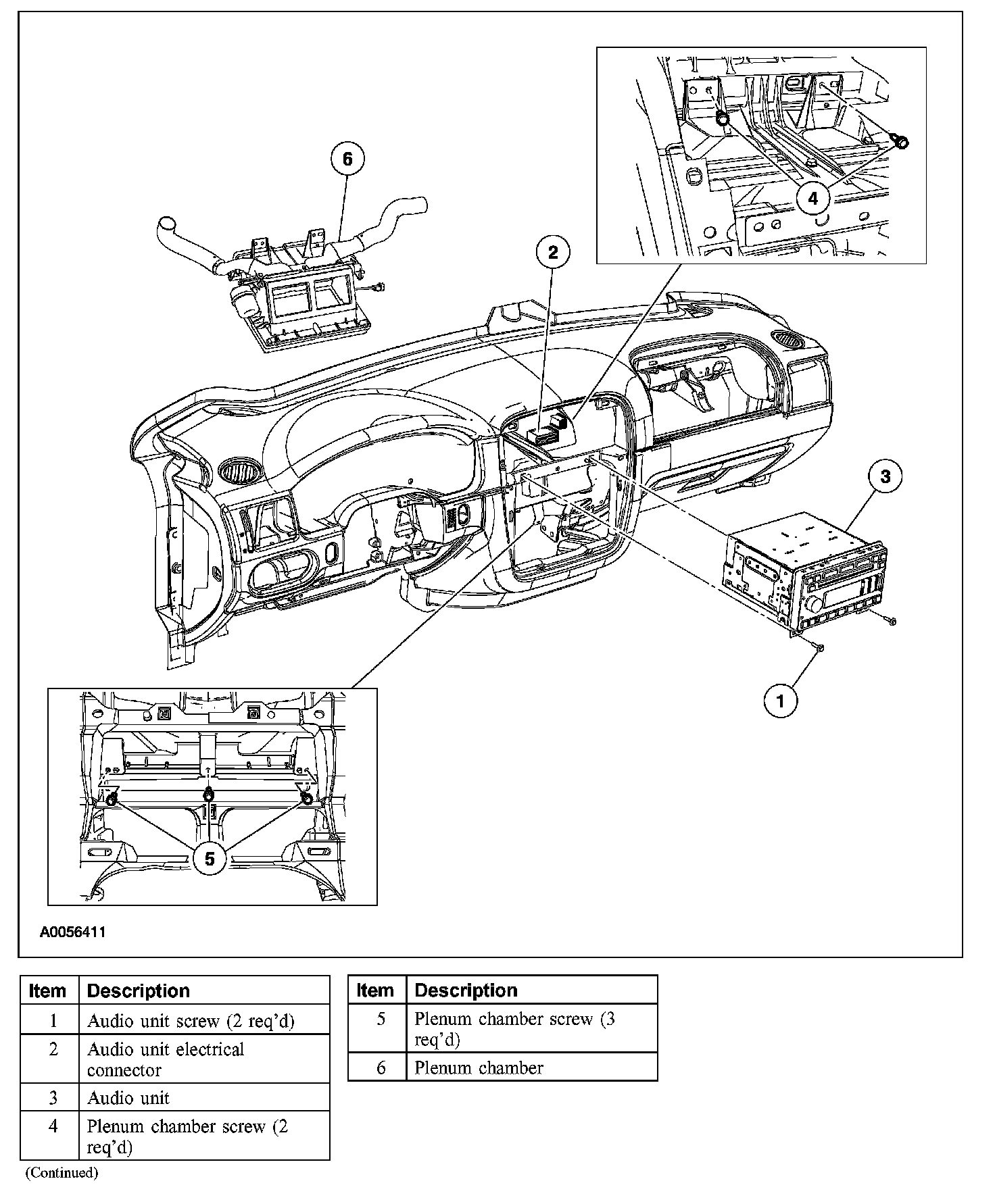

4. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
