High Speed Blower Motor Relay - Manual Climate Control
High Speed Blower Motor Relay - Manual Climate Control

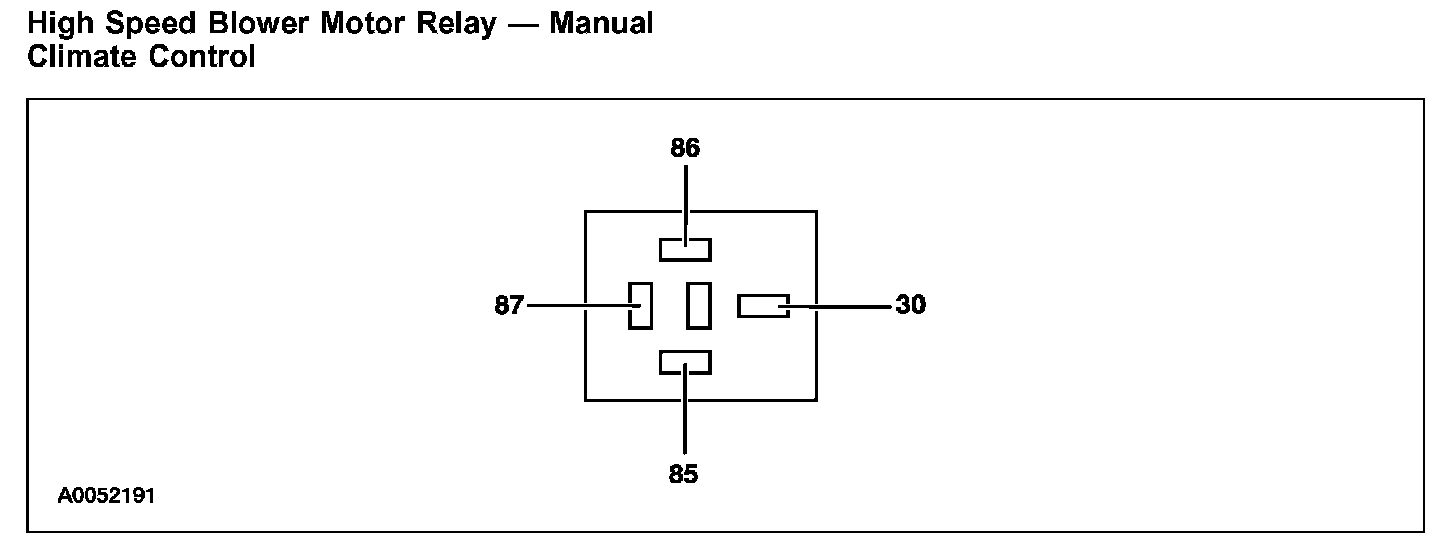

High Speed Blower Motor Relay - Manual Climate Control, Part 1:

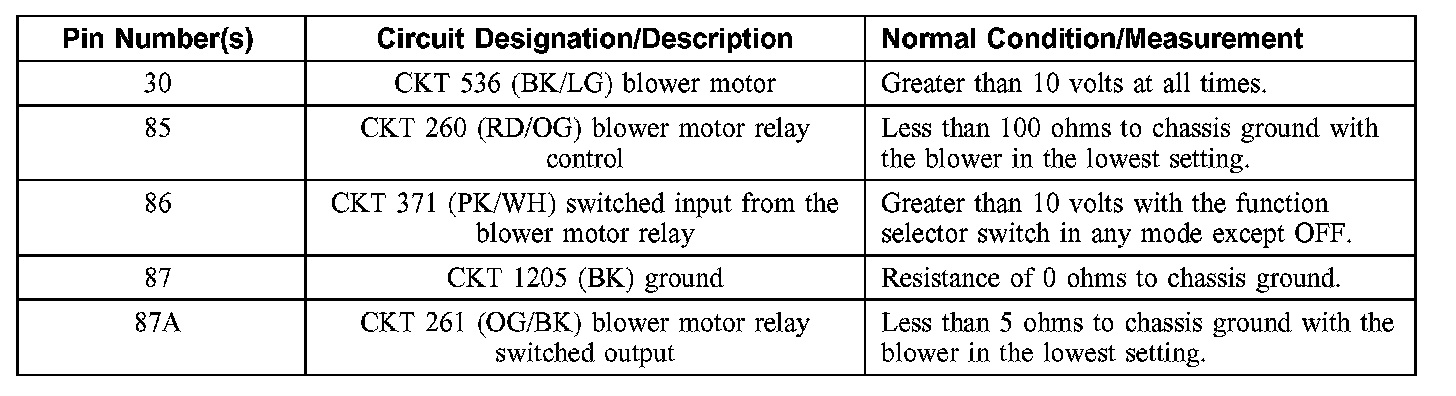

High Speed Blower Motor Relay - Manual Climate Control, Part 2:
