Transmission Range (TR) Sensor Adjustment

Transmission Range (TR) Sensor Adjustment





Special Tool(s)

Adjust
1. With the vehicle in the NEUTRAL, position it on a hoist





2. Move the rubber boot back to gain access to the connector.

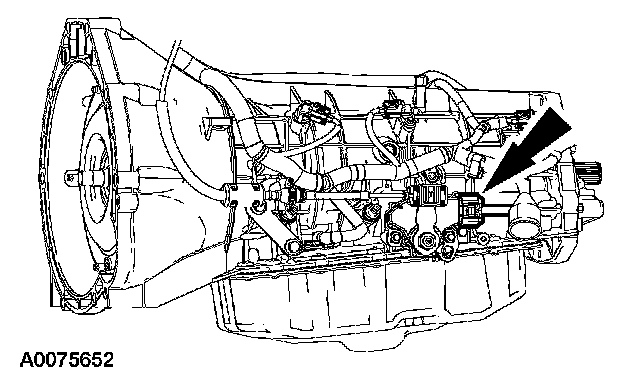

3. Disconnect the digital TR sensor connector.

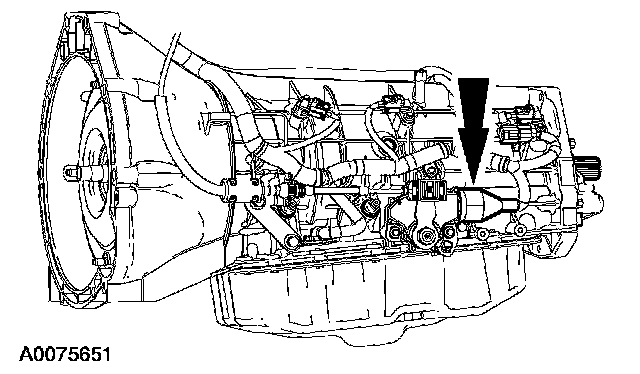

4. Remove the range selector lever cable end from the manual control lever.

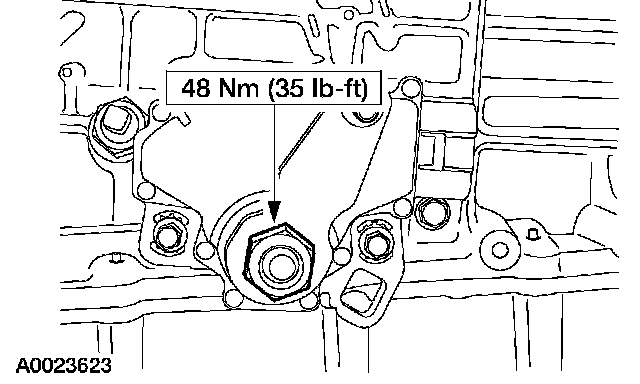

5. Remove the outer manual control lever.

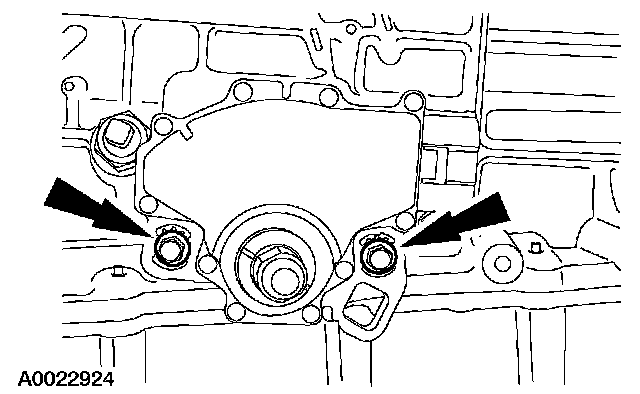

6. Loosen but do not remove the digital TR sensor screws.

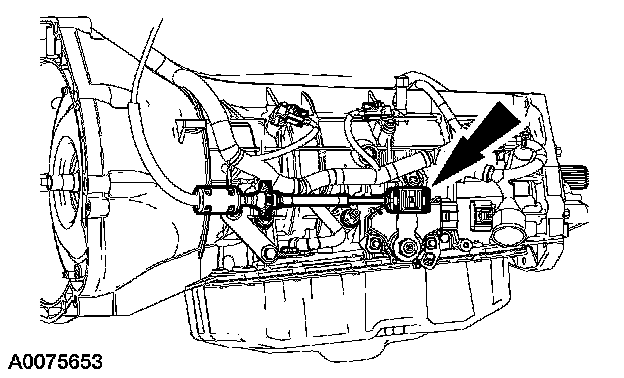

7. Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.





8. Install the outer manual lever.





9. Install the range selector lever cable end onto the manual control lever.

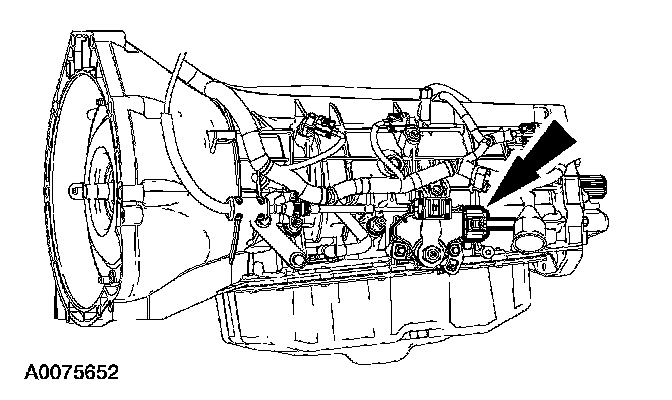

10. Reconnect the digital TR sensor electrical connector.





11. Move the rubber boot back over the connector.
12. Verify that the range selector lever cable is adjusted correctly.
13. Verify that the vehicle will start in PARK and NEUTRAL, and that the reverse lamps illuminate in REVERSE.
