Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION

1. Verify the customer concern by operating the audio system and the video cassette player (VCP) with the engine running and the vehicle in and out of motion.

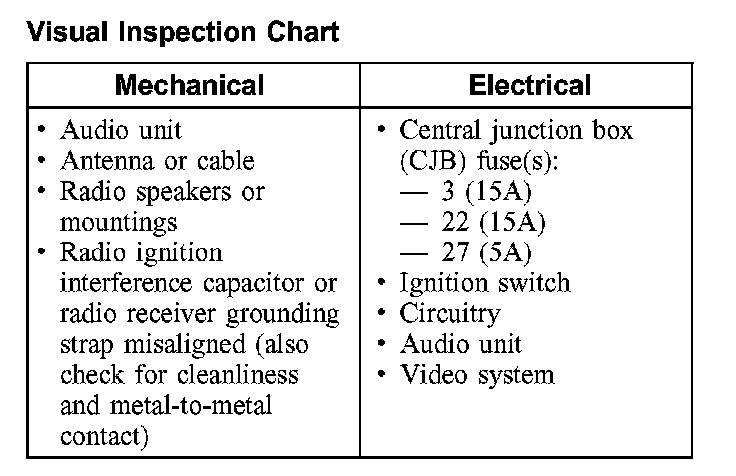

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the fault is not visually evident, proceed to the speaker walk-around test and the DM100i and CDX6 Self-Diagnostic Mode. Reading and Clearing Diagnostic Trouble Codes
