Test D: DTC's C1148' C1158'and C1229 Wheel Speed Sensor Coherency Fault

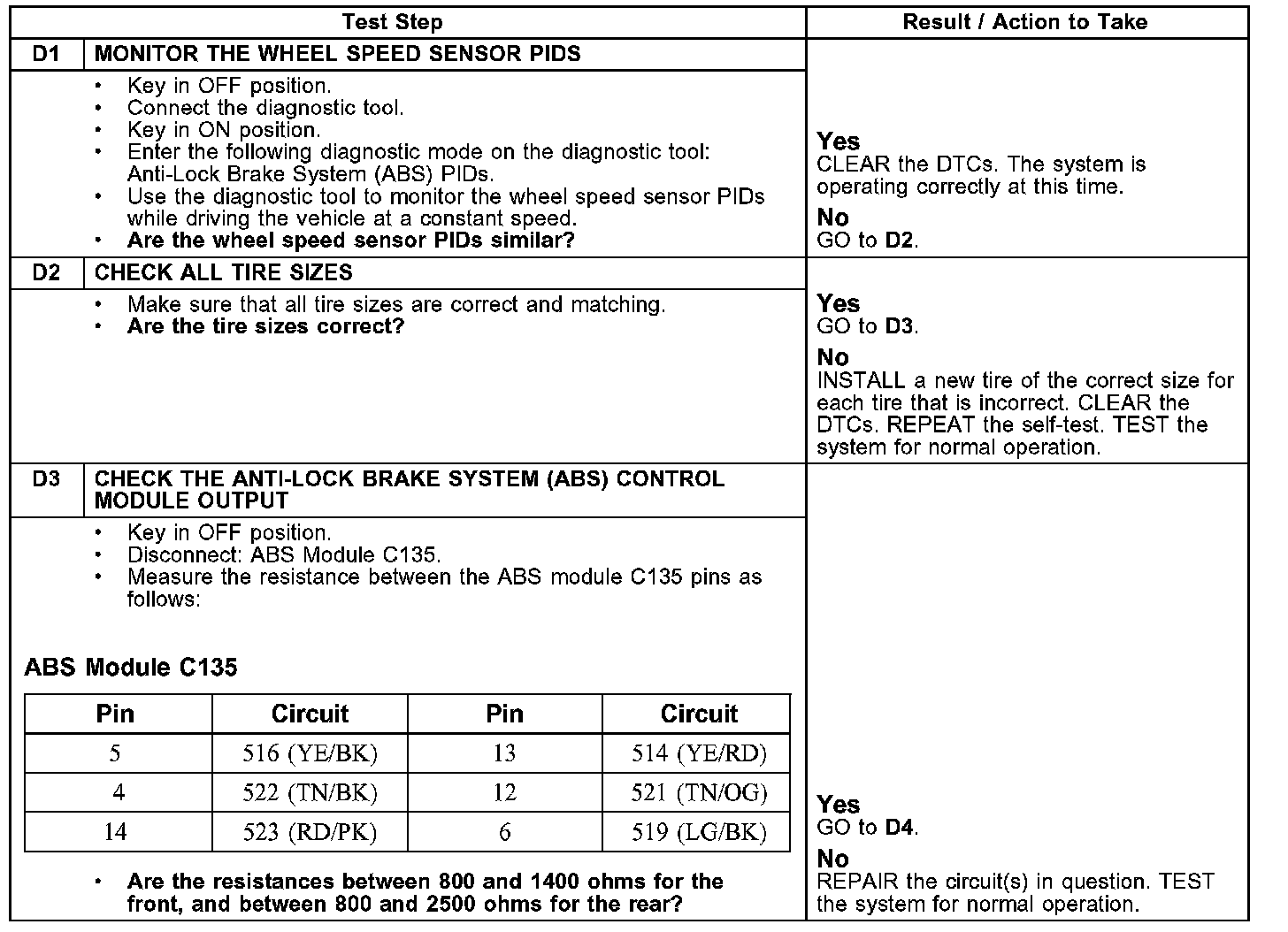

Test D1-D3:

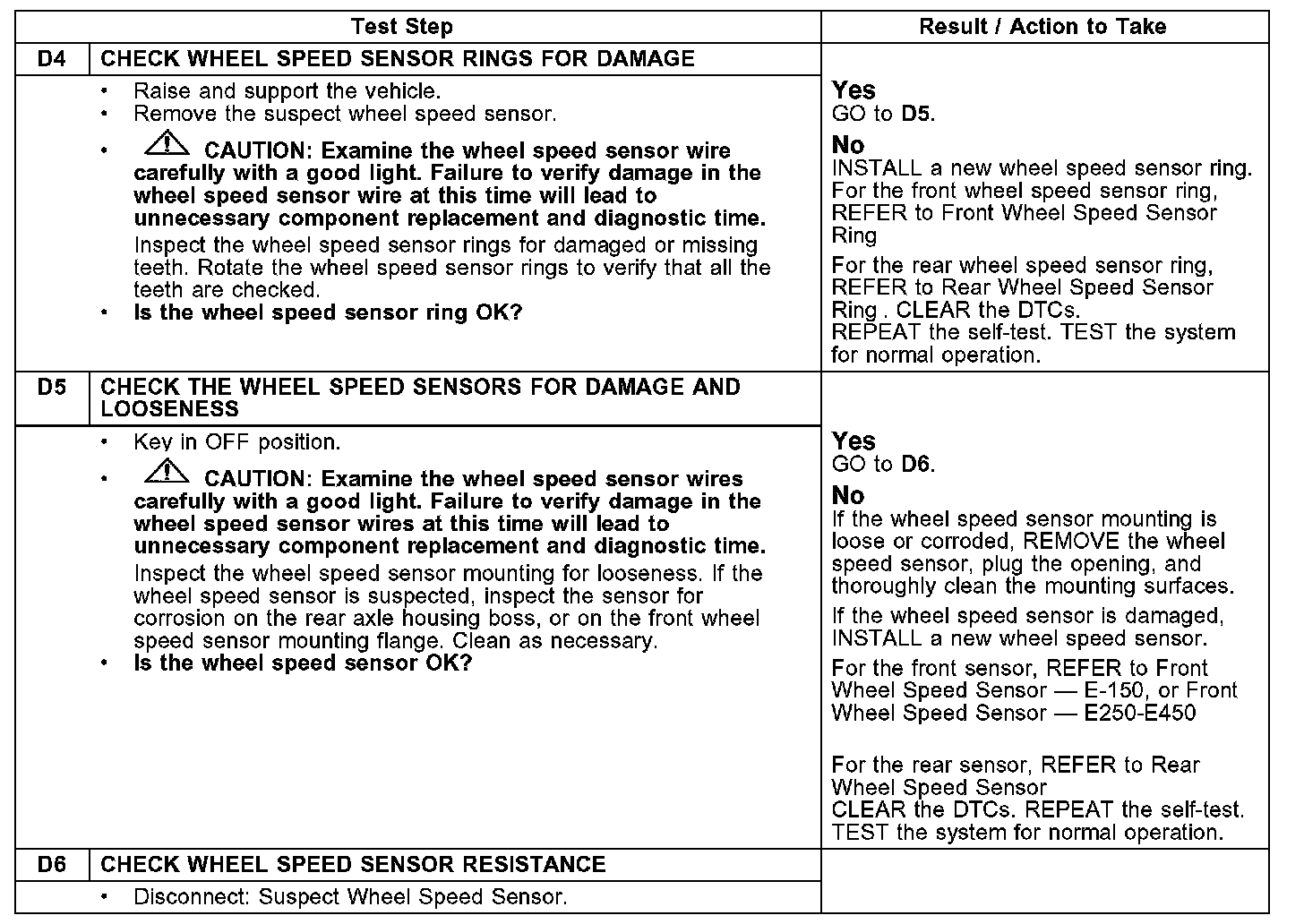

Test D4-D6:

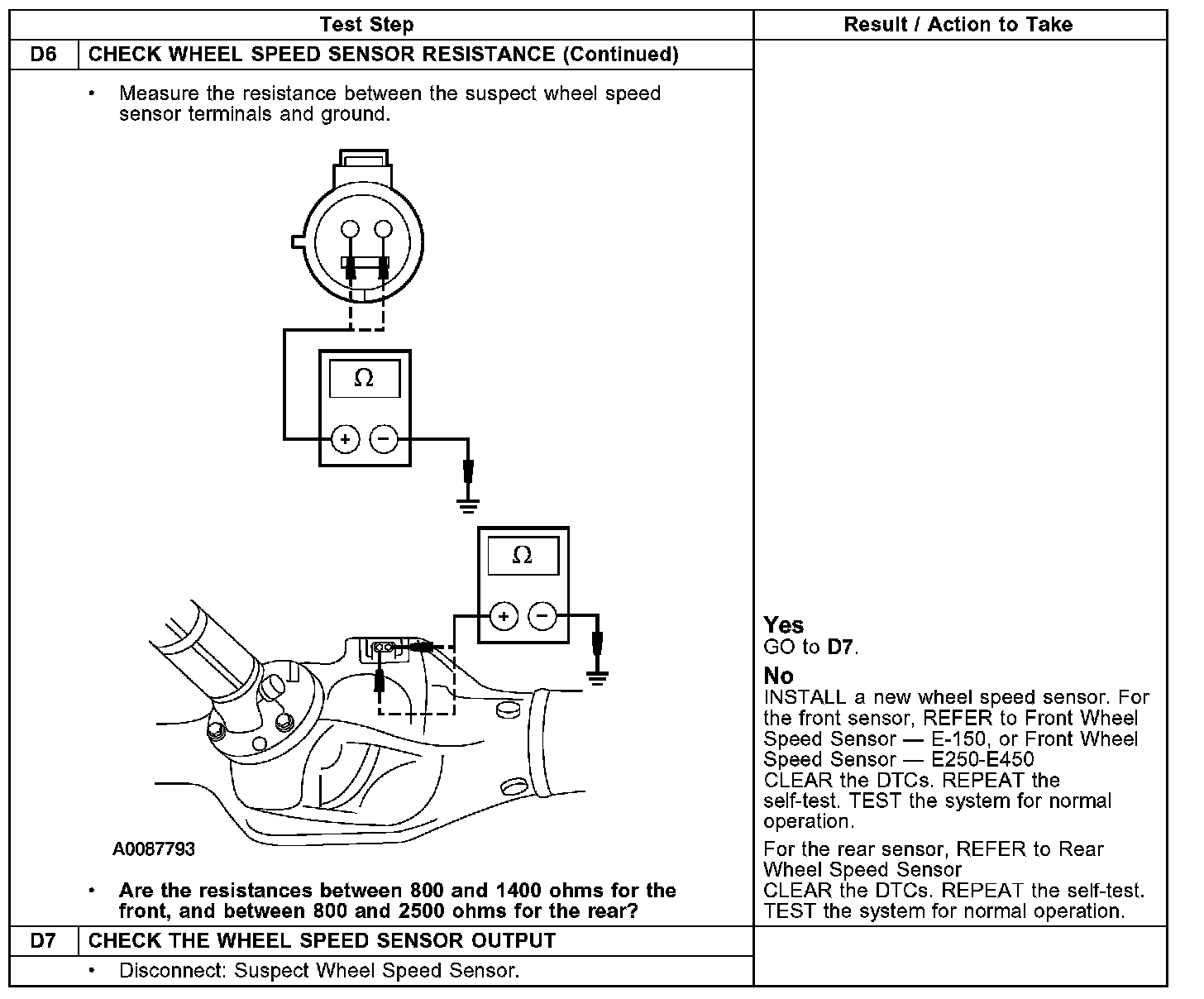

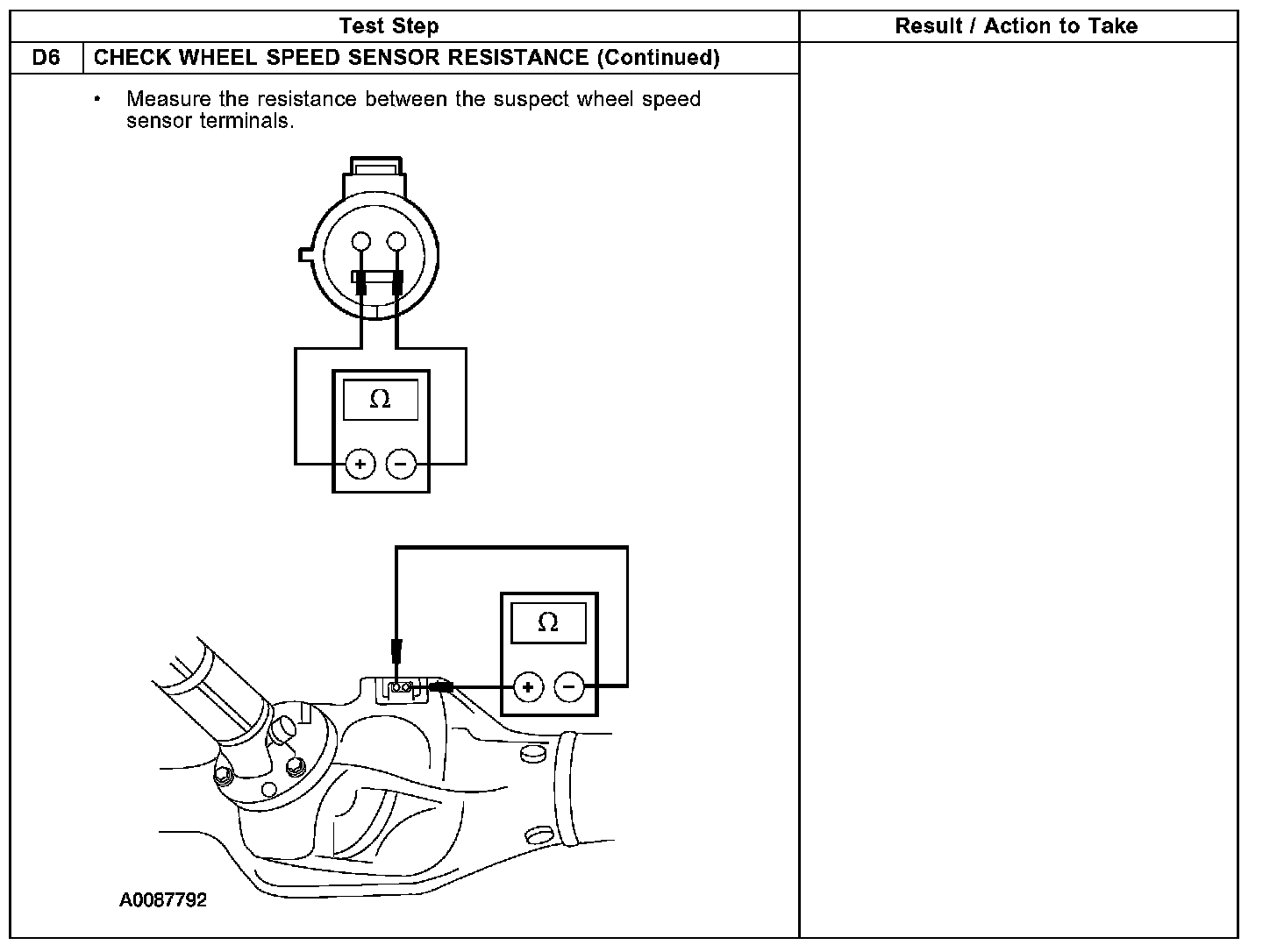

Test D6:

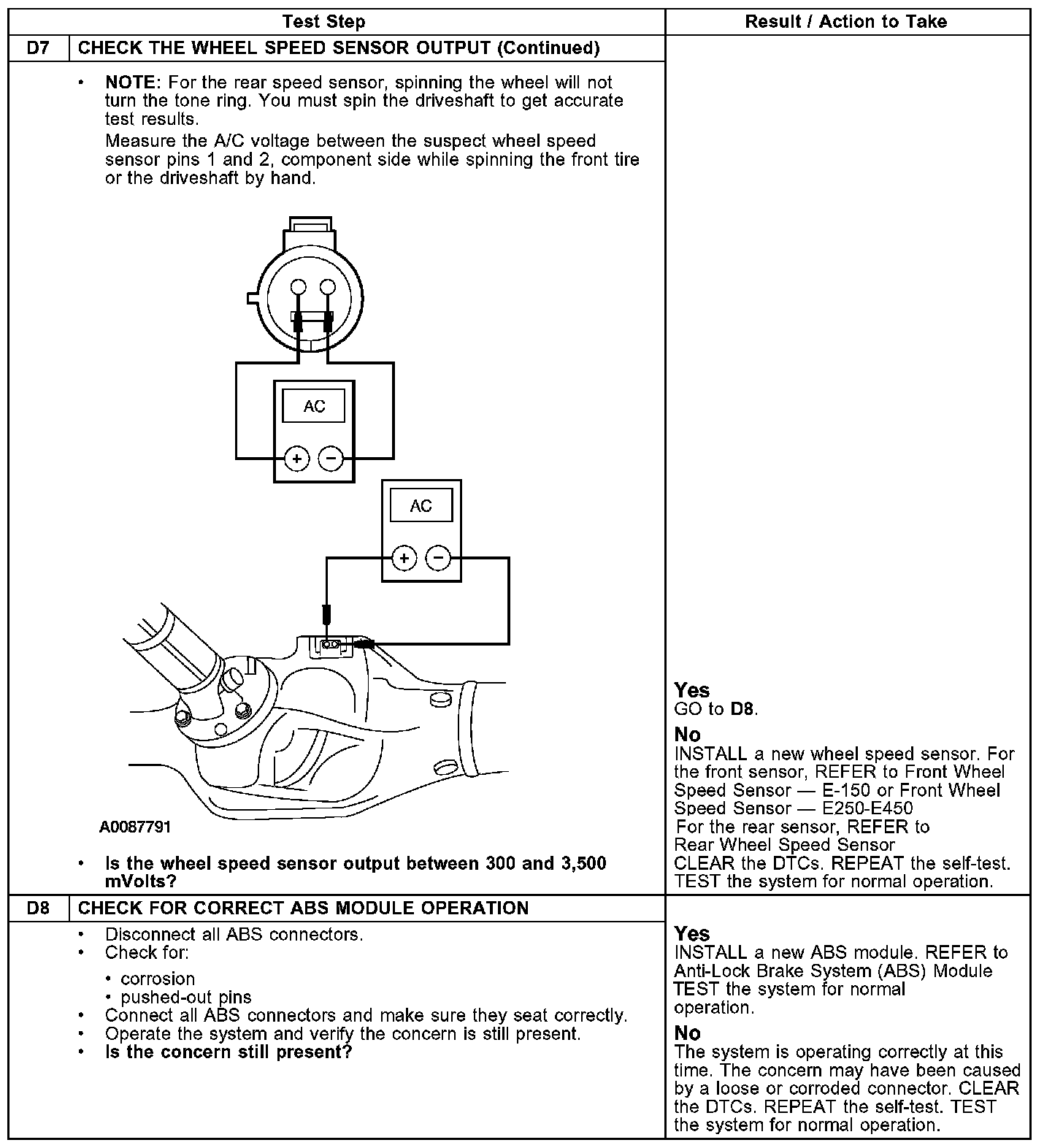

Test D6-D7:




Test D7-D8:





PINPOINT TEST D: DTC's C1148' C1158'AND C1229 WHEEL SPEED SENSOR COHERENCY FAULT
