Test F: DTC C1185-Anti-Lock Brake System (ABS) Power Relay Output Circuit Failure

PINPOINT TEST F: DTC C1185-ANTI-LOCK BRAKE SYSTEM (ABS) POWER RELAY OUTPUT CIRCUIT FAILURE

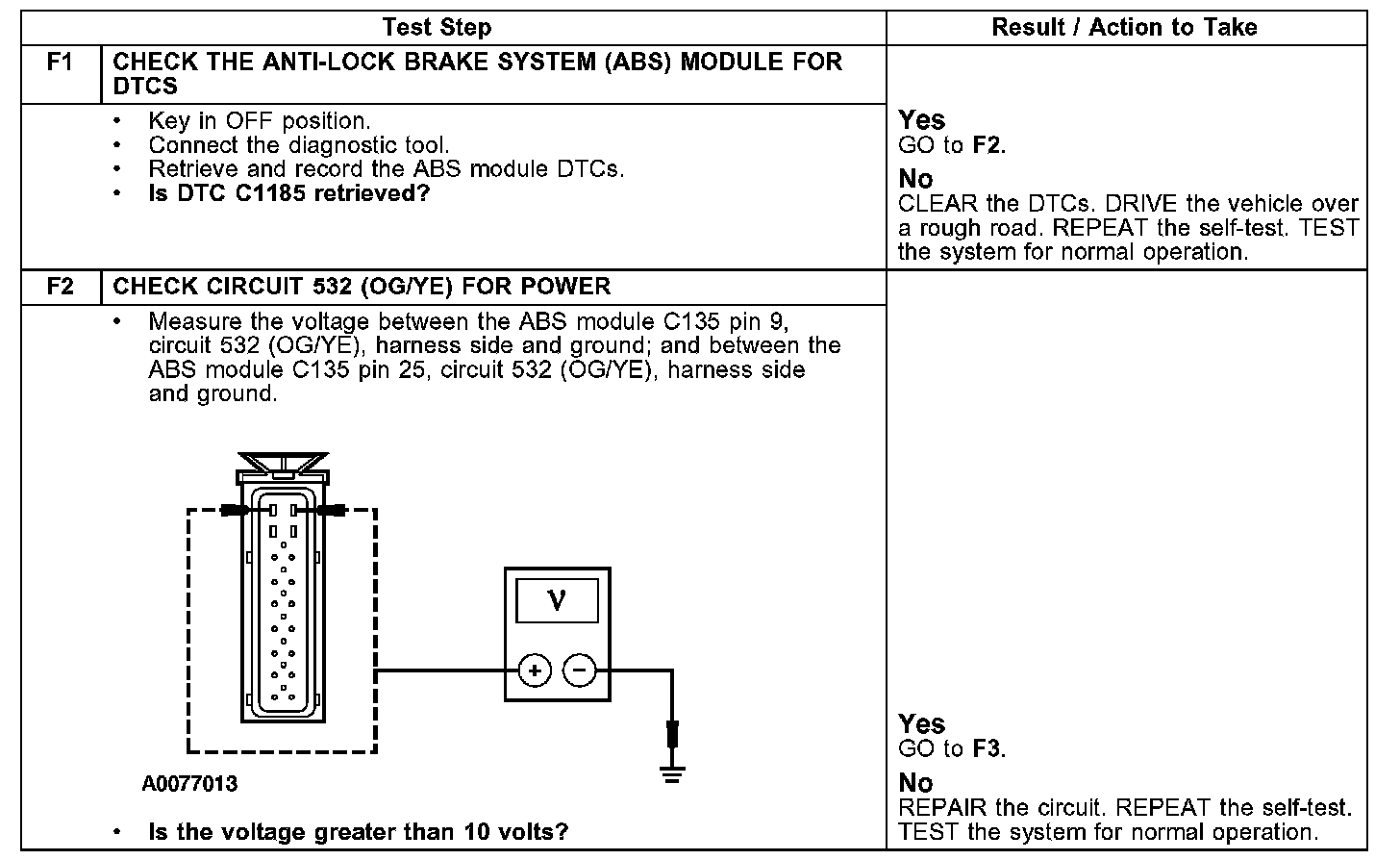

Test F1-F2:

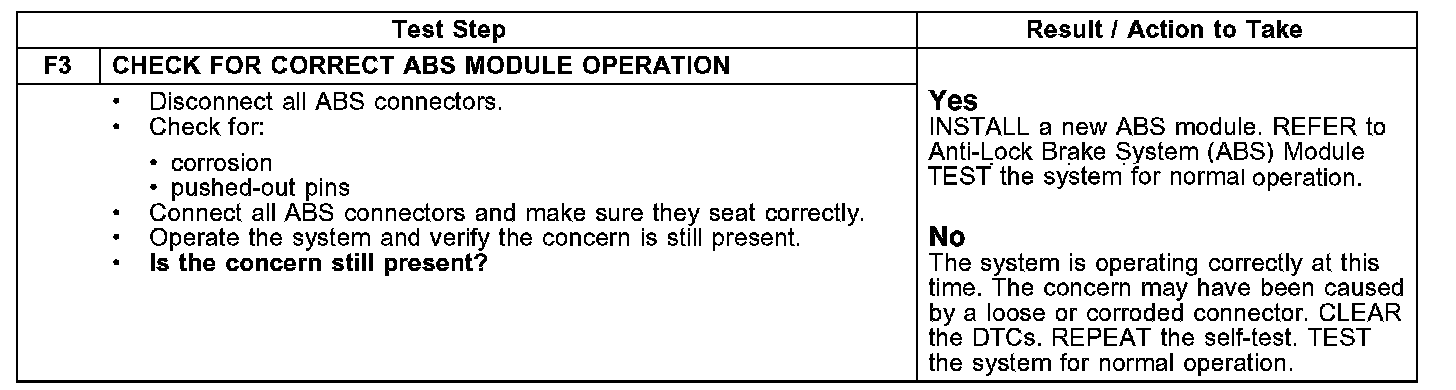

Test F3:

NOTE: Repair all other DTC's before proceeding.
