Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

16-Ba:

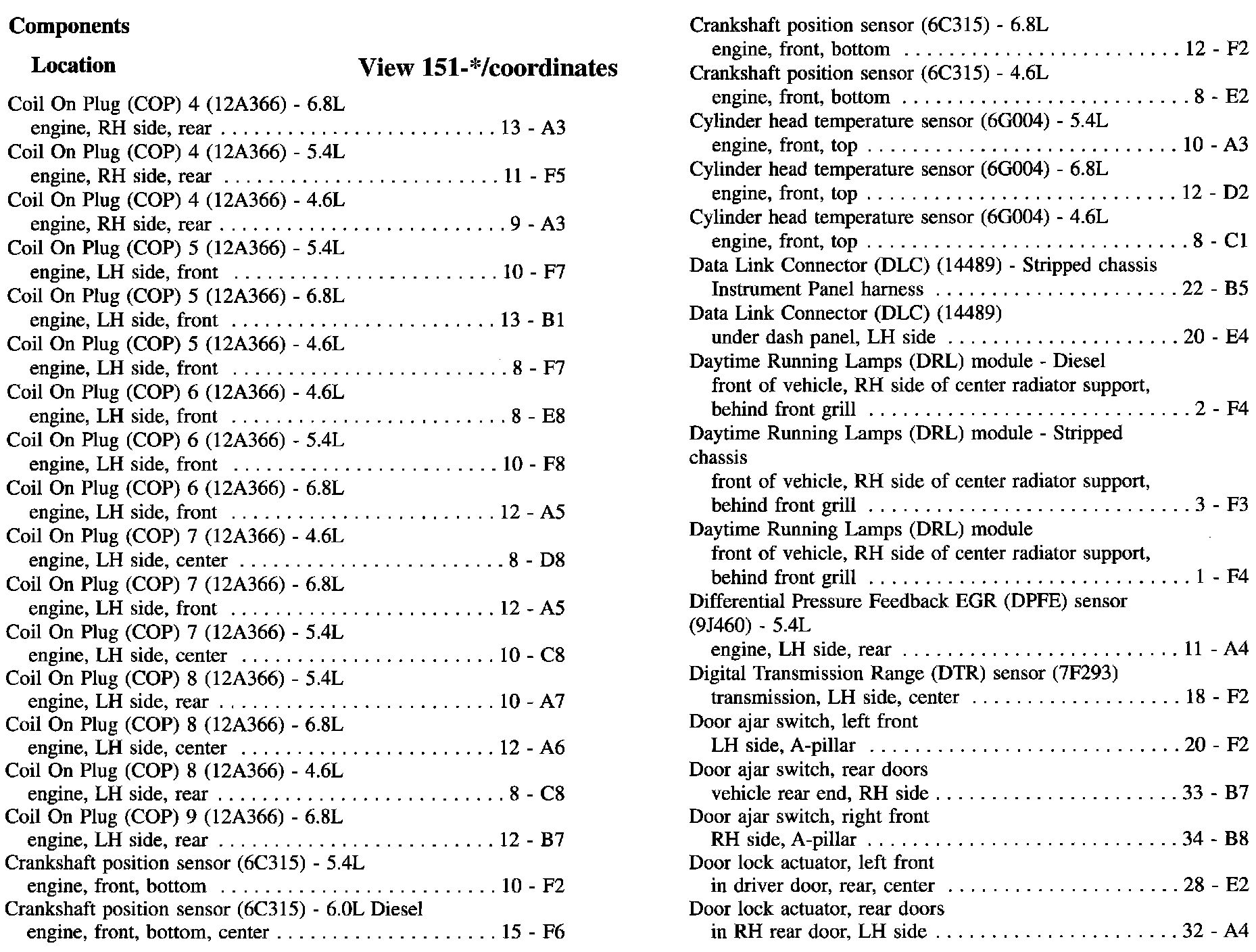

Ba-Co:

Co-Do:

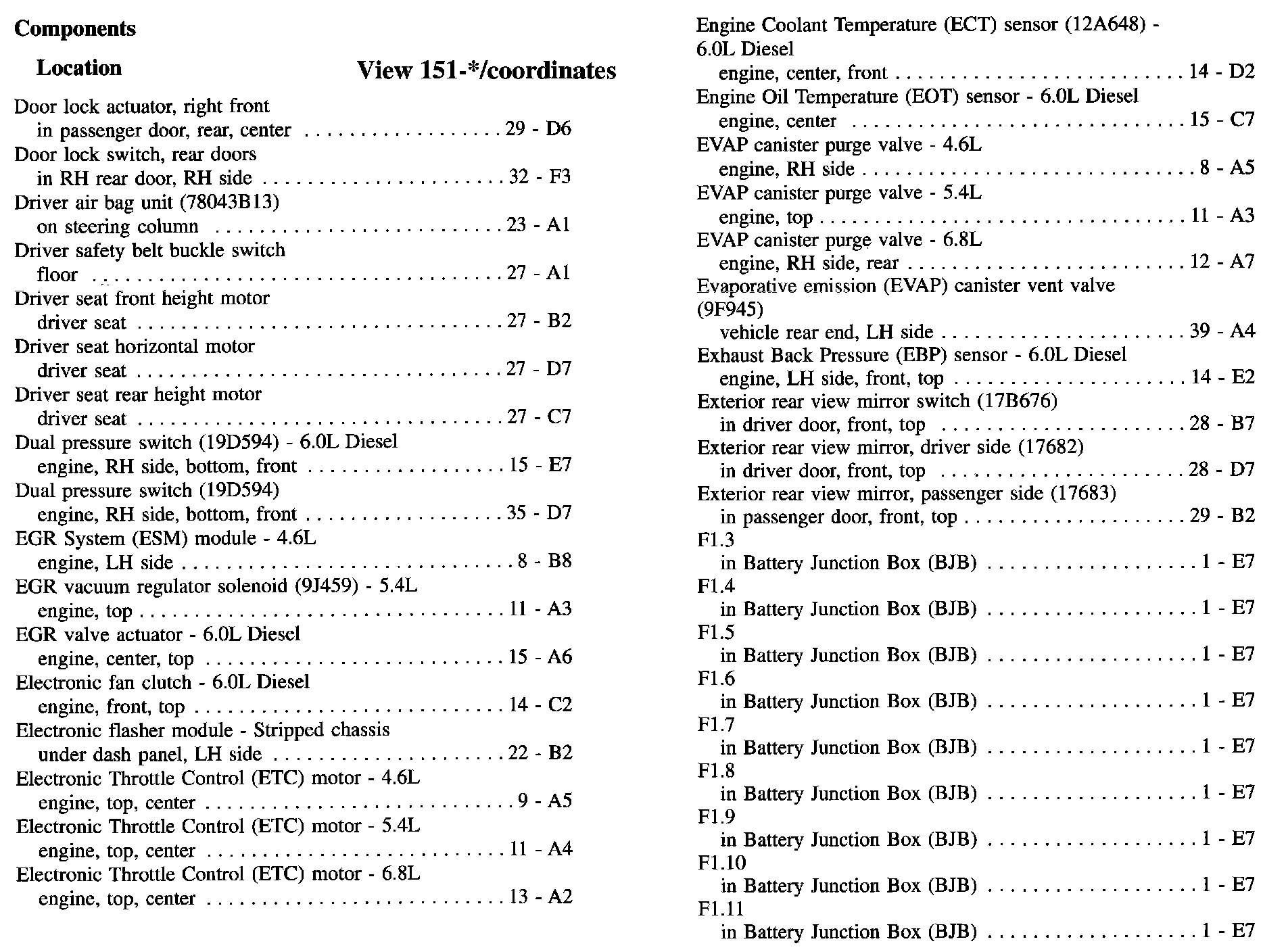

Do-F1.11:

F1.12-F2.21:

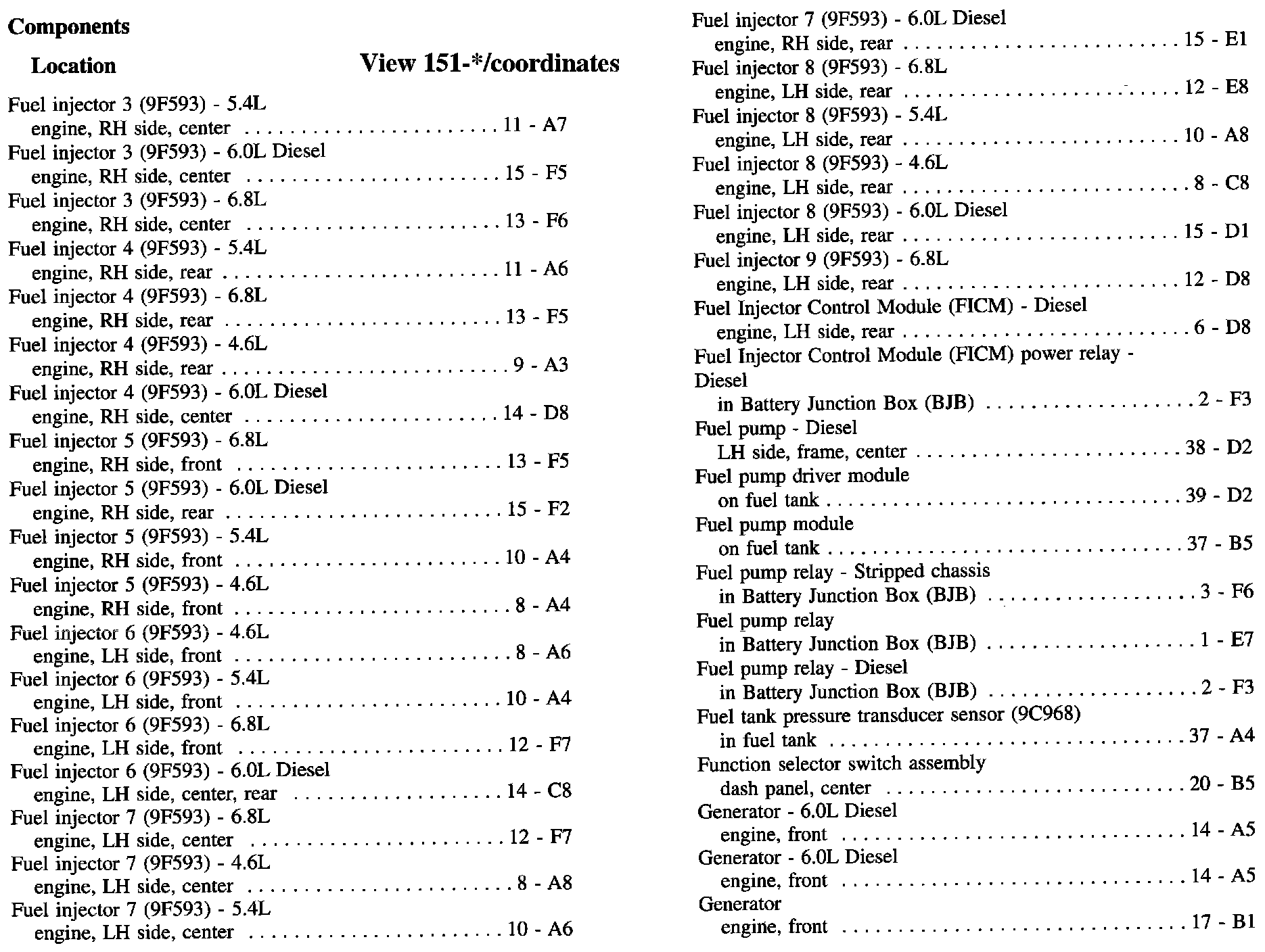

F2.22-Fu:

Fu-Ge:

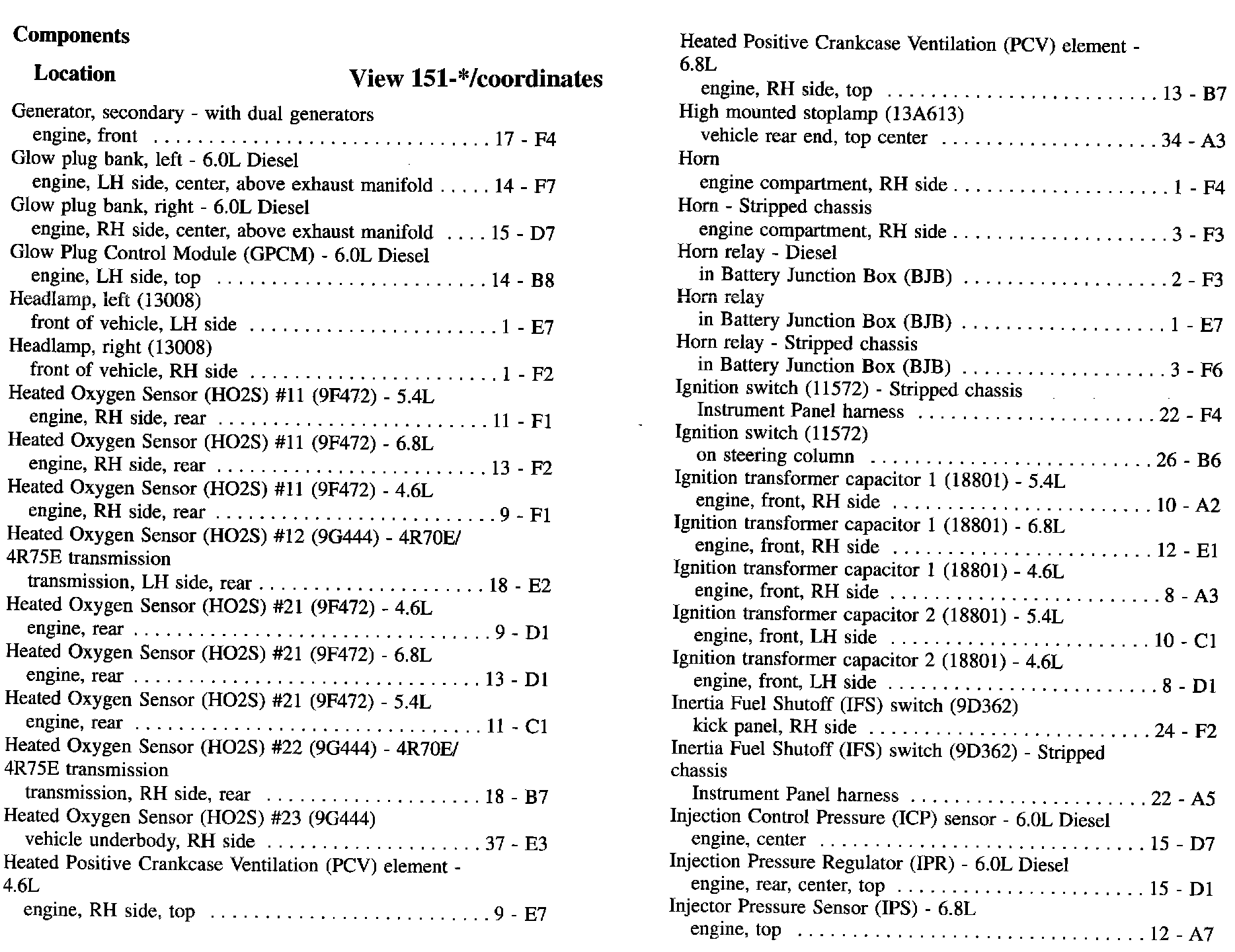

Ge-In:

In-Pa:

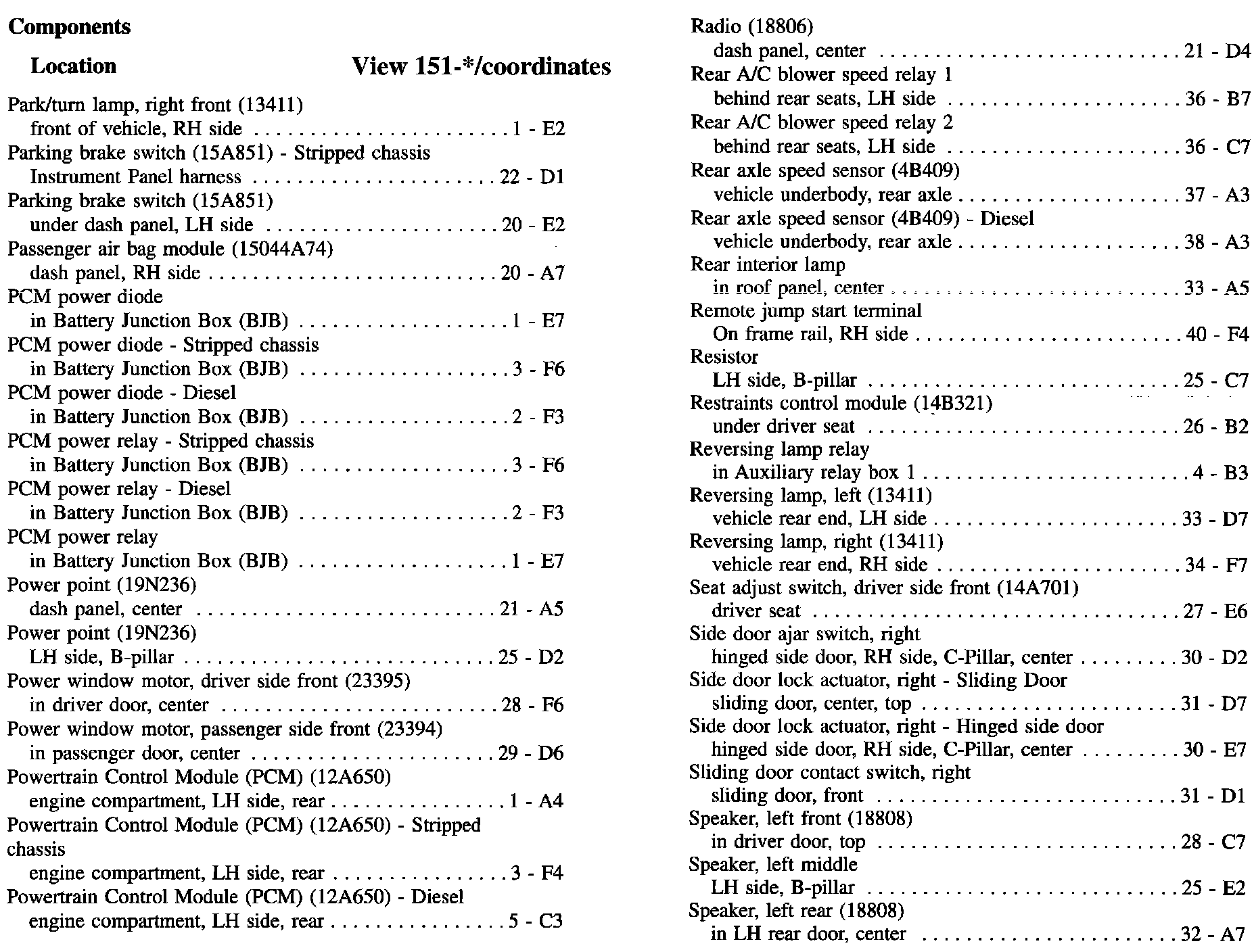

Pa-Sp:

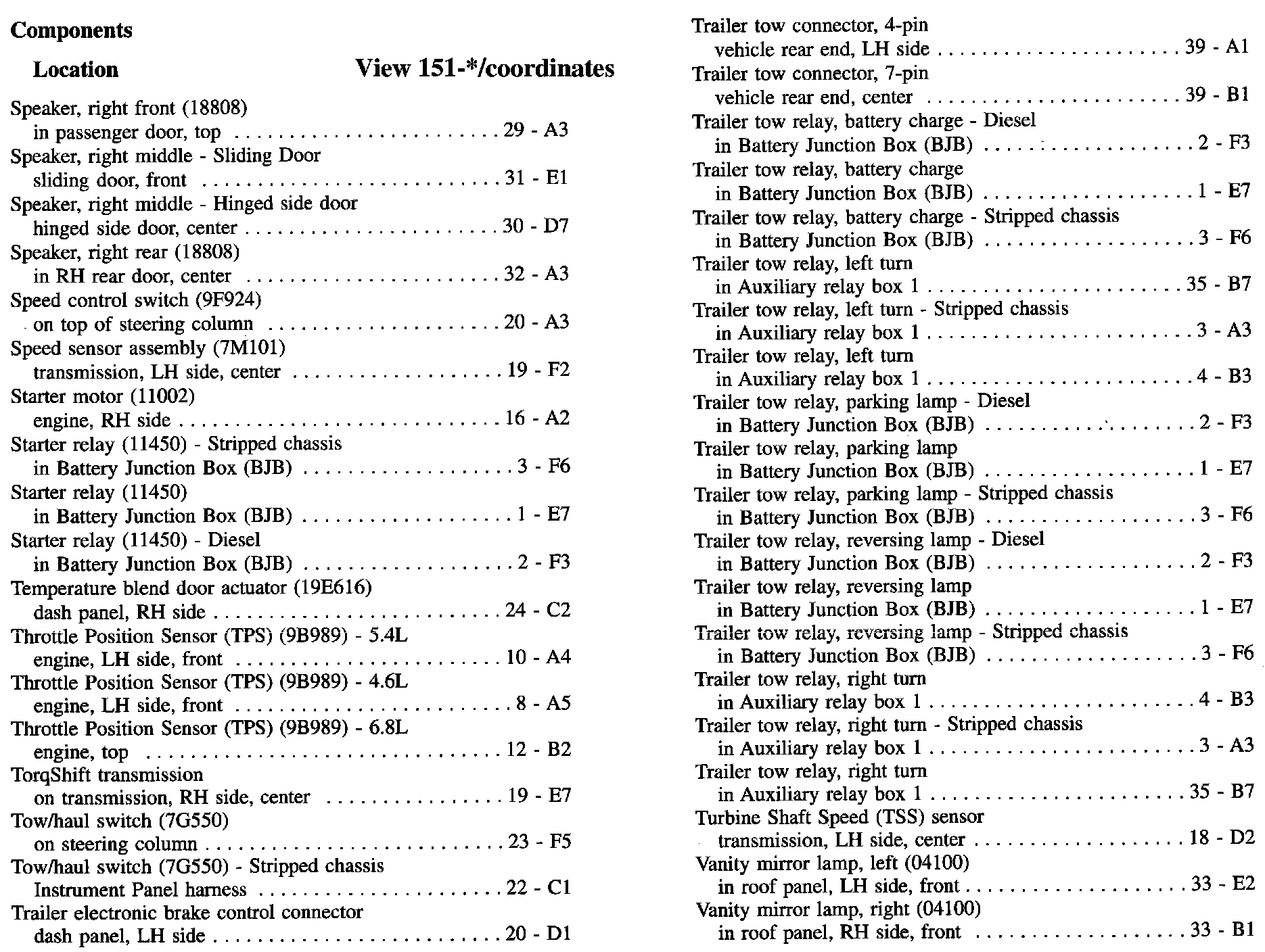

Sp-Va:

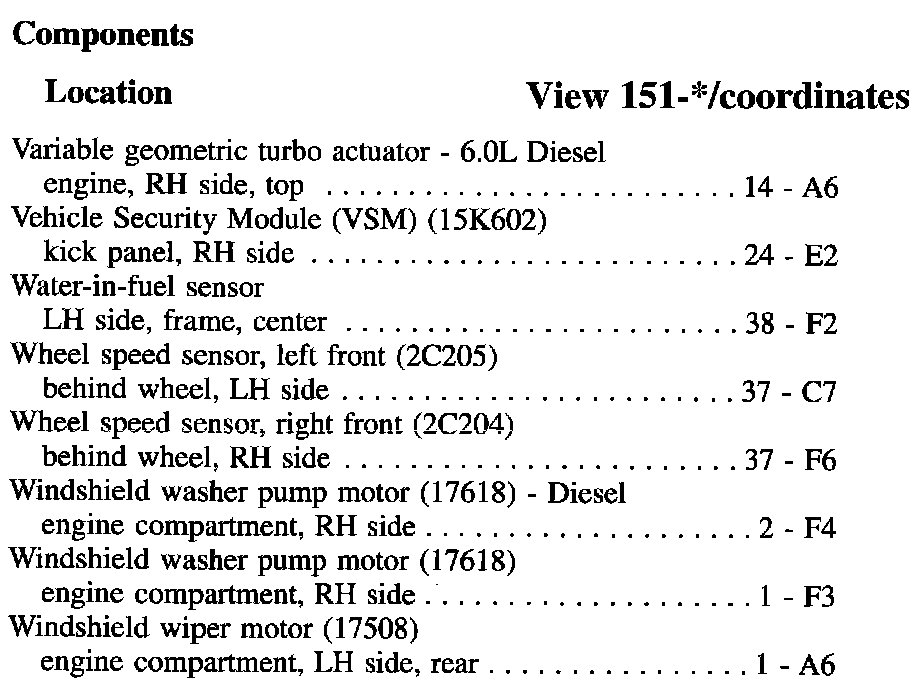

Va-Wi:
