Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2005
>>
E 350 V8-6.0L DSL Turbo VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor Clutch Relay
Compressor Clutch Relay

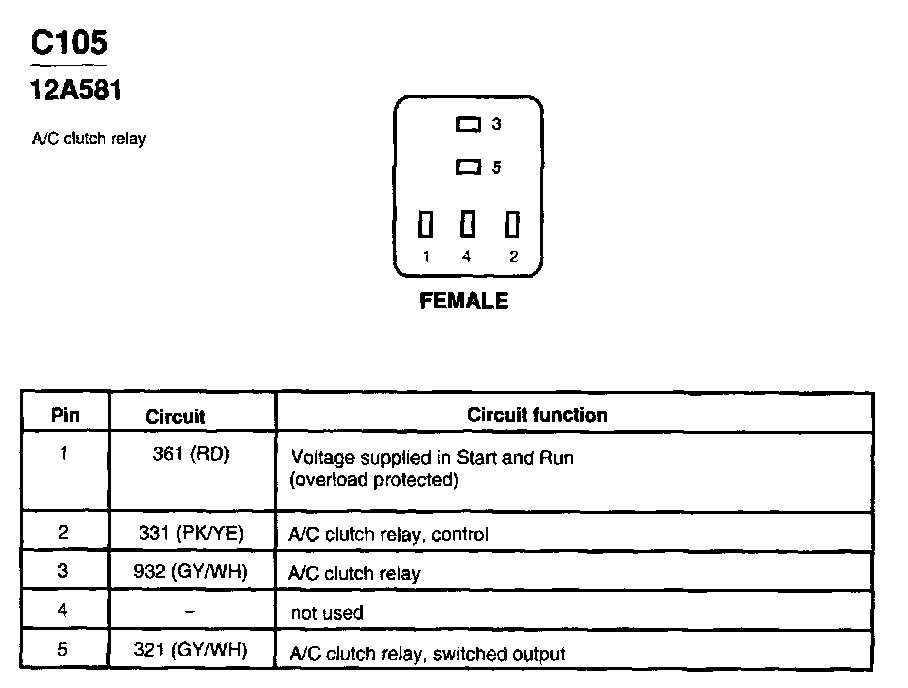

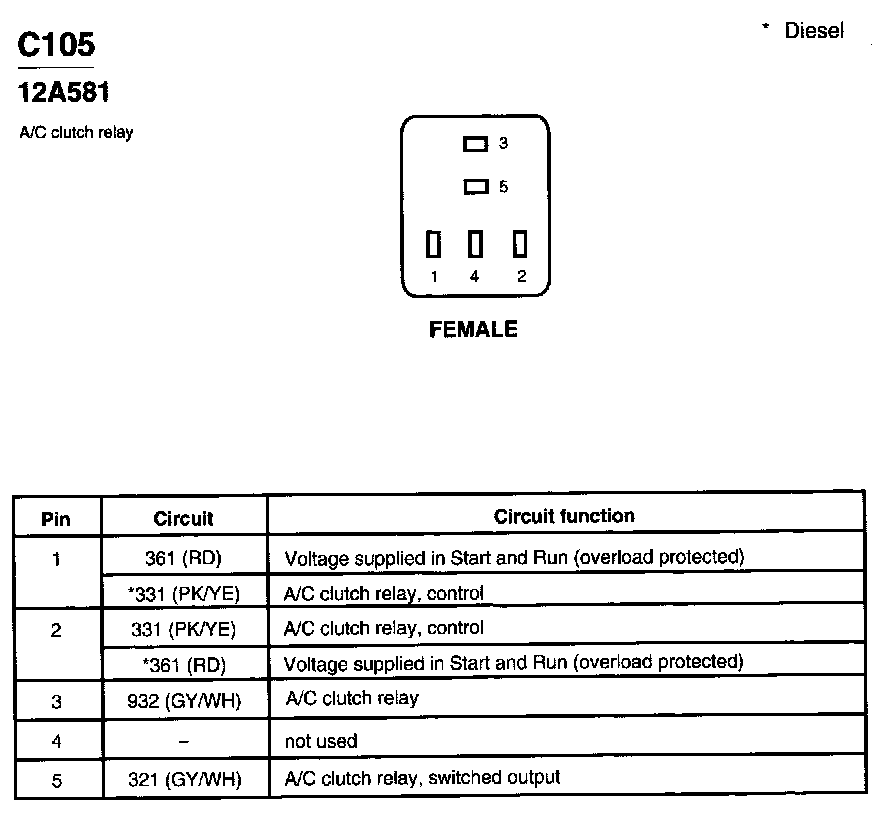

C105:

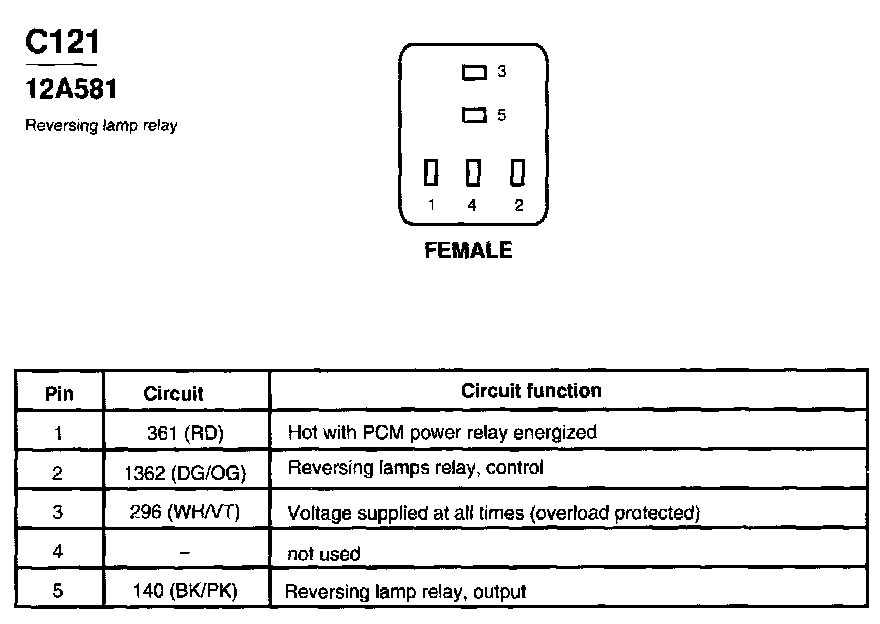

C121:

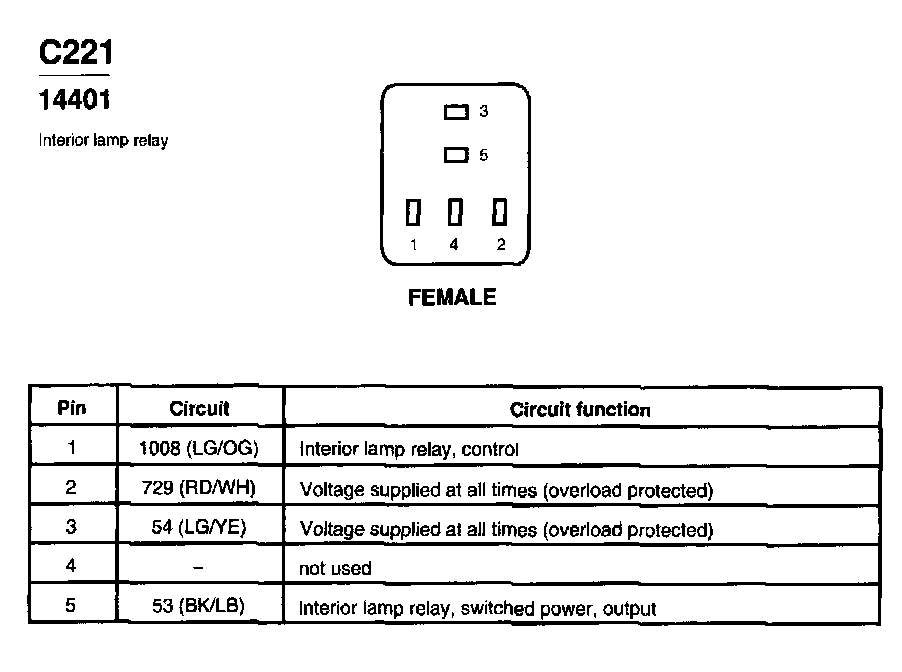

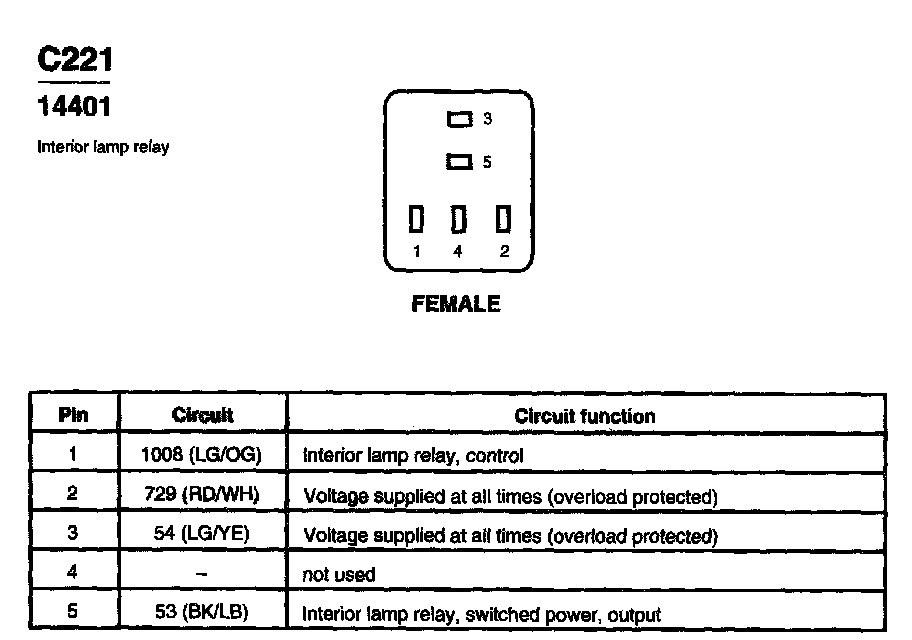

C221:

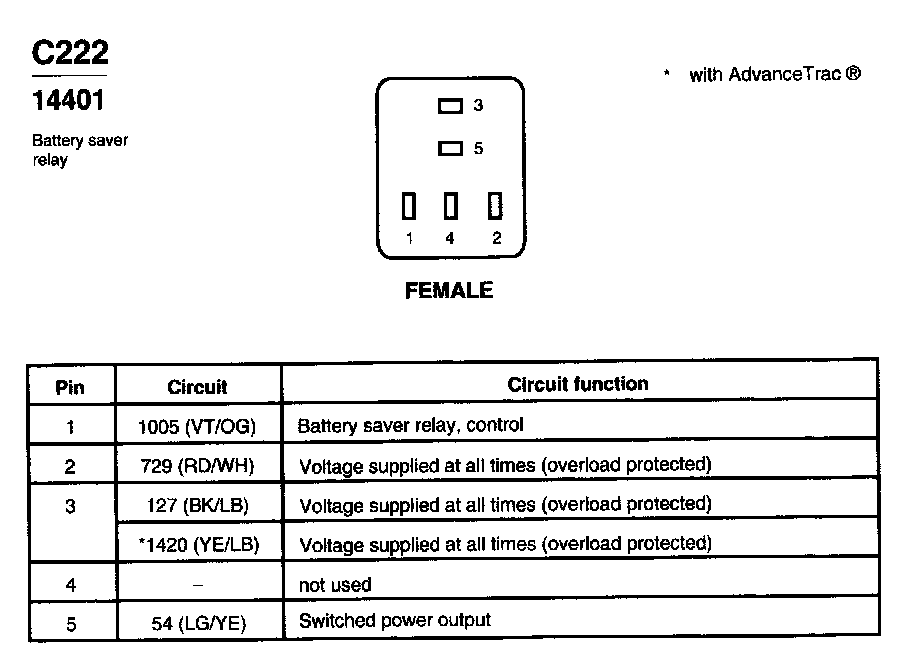

C222:
