Front Disc Brake

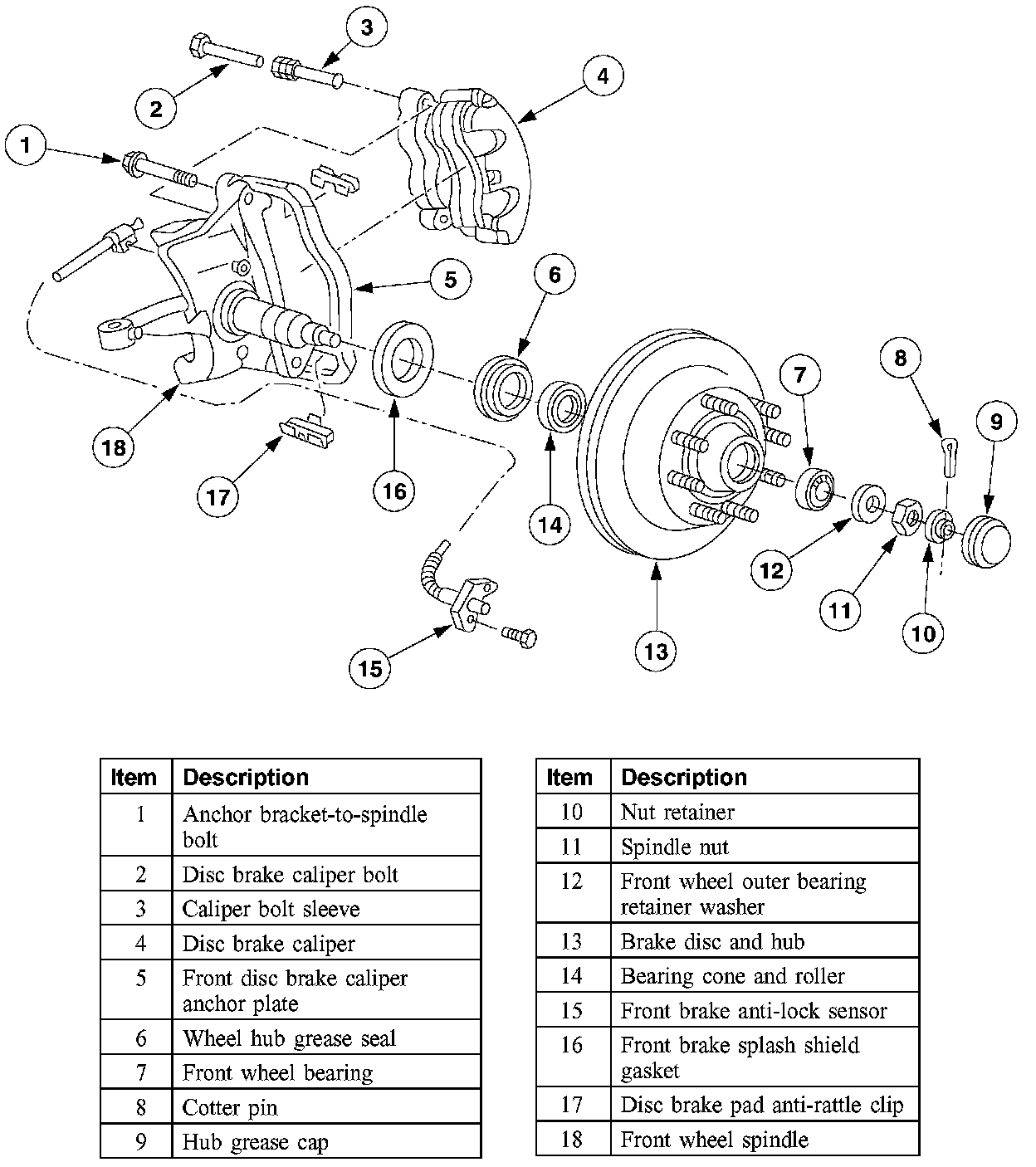

Front Disc Brake Components-E-150

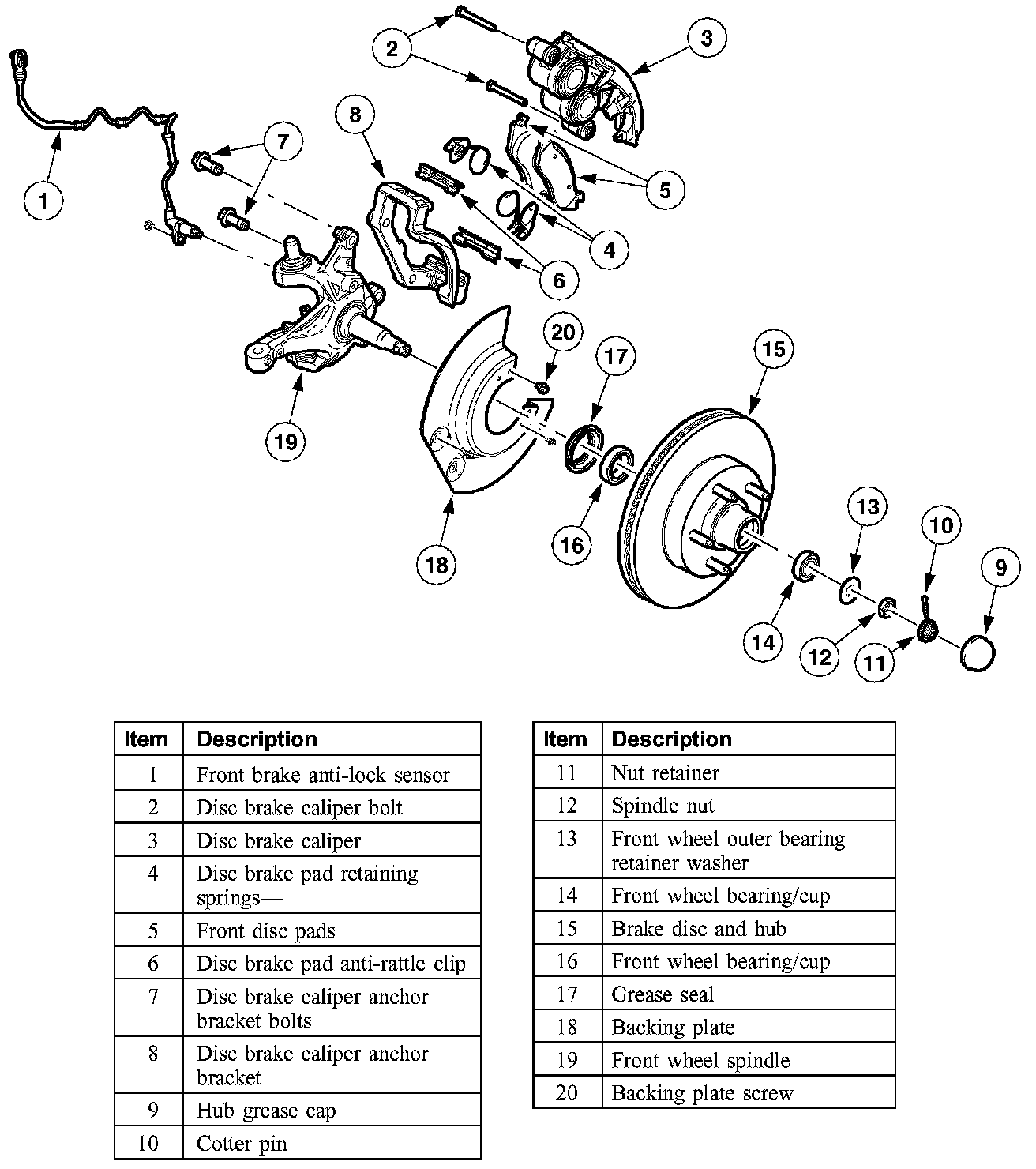

Front Disc Brake Components-E250, E350, Single Rear Wheel





Front Disc Brake Components-E350, E450, Dual Rear Wheel
