Disc Brake System
>>
Rear Disc Brake
Rear Disc Brake

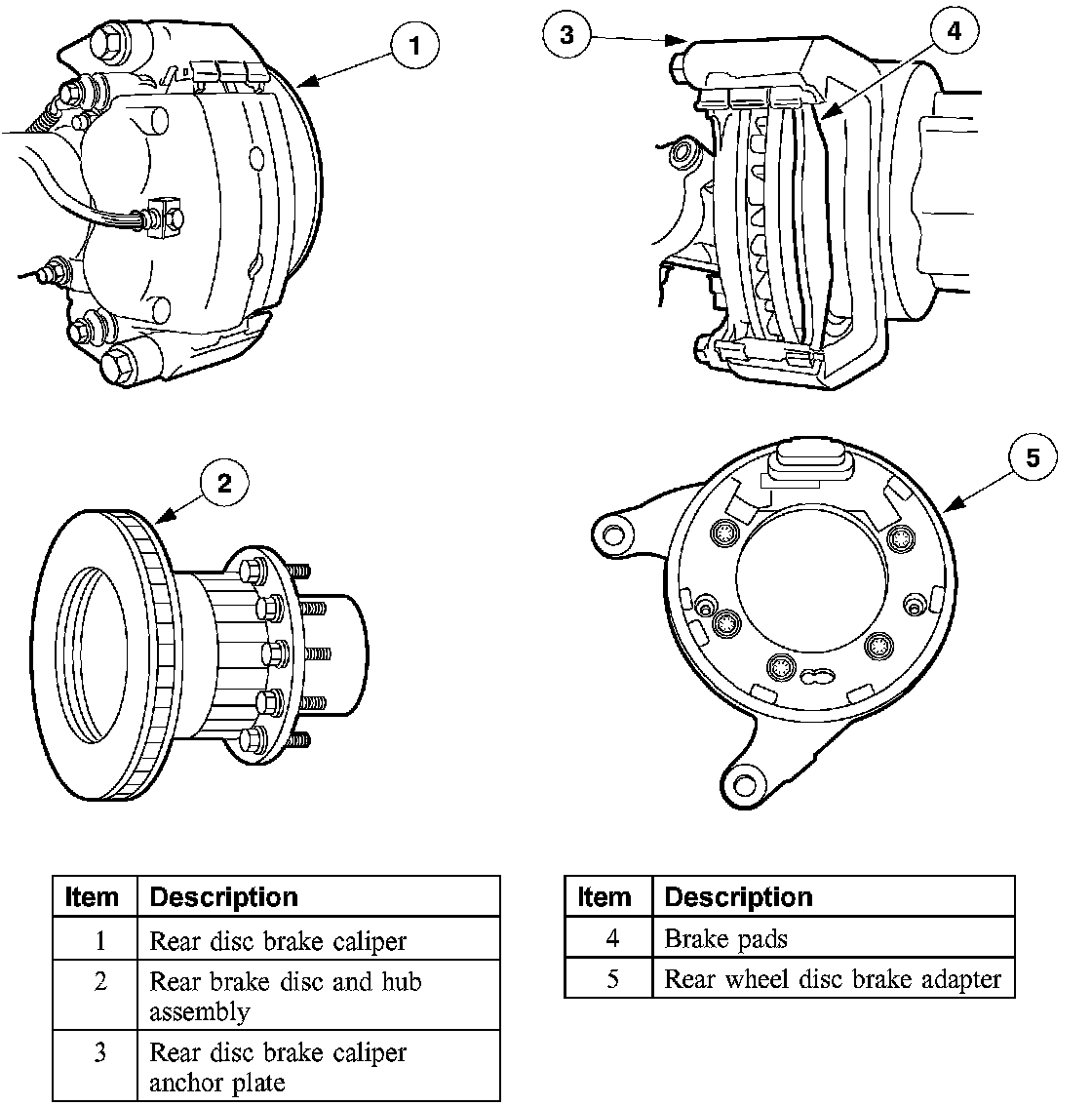

Rear Disc Brake System Components-Dual Rear Wheel (Part 1 Of 2):

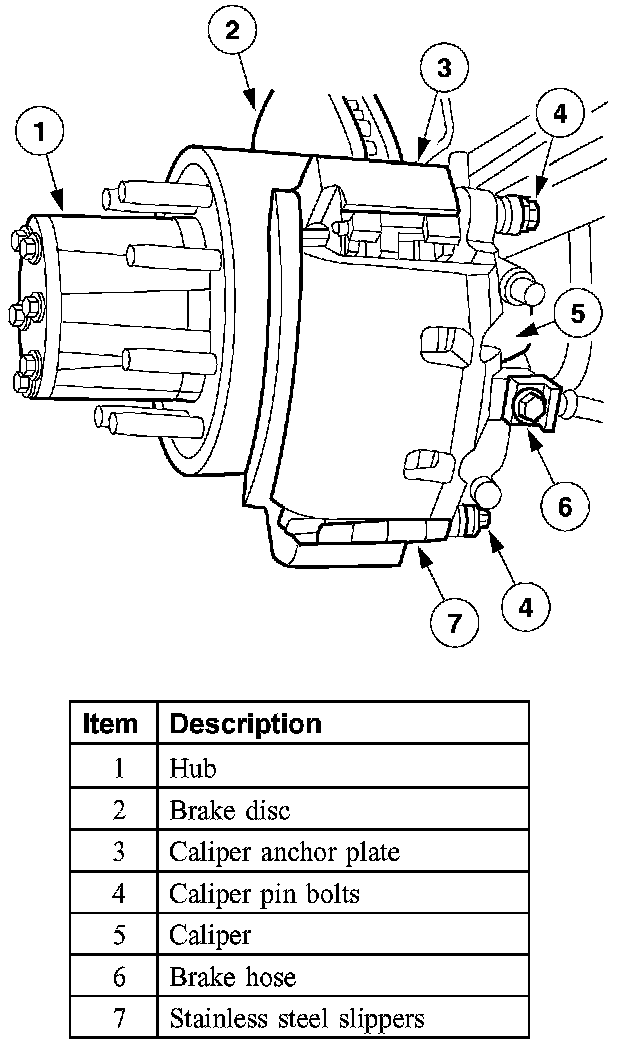

Rear Disc Brake System Components-Dual Rear Wheel (Part 2 Of 2):
