Water Pump: Service and Repair

Coolant Pump

Removal and Installation
1. Remove the cooling fan stator.





2. Remove the accessory drive belt.





3. Remove the bolts and the coolant pump pulley.

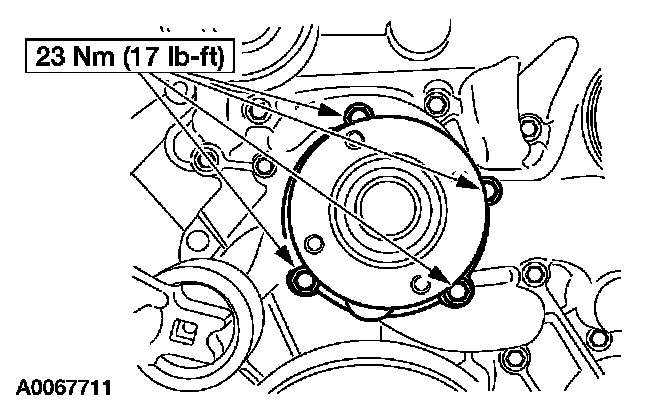

4. Remove the bolts and the coolant pump.
^ Remove and discard the O-ring seal.
5. To install, reverse the removal procedure.
^ Clean and inspect the coolant pump mounting.
