Auxiliary Climate Control

BLOWER MOTOR

REMOVAL AND INSTALLATION
1. If equipped, remove the LH quarter trim panel. Refer to: Body and Frame, Interior Moulding/Trim, Trim Panel, Service and Repair, Service and Repair

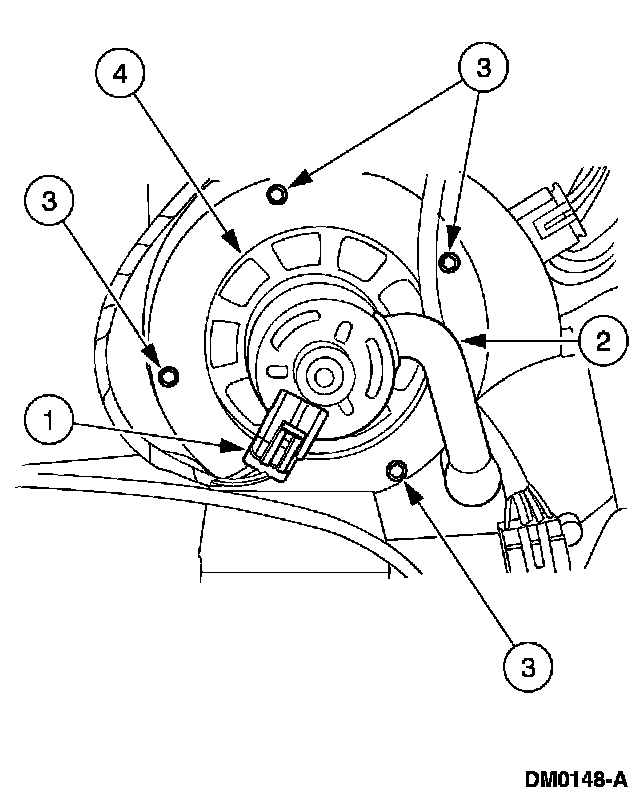

2. Remove the blower motor.
1 Disconnect the blower motor electrical connector.
2 Remove the blower motor housing cooling tube.
3 Remove the screws.
4 Remove the blower motor.







3. NOTE: Note the location of the blower motor wheel on the blower motor.

Remove the blower motor wheel.
1 Remove the retaining clip.
2 Remove the blower motor wheel.
4. To install, reverse the removal procedure.
