BLOWER MOTORRemoval and Installation
Vehicles with 4.6L, 5.4L or 6.8L engine
1. Disconnect the battery.
2. Remove the battery.

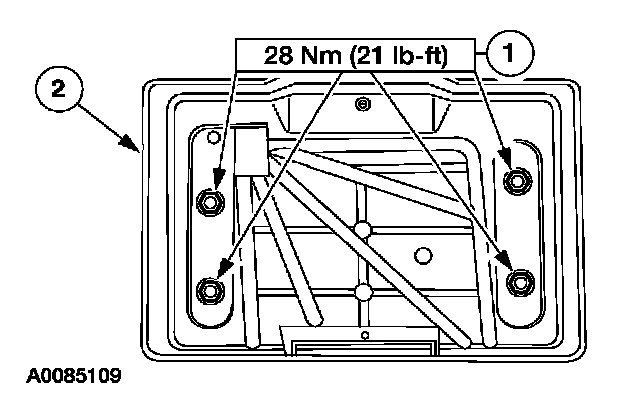

3. Remove the battery tray.
1 Remove the screws.
2 Remove the battery tray.
Vehicles equipped with A/C
4. NOTE: This step must be carried out if the vehicle is equipped with an A/C system.
Move the suction accumulator.
1 Remove the three screws.
2 Move the suction accumulator
All vehicles
5. NOTE: To ease removal, align the flat spot on the blower motor mounting plate with the accumulator.

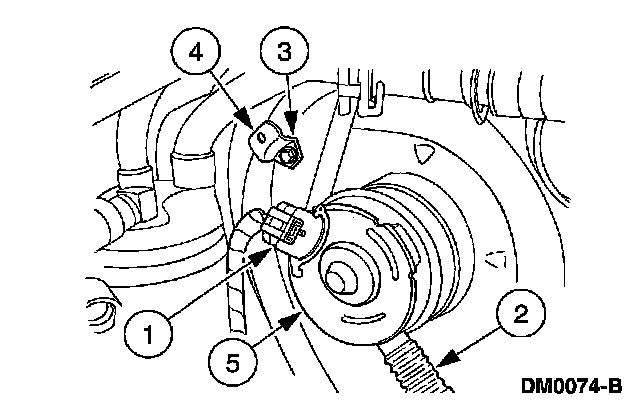

Remove the blower motor.
1 Disconnect the blower motor electrical connector.
2 Remove the blower motor housing tube.
3 Remove four screws.
4 Remove the retaining clip.
5 Remove the blower motor.
6. NOTE: Note the location of the blower motor wheel on the blower motor.
Remove the blower motor wheel.
1 Remove the retaining clip.
2 Remove the blower motor wheel.
7. To install, reverse the removal procedure.
