Test C: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly

PINPOINT TEST C: THE AIR CONDITIONING (A/C) IS INOPERATIVE/DOES NOT OPERATE CORRECTLY


C1:






C1-C2:

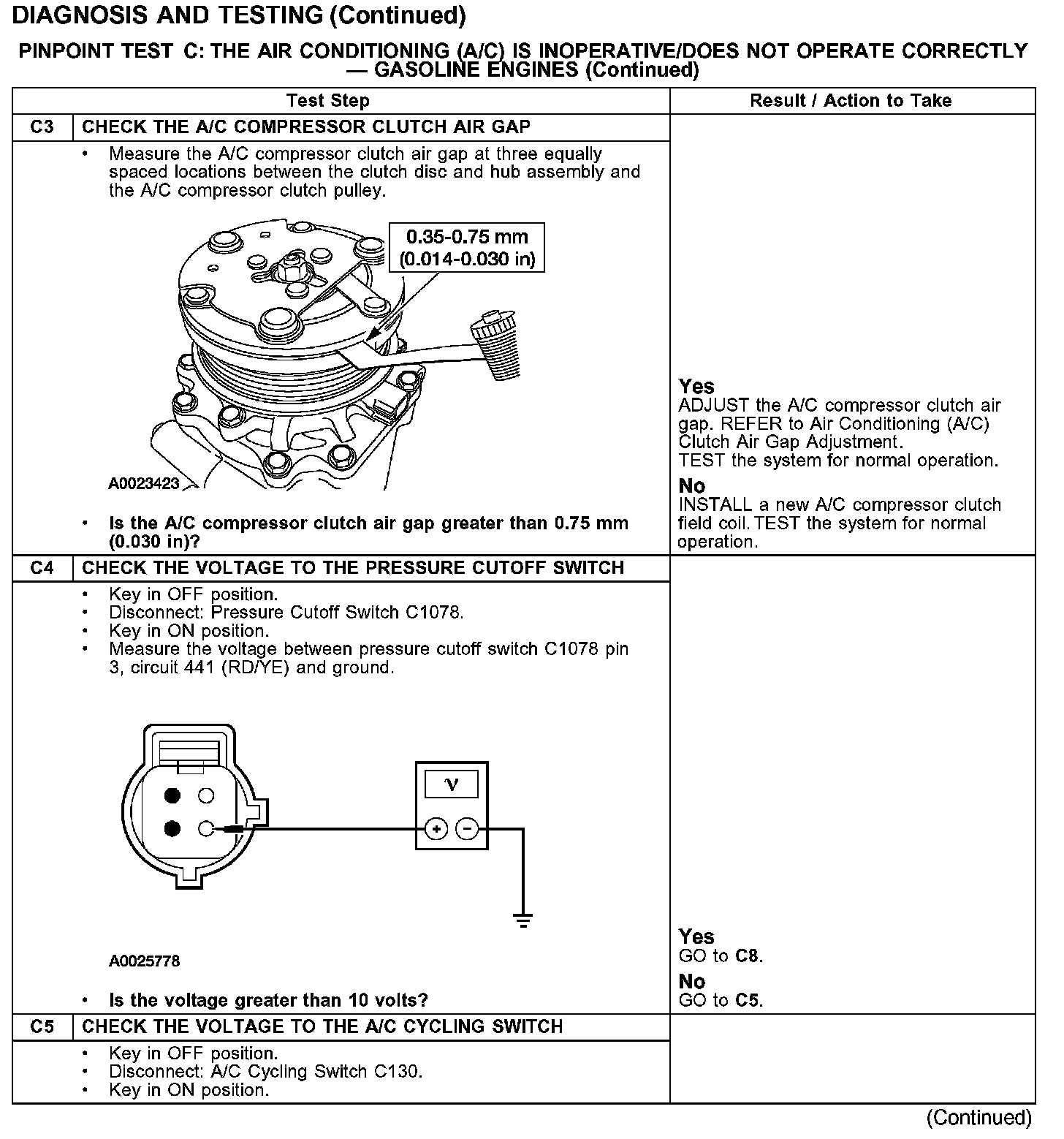

C3-C5:

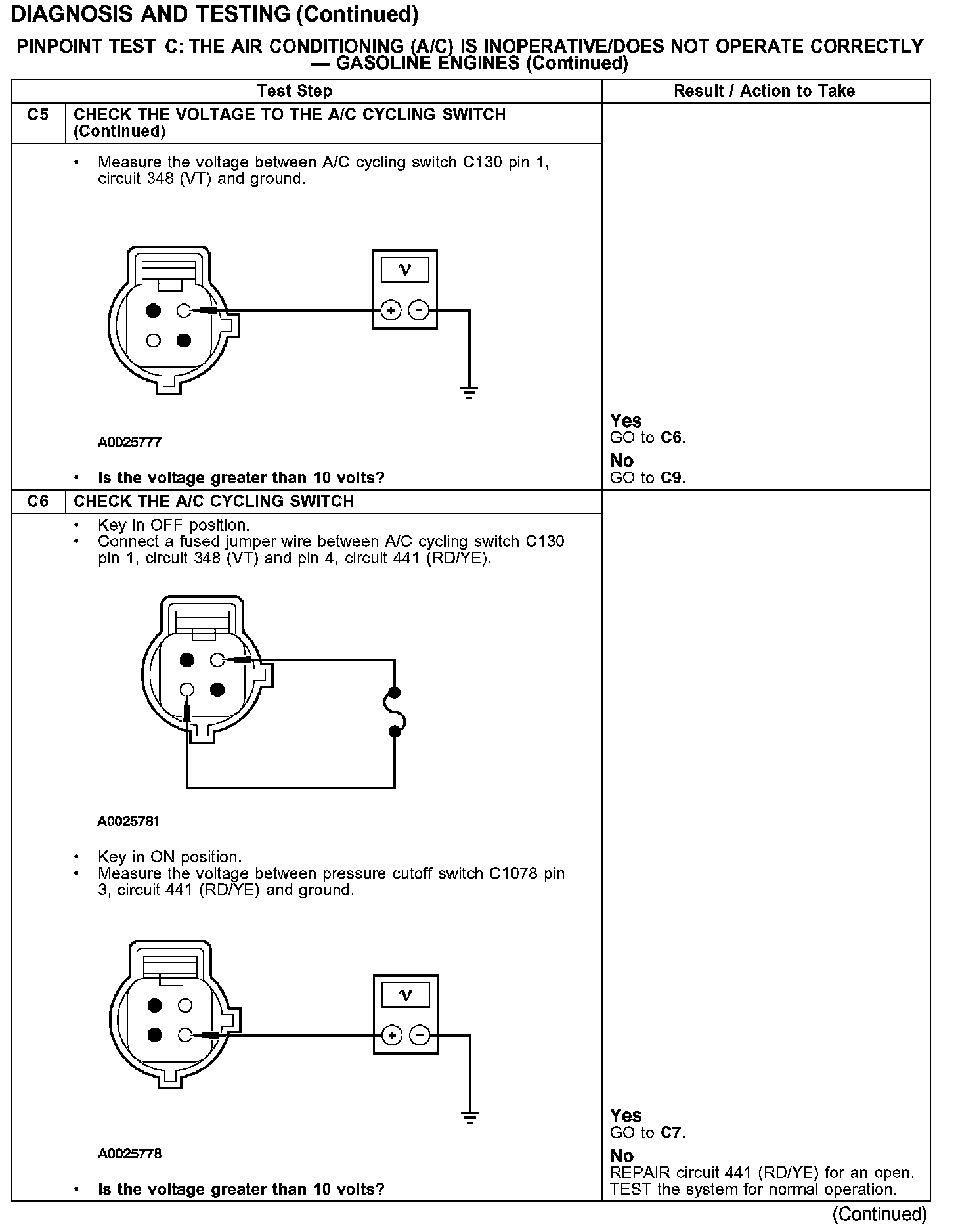

C5-C6:

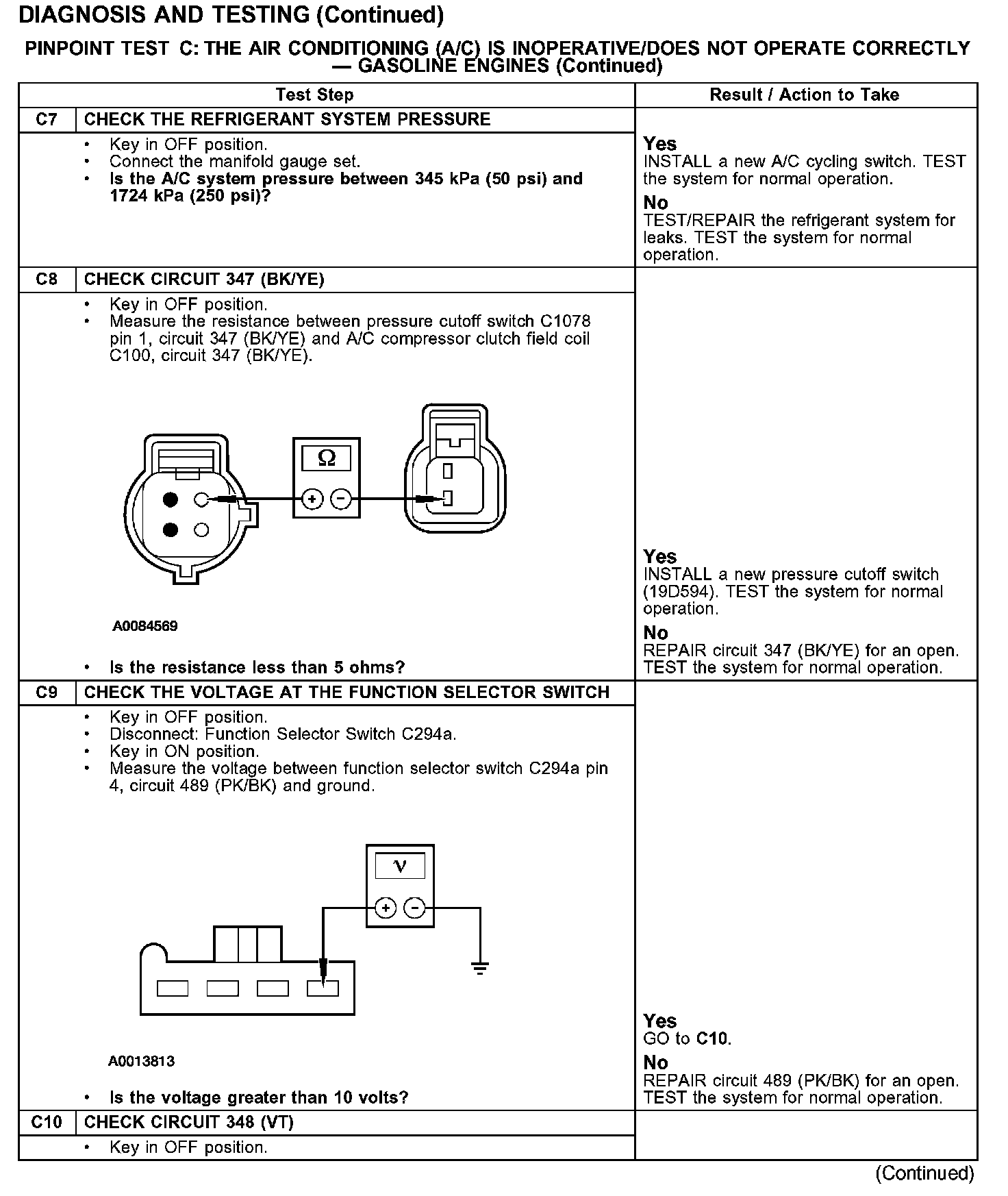

C7-C10:

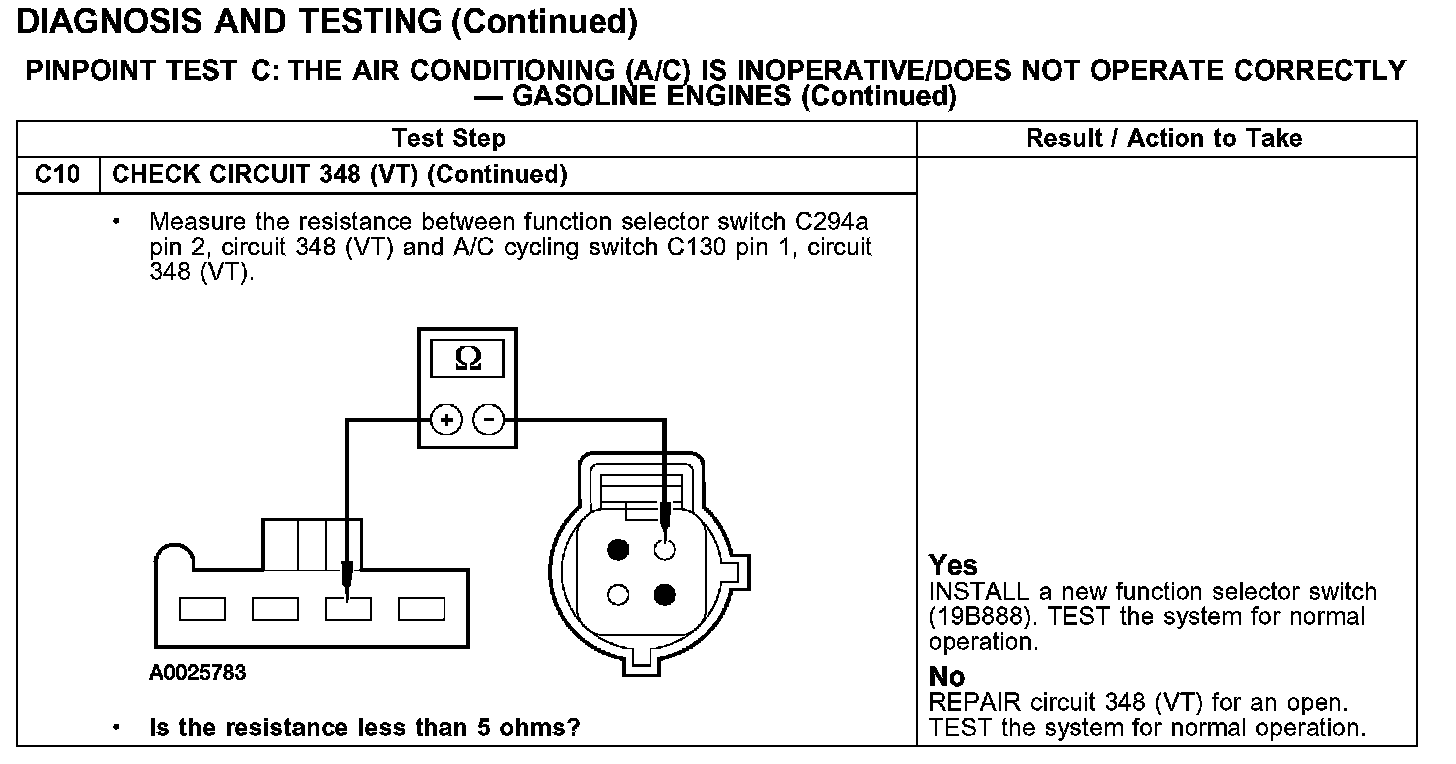

C10 Continued:
