Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2005
>>
E 350 V8-6.0L DSL Turbo VIN P
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly
Test D: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly
PINPOINT TEST D: THE AIR CONDITIONING (A/C) IS INOPERATIVE/DOES NOT OPERATE CORRECTLY
D1-D5:

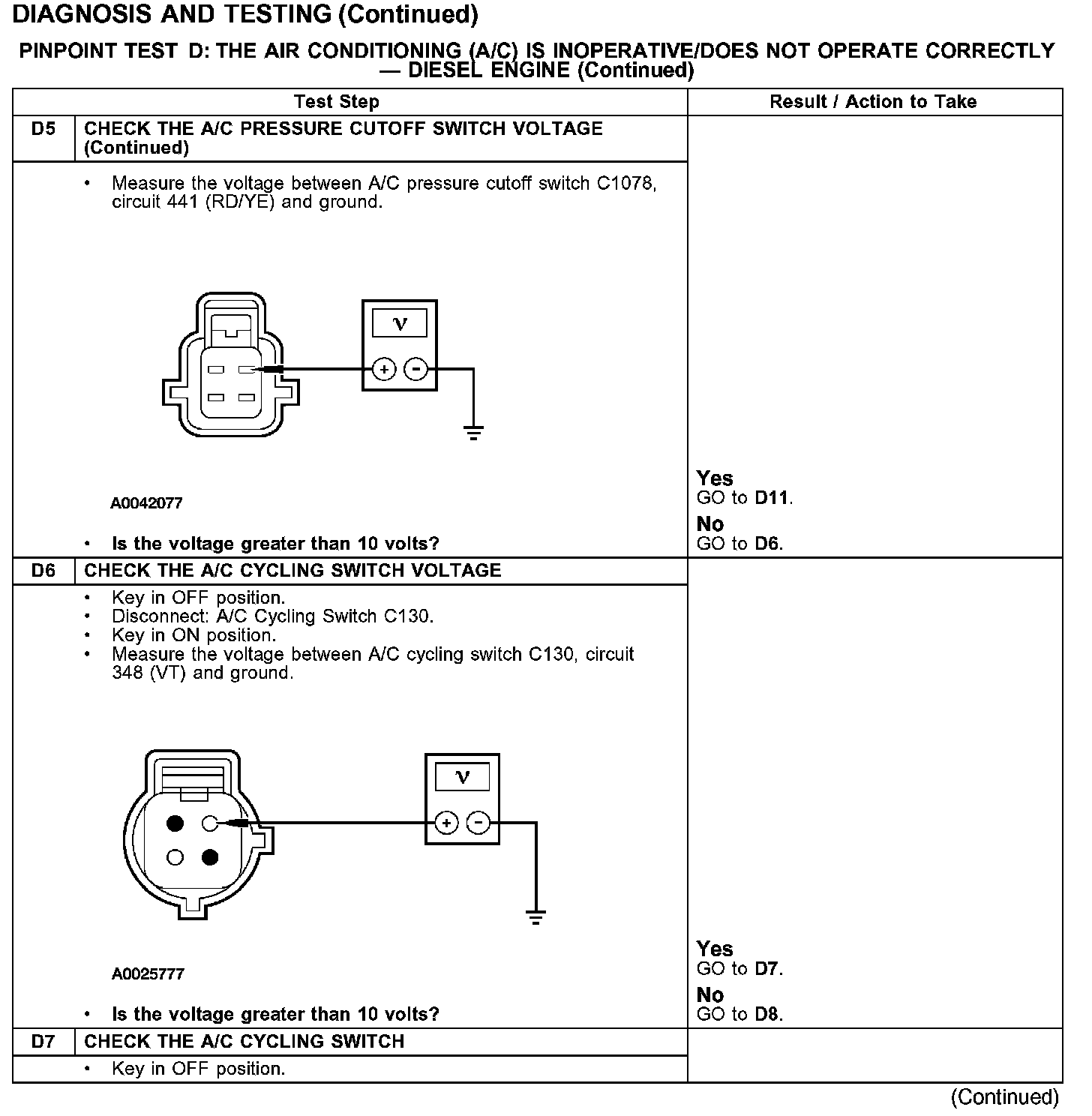

D5-D7:

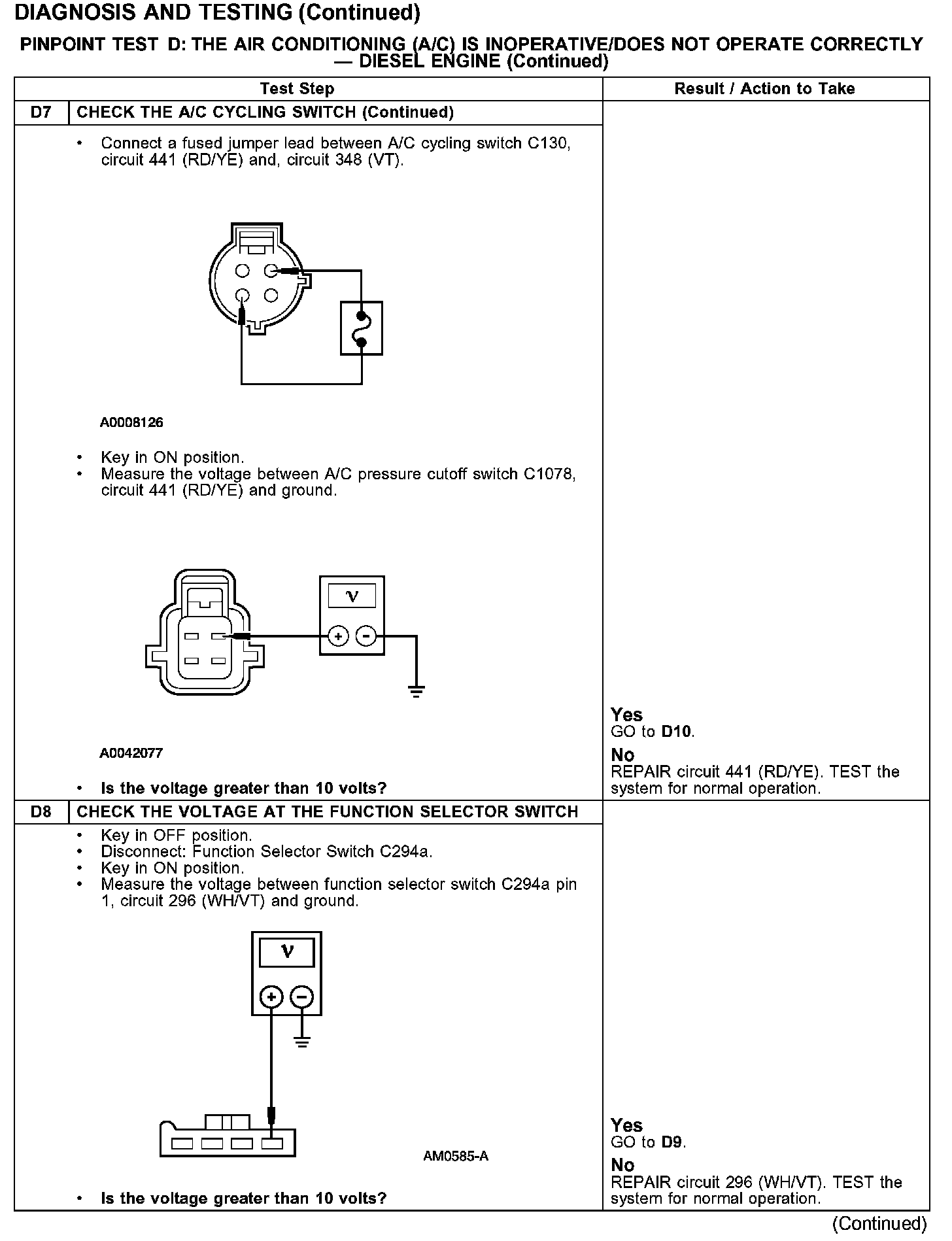

D7-D8:

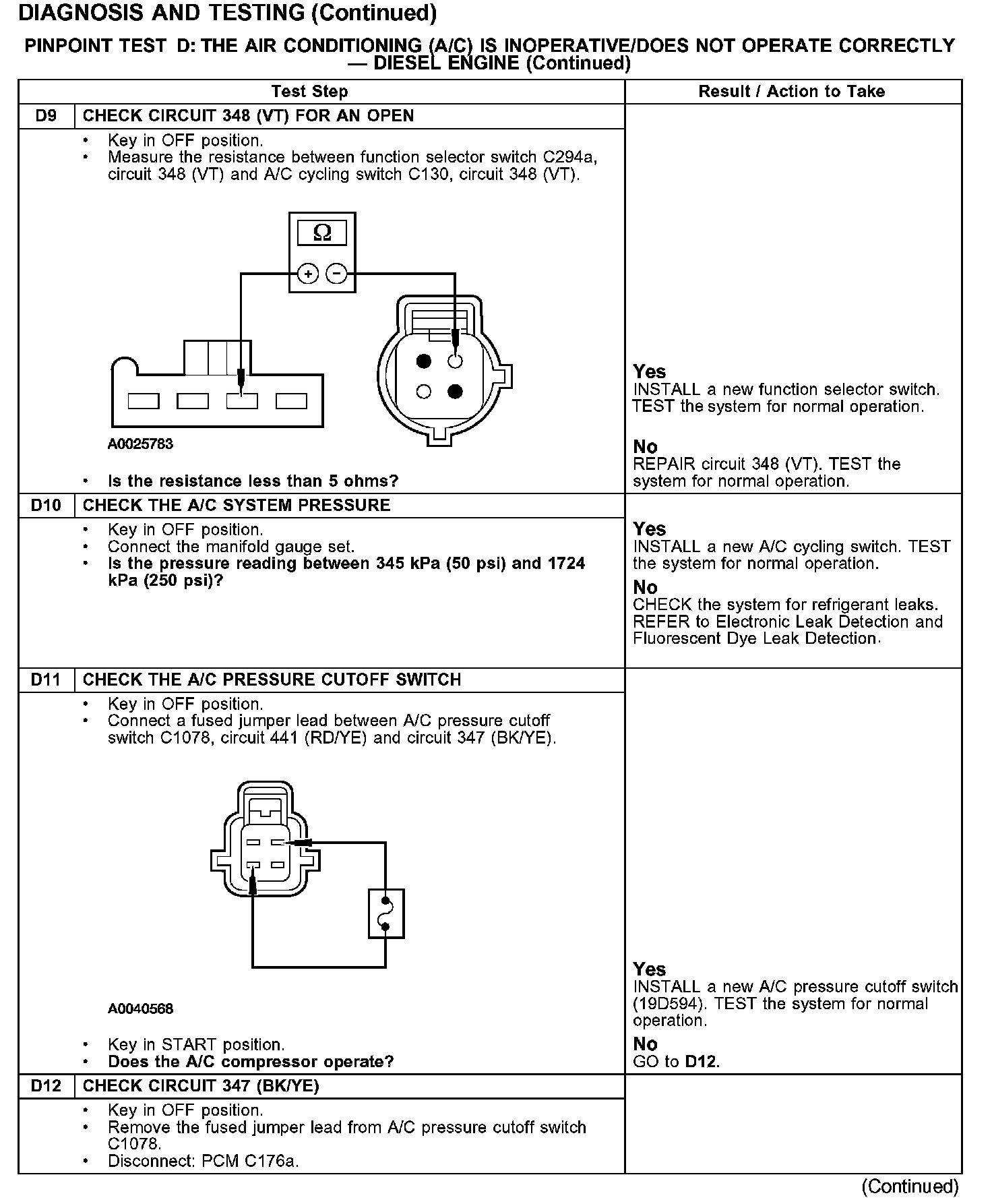

D9-D12:

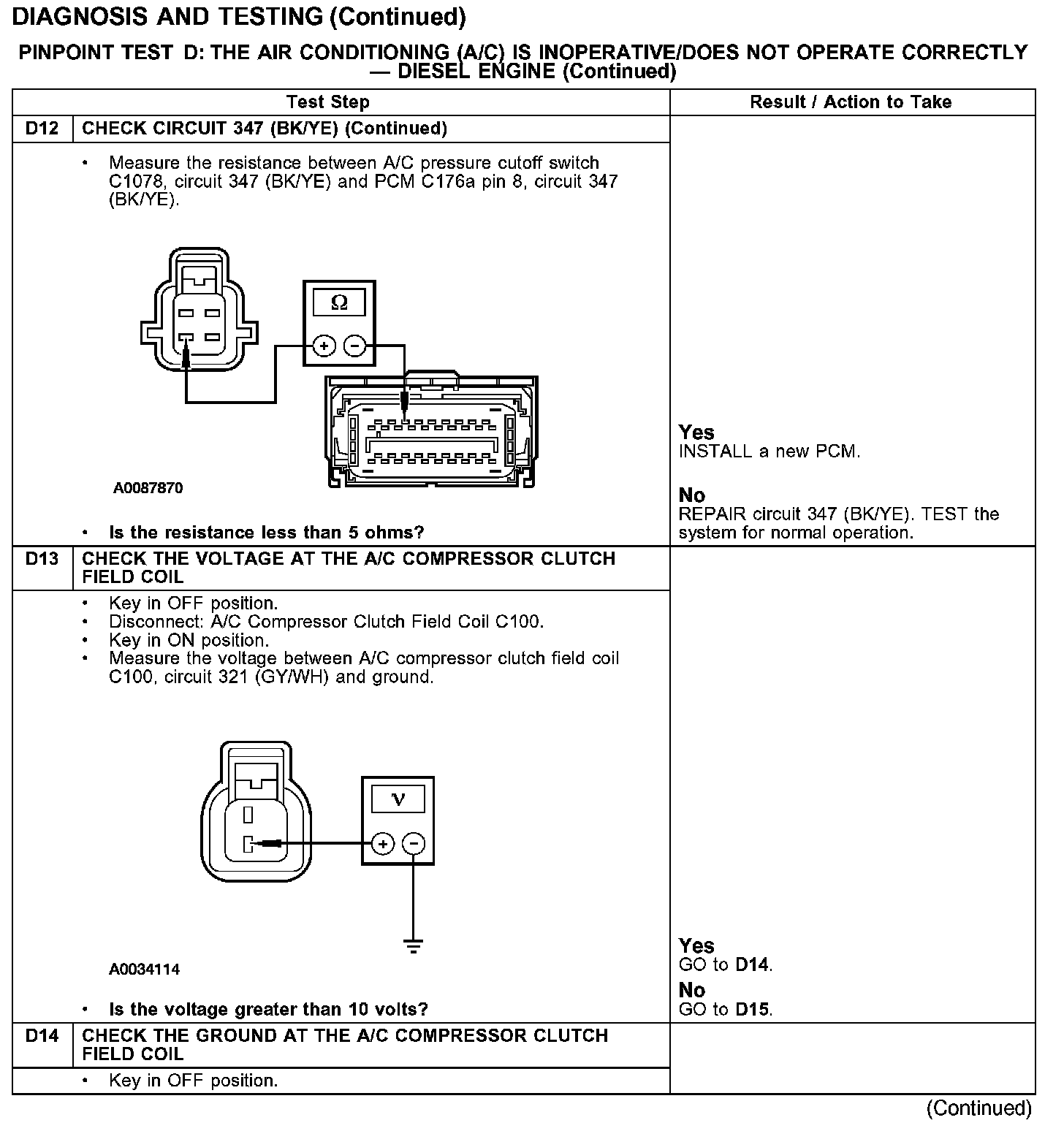

D12-D14:
D14-D15:

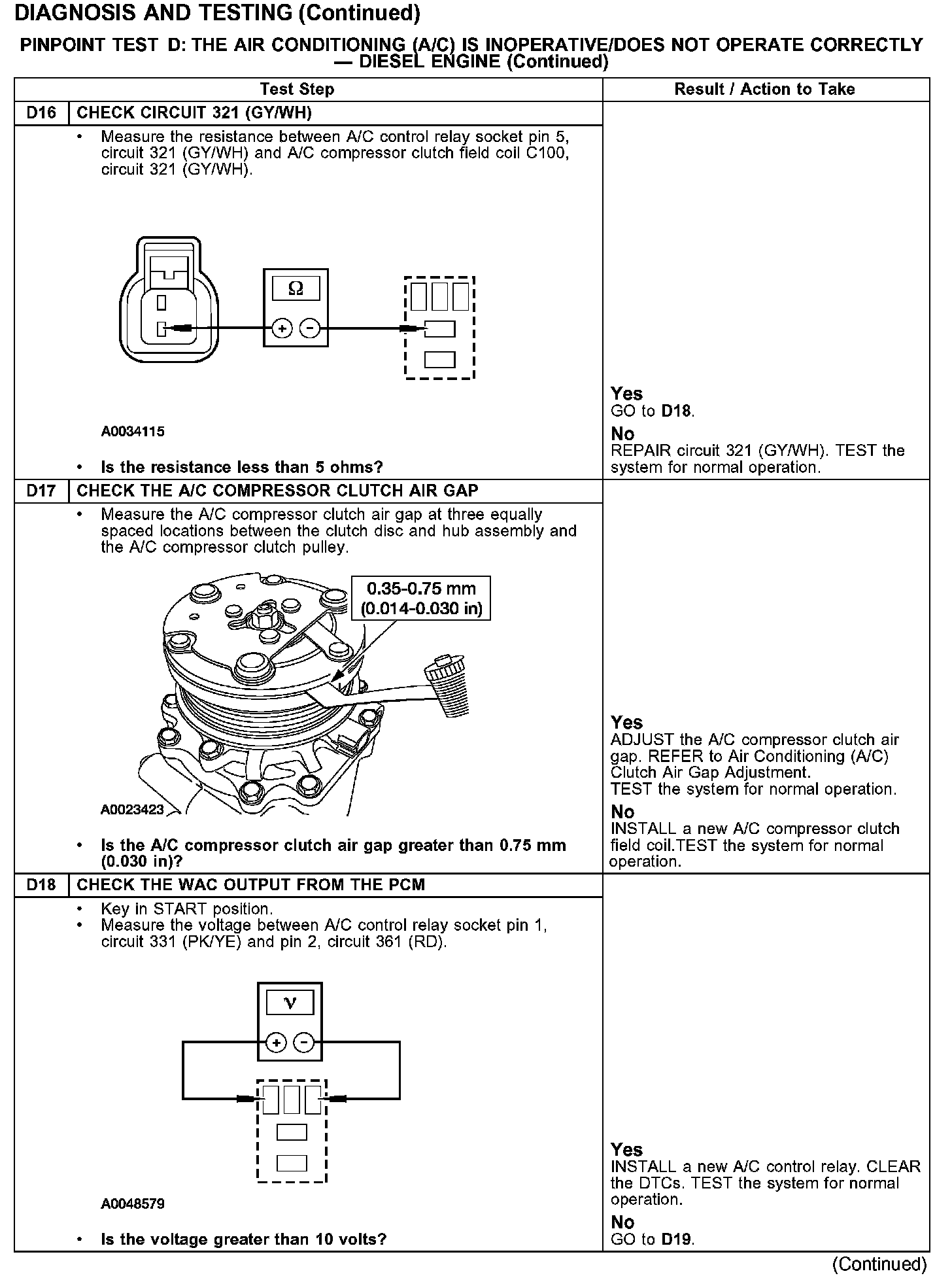

D16-D18:
D19-D20:
