Test H: Temperature Control Is Inoperative/Does Not Operate Correctly
Test H: Temperature Control Is Inoperative/Does Not Operate Correctly
PINPOINT TEST H: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

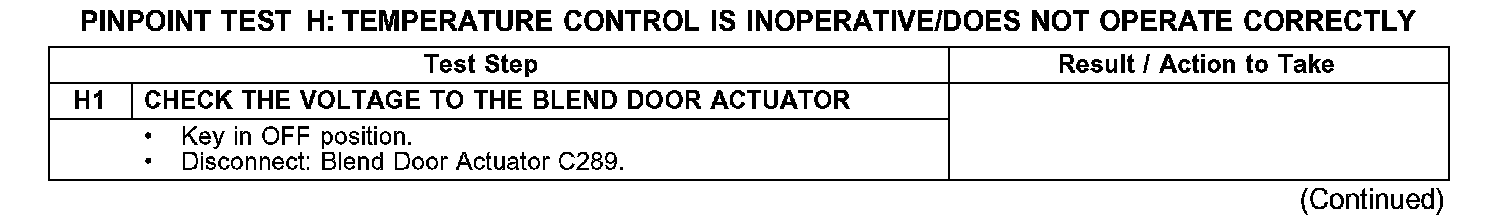

H1:
H1-H2:
H3-H4:
H5-H7:
H7-H9:

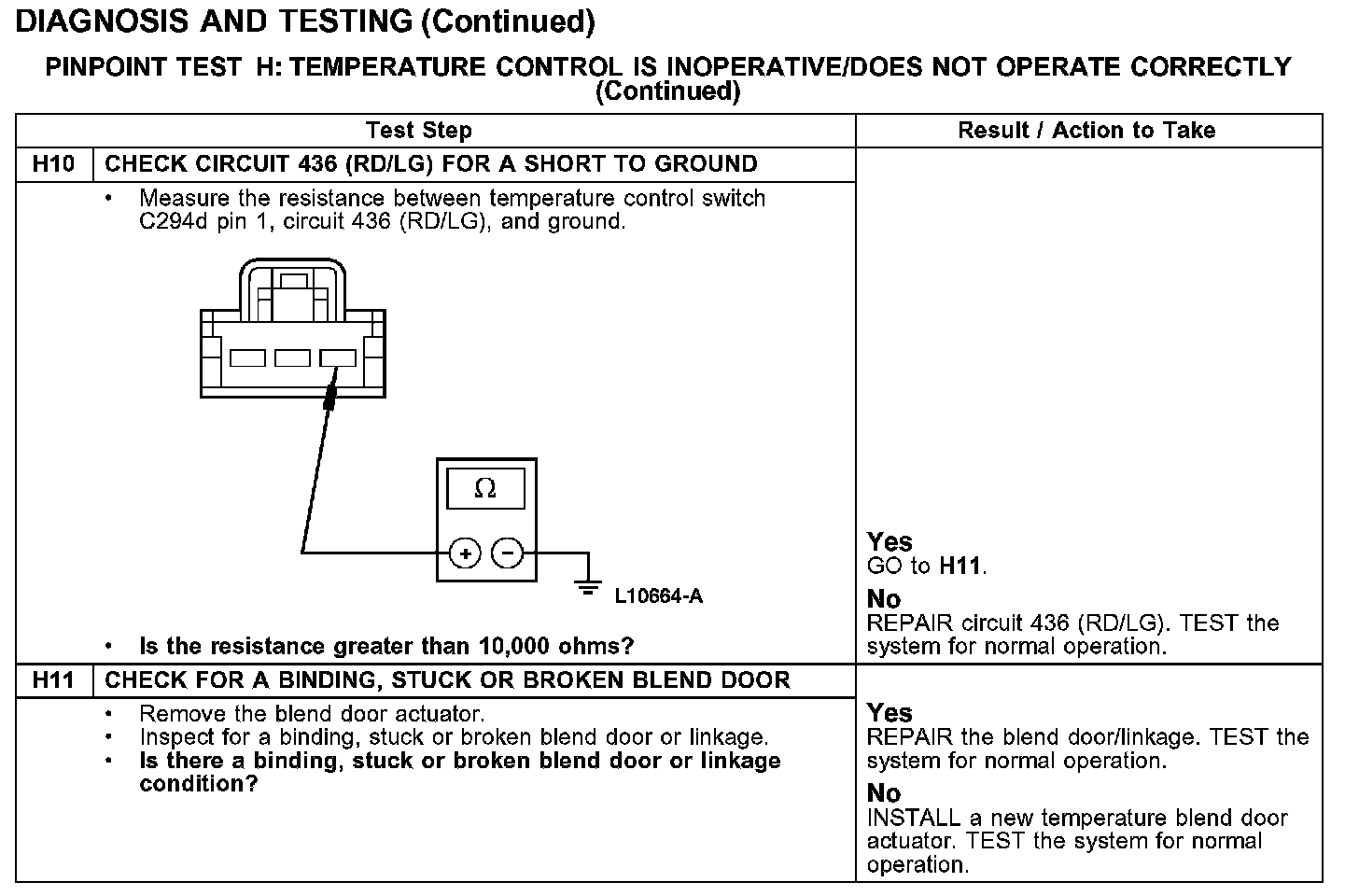

H10-H11:
