Compass: Service and Repair

COMPASS DISPLAY

Removal and Installation
1. Remove the overhead console.

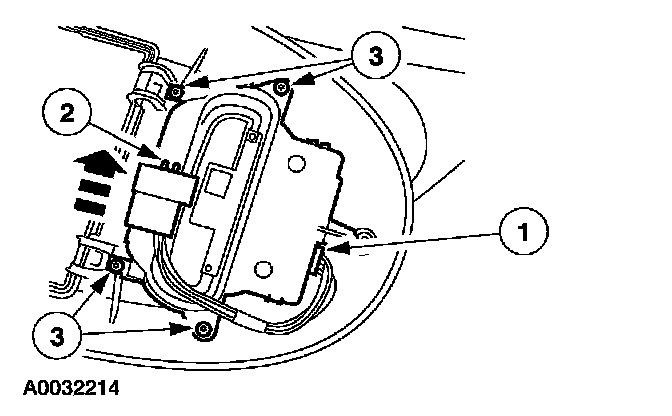

2. Remove the compass display.
1 Disconnect the electrical connector.
2 Depress the tab and remove the electrical connector.
3 Remove the screws.

3. To install, reverse the removal procedure.
