Reading and Clearing Diagnostic Trouble Codes

INSTRUMENT CLUSTER DEALER TEST MODE

Part 1:

Part 2:

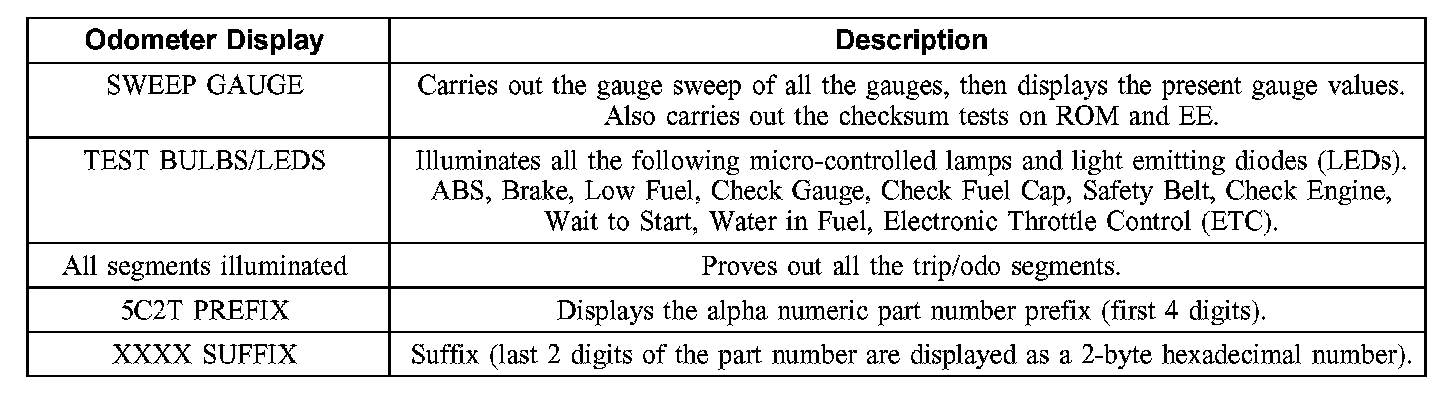

To enter the Instrument Cluster Dealer Test Mode, press and hold the instrument cluster SELECT/RESET button, then turn the ignition switch to the RUN position. Continue pressing the SELECT/RESET button (5 seconds) until TEST is displayed in the odometer. The SELECT/RESET button must be released within 5 seconds of the odometer displaying TEST to begin the dealer test mode. Press the SELECT/RESET button to advance through the following steps until the DTC is displayed. Pressing the SELECT/RESET button repeatedly will display all continuous DTCs stored before proceeding to the next step.

Turn the ignition switch to the OFF position to exit Instrument Cluster Dealer Test Mode. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Diagnosis By Symptom - Instrument Cluster
