Parking Lamp: Service and Repair

LAMP ASSEMBLY - PARKING

Removal

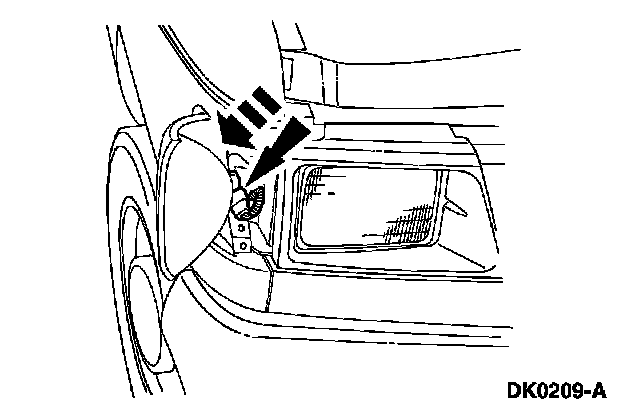

NOTE: RH shown; LH similar.







1. Remove the parking lamp screws.







2. Pull the parking lamp forward and disconnect the electrical connector.

Installation
1. To install, reverse the removal procedure.
