Tail Lamp: Service and Repair

LAMP ASSEMBLY - TAIL LAMP

Removal

NOTE: RH shown; LH similar.

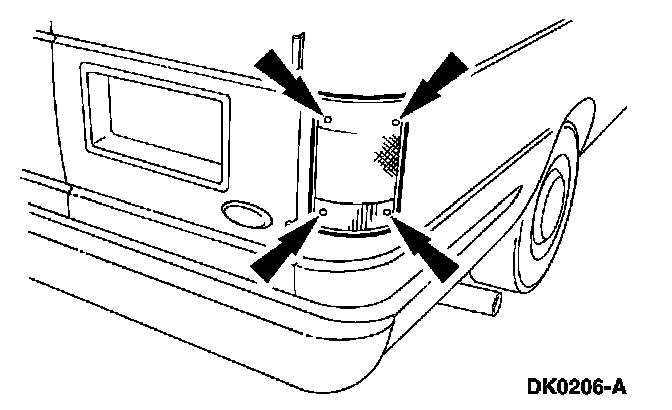

1. Remove the rear lamp screws.

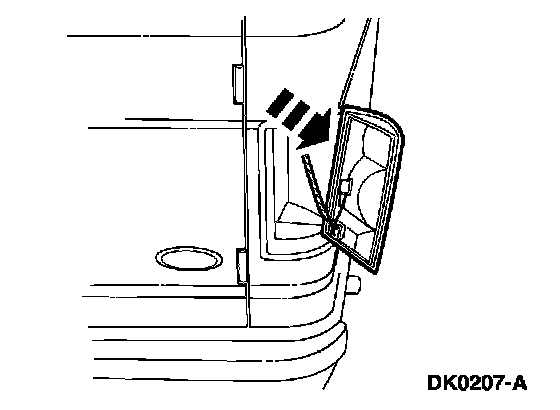

2. Pull the rear lamp forward.
3. Disconnect the electrical connectors.

Installation
1. To install, reverse the removal procedure.
