Drive Belt: Service and Repair

Accessory Drive Belt - 6.0L Diesel

Removal and Installation

1. Remove the cooling fan stator.

NOTE: Single belt shown, Dual belt similar.

6.0L Diesel:

2. Rotate the tensioner clockwise and remove the accessory drive belt.

3. To install, reverse the removal procedure.

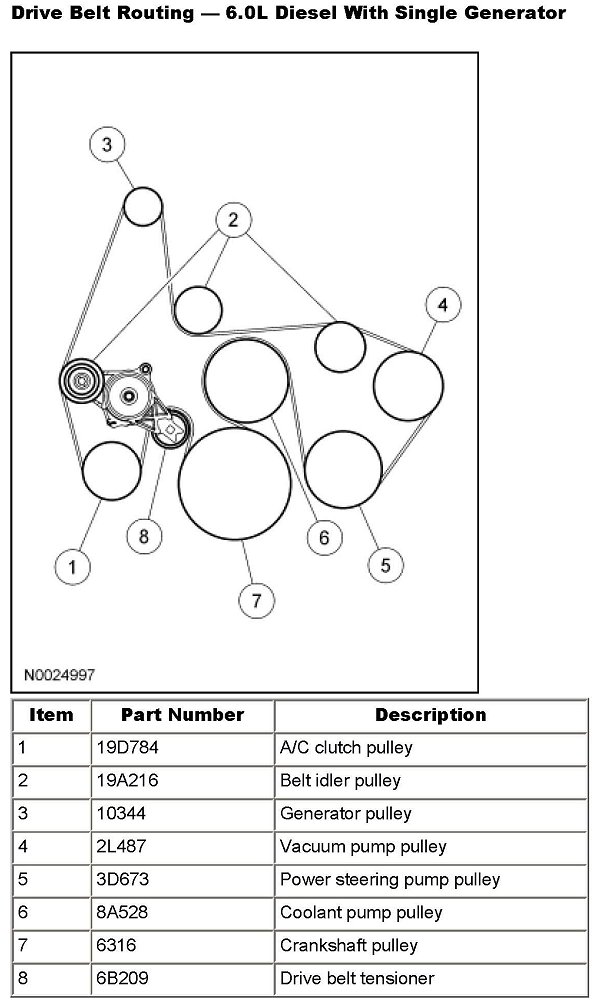

6.0L Diesel With Single Generator:

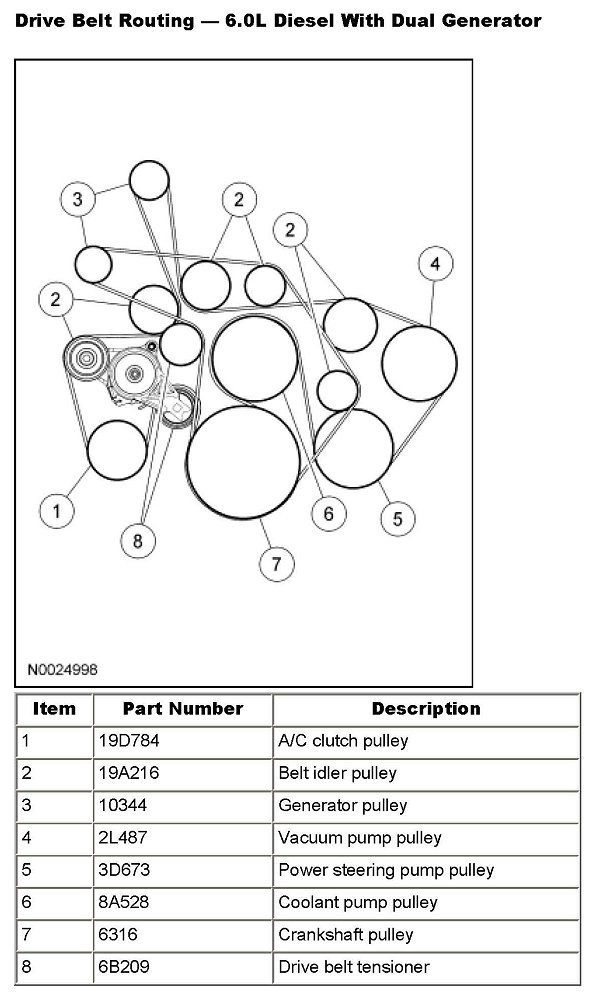

6.0L Diesel With Dual Generator:
