Dual Battery Disconnect

DUAL BATTERY DISCONNECT

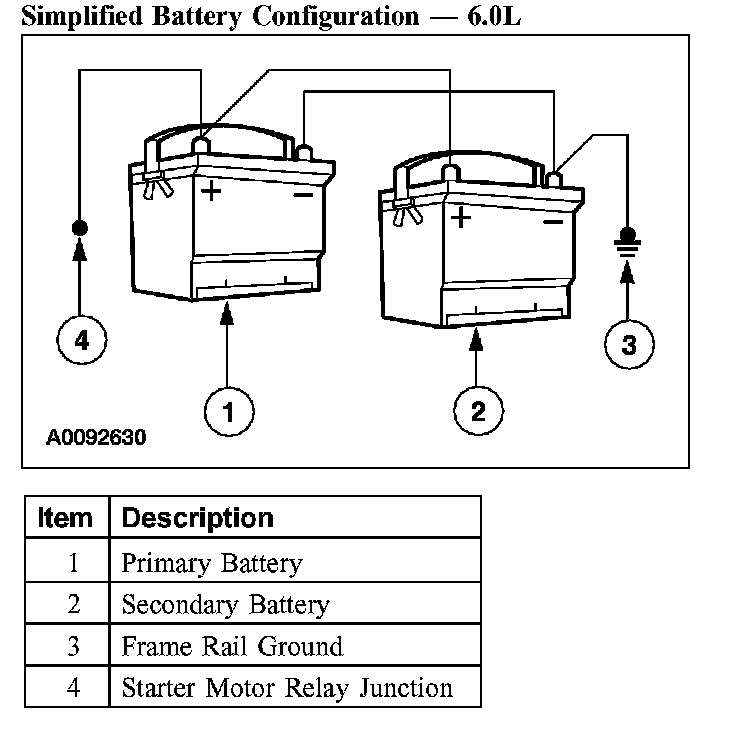

Simplified Battery Configuration:

Disconnect







1. CAUTION: Make sure to cover the ground cable terminal end with electrical tape or with a suitable insulating device.

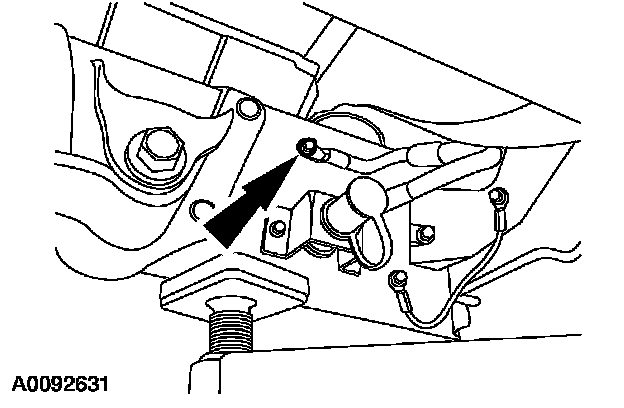

Disconnect the secondary battery ground cable

Connect







1. Reconnect the secondary battery ground cable.
