Universal Joints

Universal Joints

Part 1 Of 2:

Part 2 Of 2:

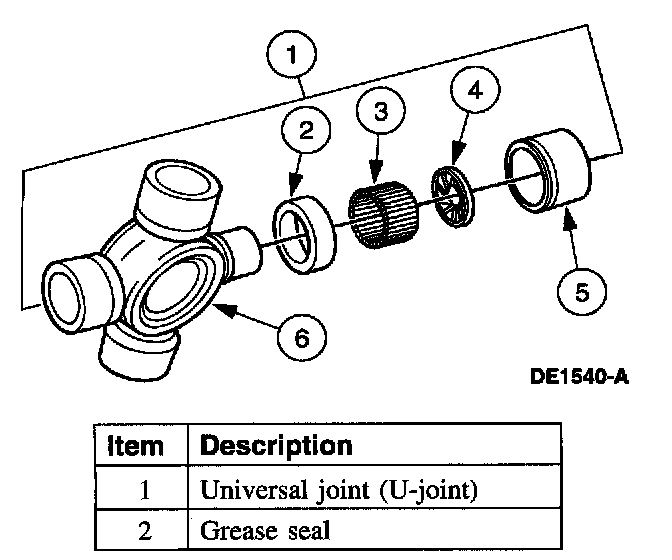

Universal joints have the following:
^ A lubed-for-life design.
^ Equipped with nylon thrust washers located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
^ Size 1350 for E-150-350, size 1410 for E-450, and size 1480 for E-550.

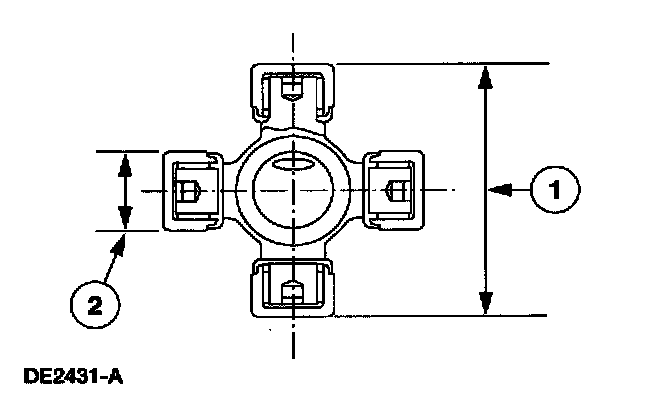

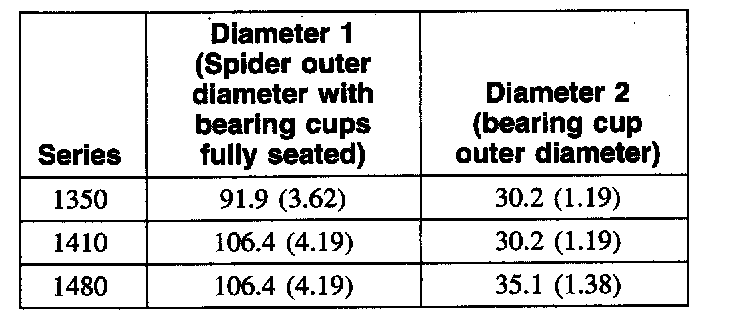

Universal Joint (U-Joint) Identification Chart
