Test B: The Wipers Stay On Continuously

PINPOINT TEST B: THE WIPERS STAY ON CONTINUOUSLY

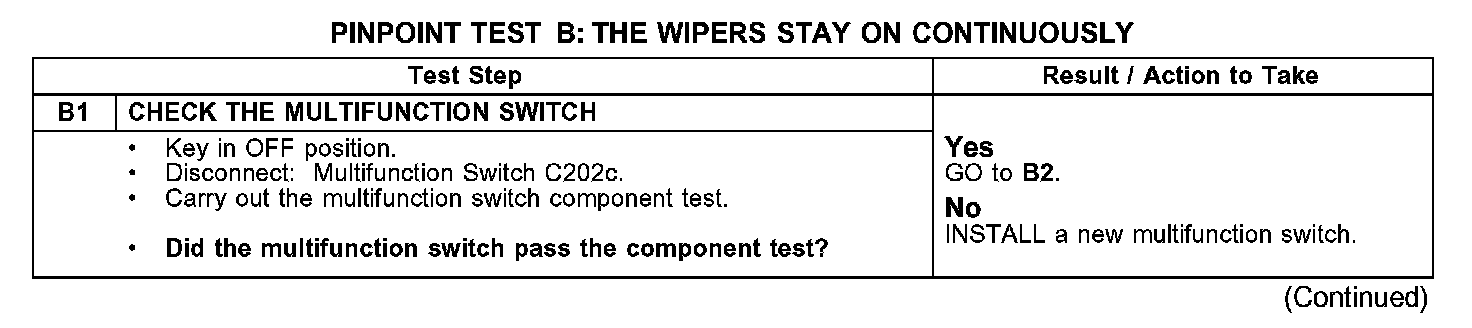

B1:

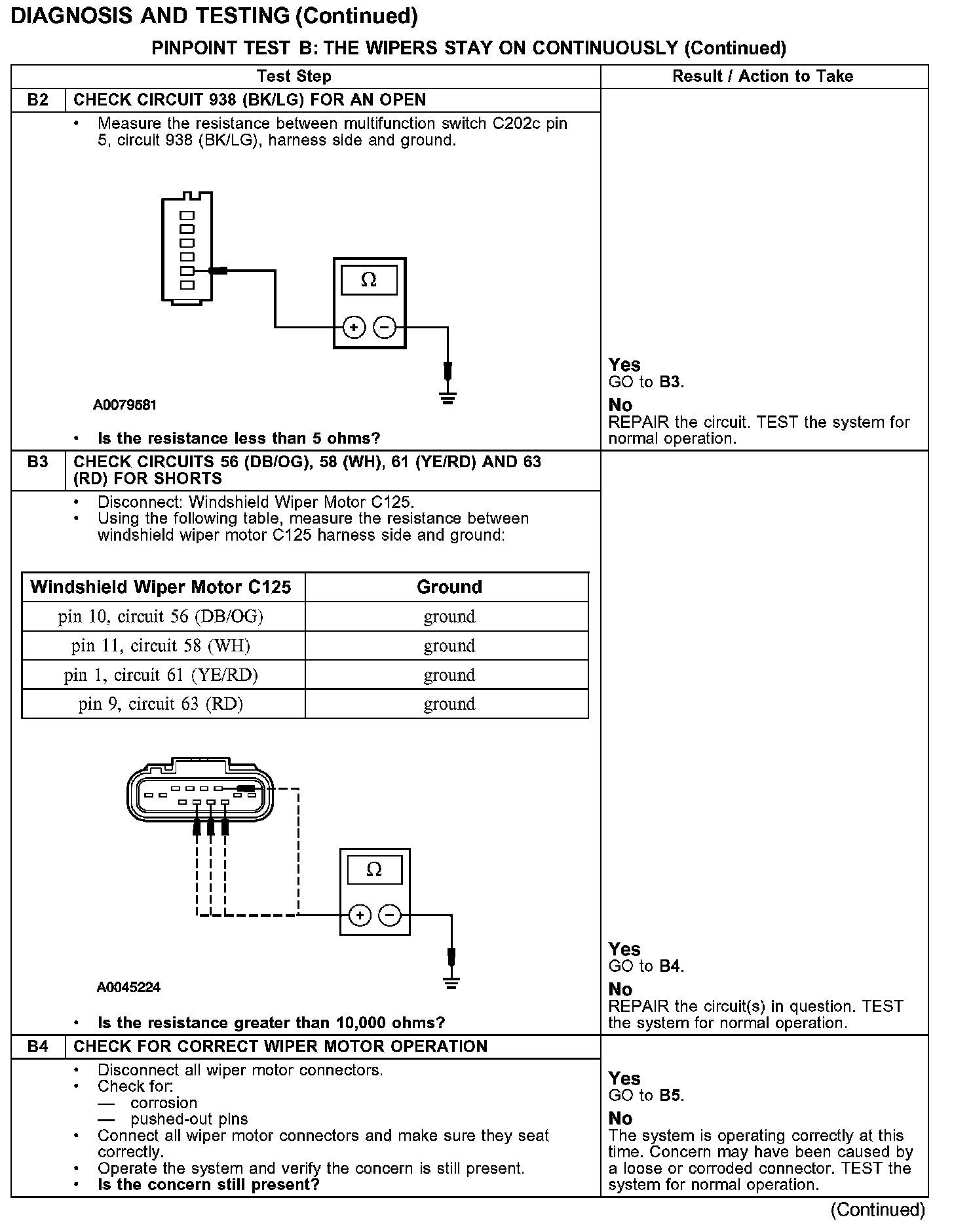

B2-B4:






B5:
