Wiper Motor: Service and Repair

WINDSHIELD WIPER MOTOR

Removal and Installation
1. Remove the windshield wiper pivot arms.
2. Remove the cowl top vent panels.

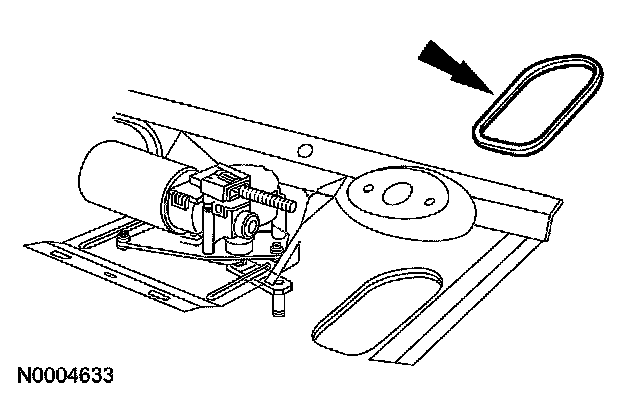

3. Remove the access cover from the dash panel.







4. Remove the windshield wiper mounting arm bolt.







5. Remove the windshield wiper motor.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the windshield wiper motor.

6. To install, reverse the removal procedure.
