Audio Unit

AUDIO UNIT

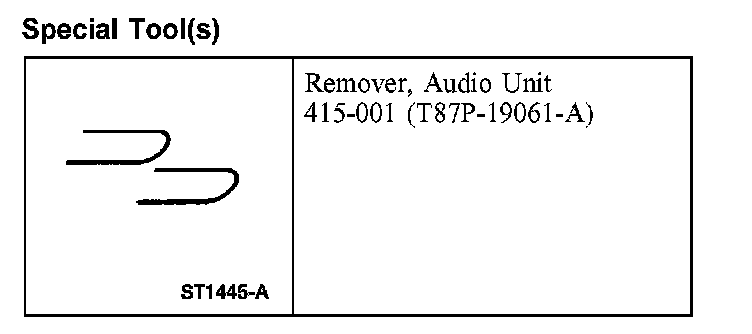

Remover, Audio Unit:

Special Tool(s)

Removal and Installation

NOTE: The following removal and installation procedure applies to all audio units.

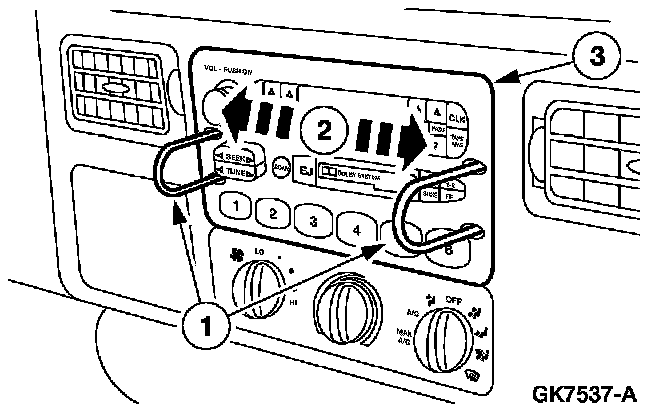

1. Remove the audio unit from the instrument panel.
1 Use the special tool to release the audio unit retaining clips.
2 Apply outward pressure on the special tool while pulling the audio unit away from the instrument panel.
3 Remove the audio unit.
- Disconnect the audio unit electrical connectors.

2. To install, reverse the removal procedure.
