Diagram Set 52 (Auxiliary Air Conditioner/Heater)
Diagram Set 52 (Auxiliary Air Conditioner/Heater)

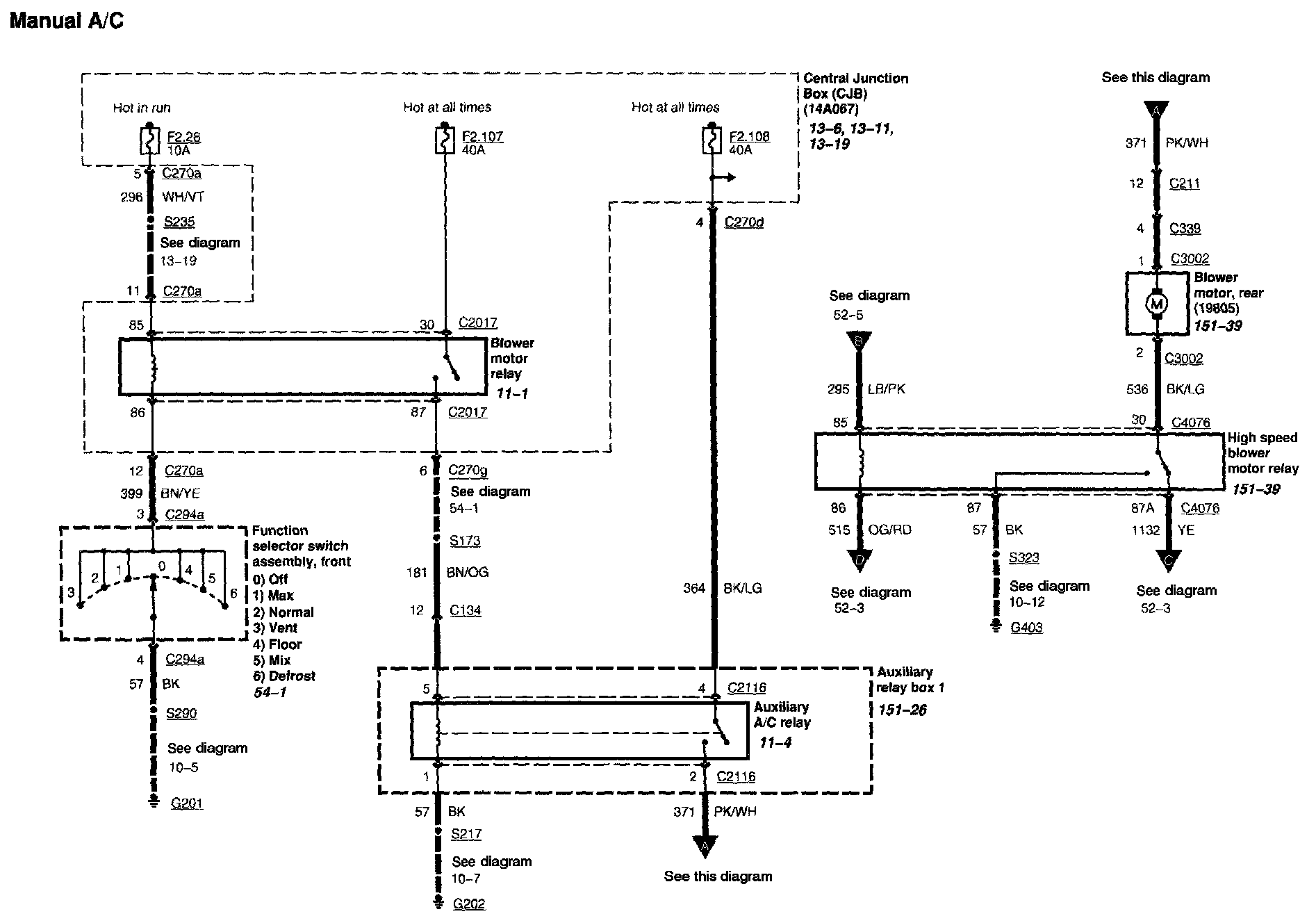

52-1:

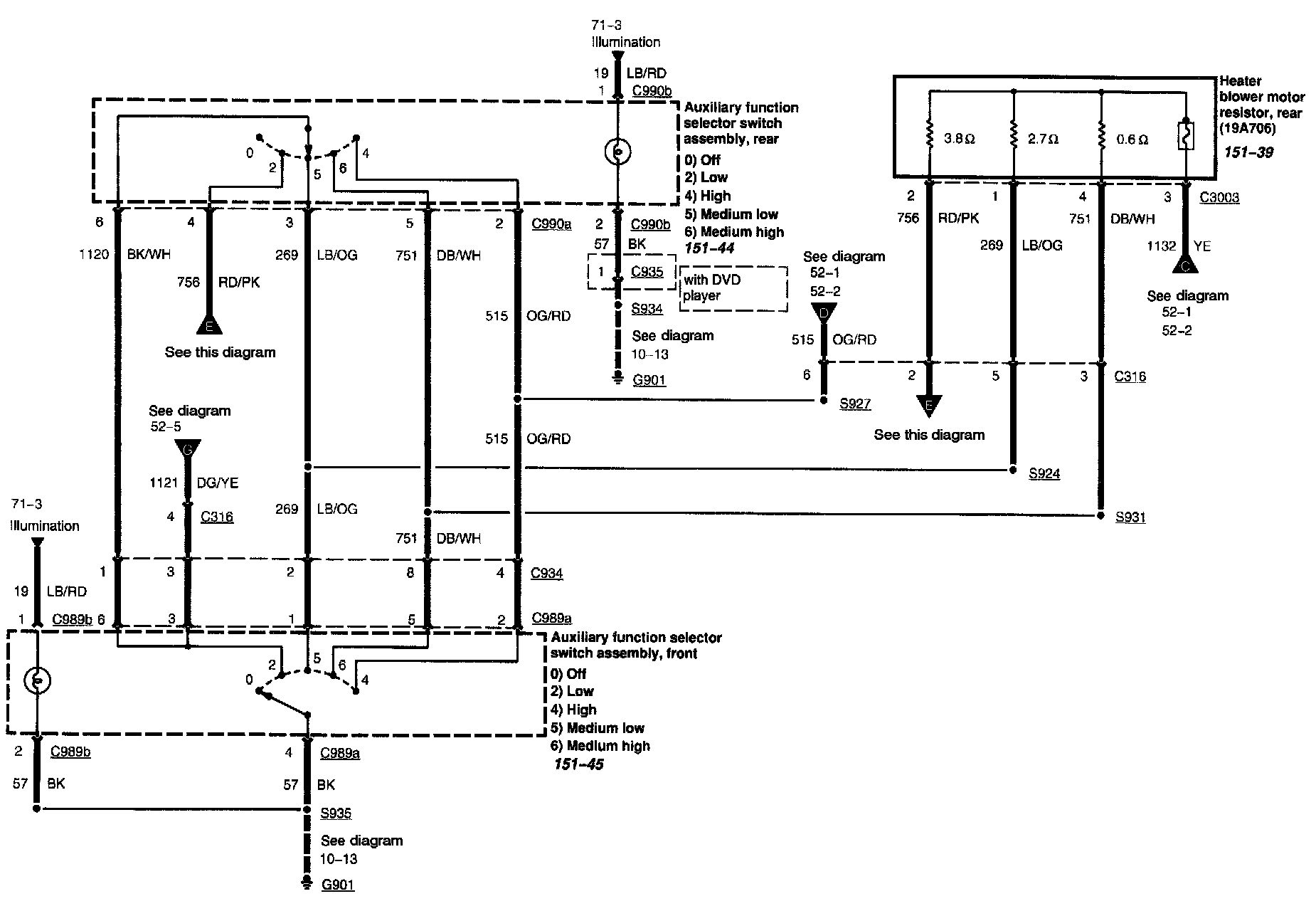

52-2:

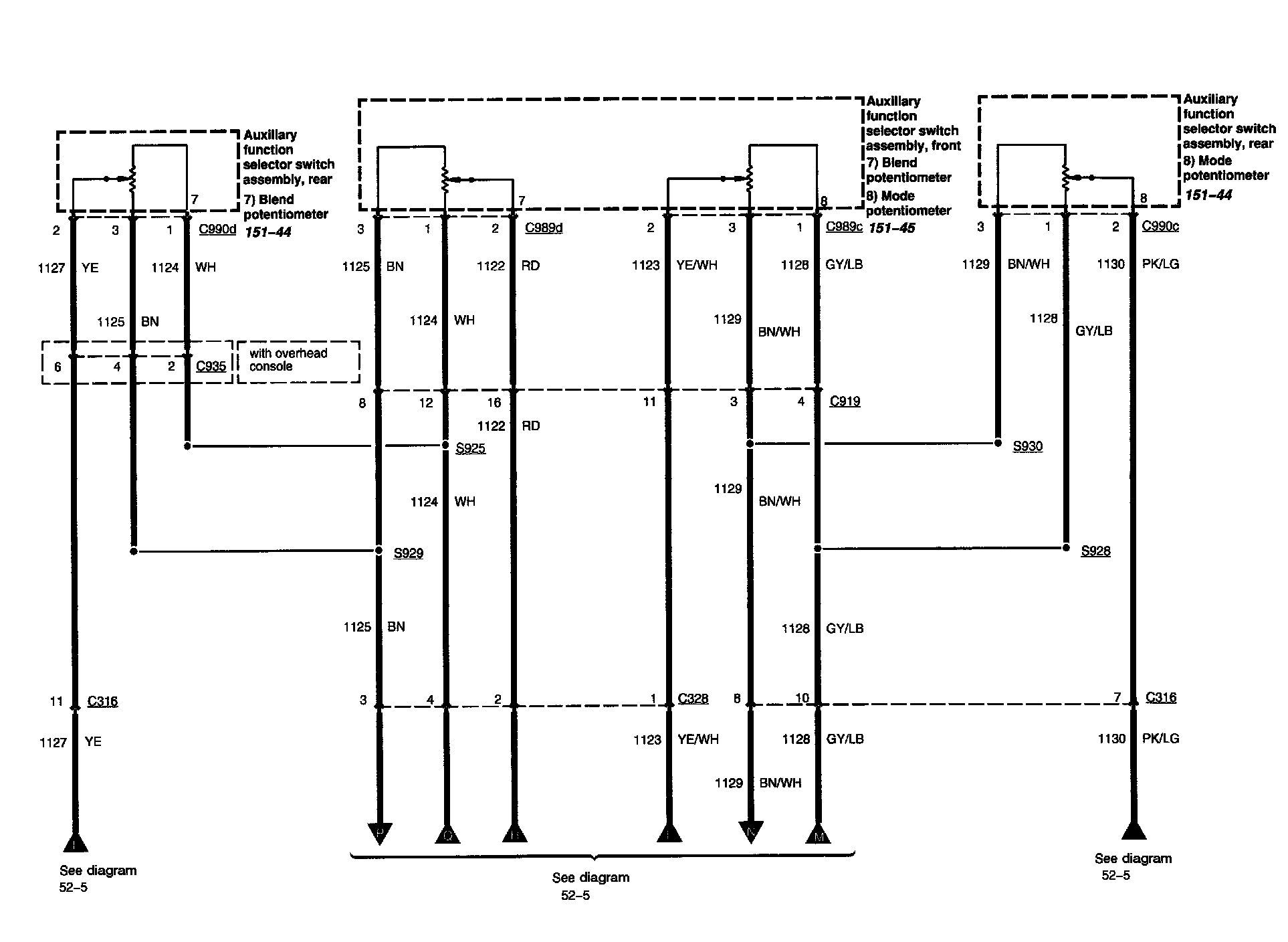

52-3:
52-4:
52-5:
