Instrument Cluster

CLUSTER LENS

Removal and Installation
1. Remove the instrument cluster.

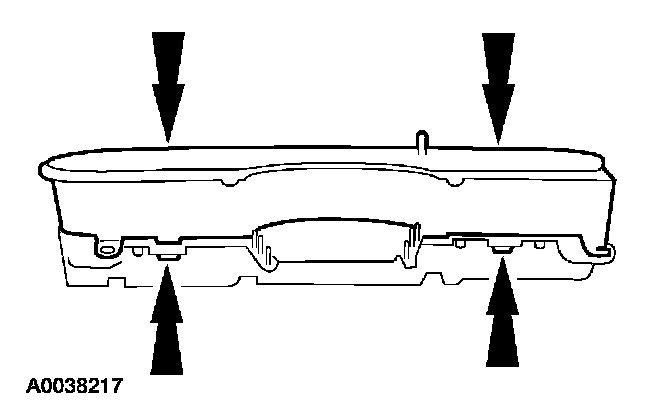

2. Release the 4 clips and remove the cluster lens.
3. To install, reverse the removal procedure.
