Test V: The Speed Control Indicator Is Never/Always ON
Test V: The Speed Control Indicator Is Never/Always ON

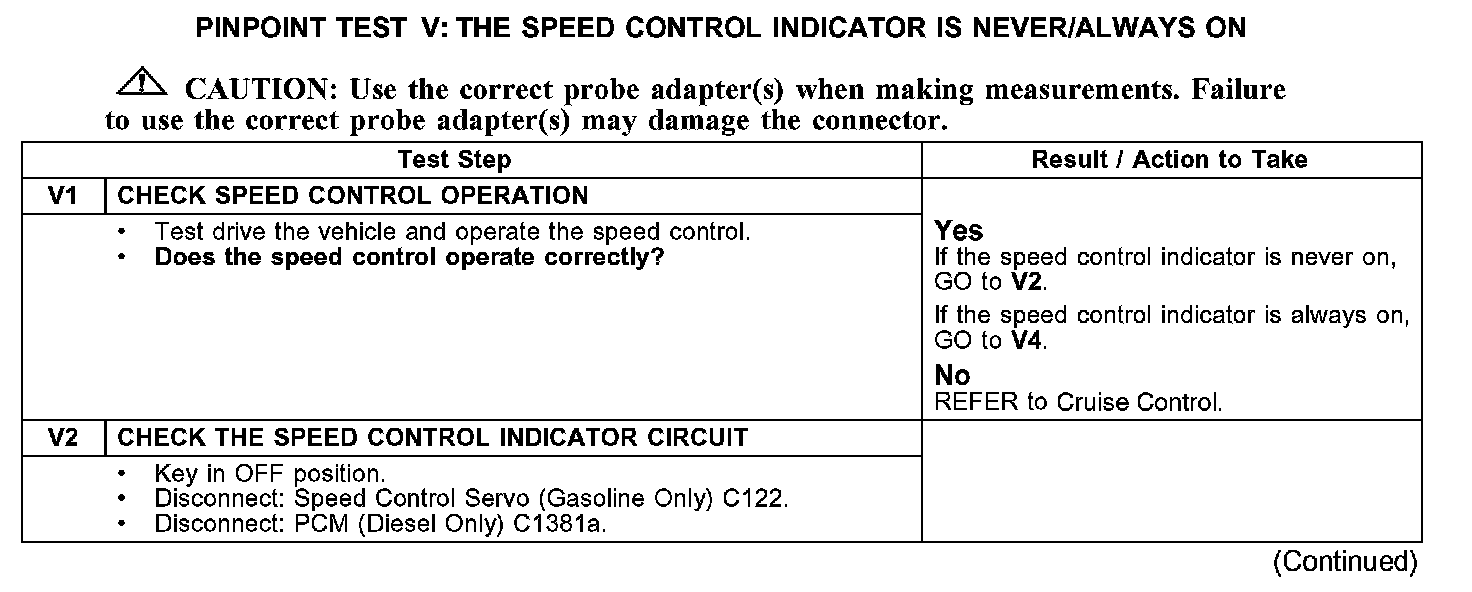

PINPOINT TEST V: THE SPEED CONTROL INDICATOR IS NEVER/ALWAYS ON
V1-V2:

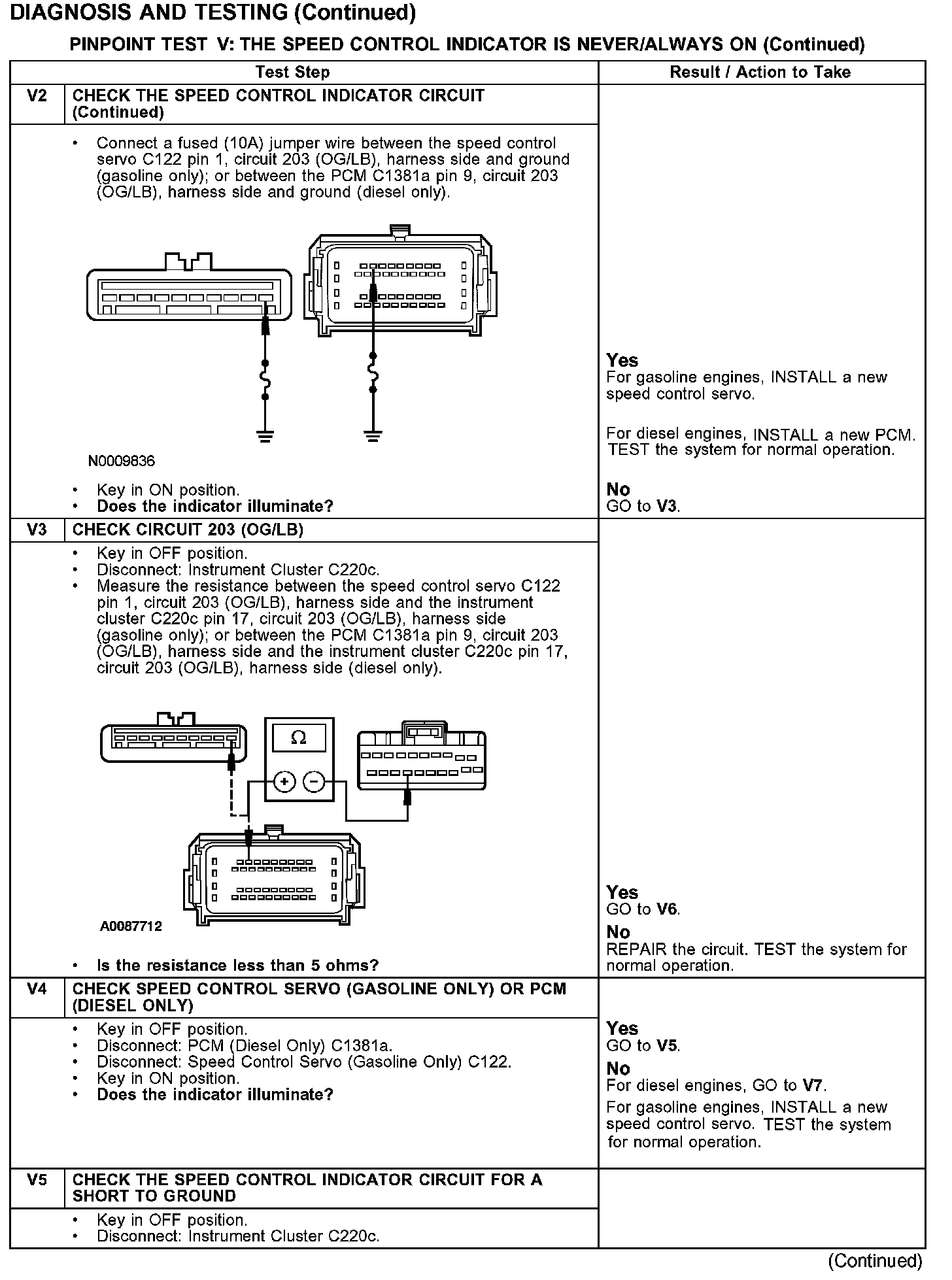

V2-V5:
V5-V7:
