Wiper Motor Linkage: Service and Repair

WIPER MOUNTING ARM AND PIVOT SHAFT

Removal and Installation
1. Remove the cowl top vent panels.







2. Remove the wiper mounting arm and pivot shaft.

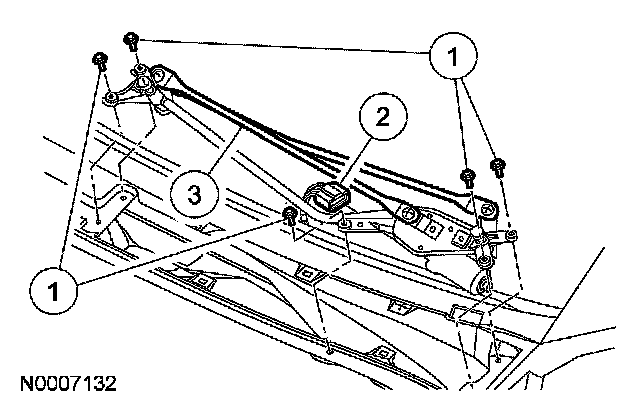

1 Remove the five bolts.
2 Disconnect electrical connector.
3 Remove the wiper mounting arm and pivot shaft assembly.

3. If necessary, remove the wiper motor.
4. To install, reverse the removal procedure.
