Test C: Adjustable Brake Pedal Does Not Move
Test C: Adjustable Brake Pedal Does Not Move

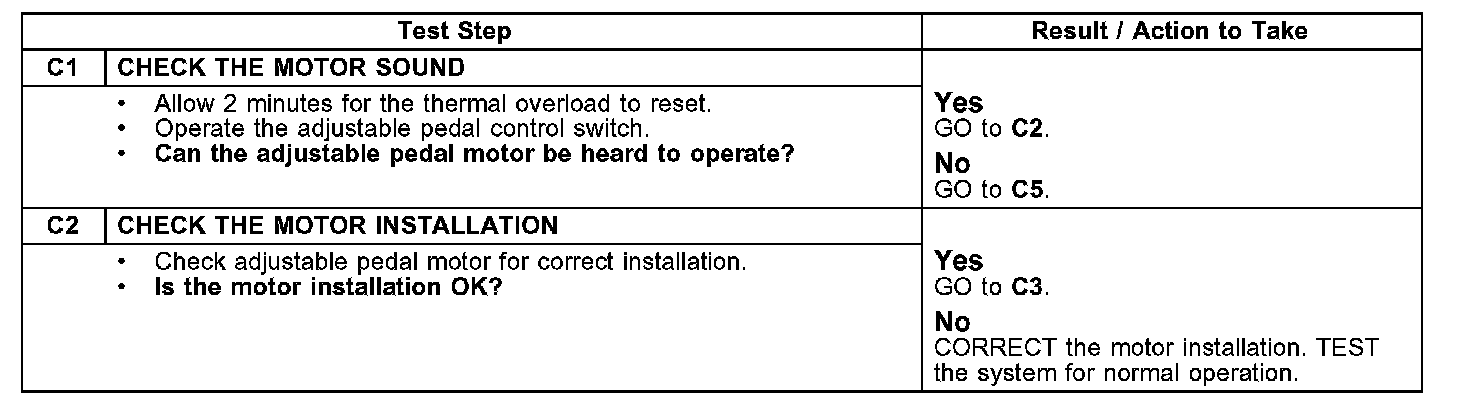

Test C1-C2:

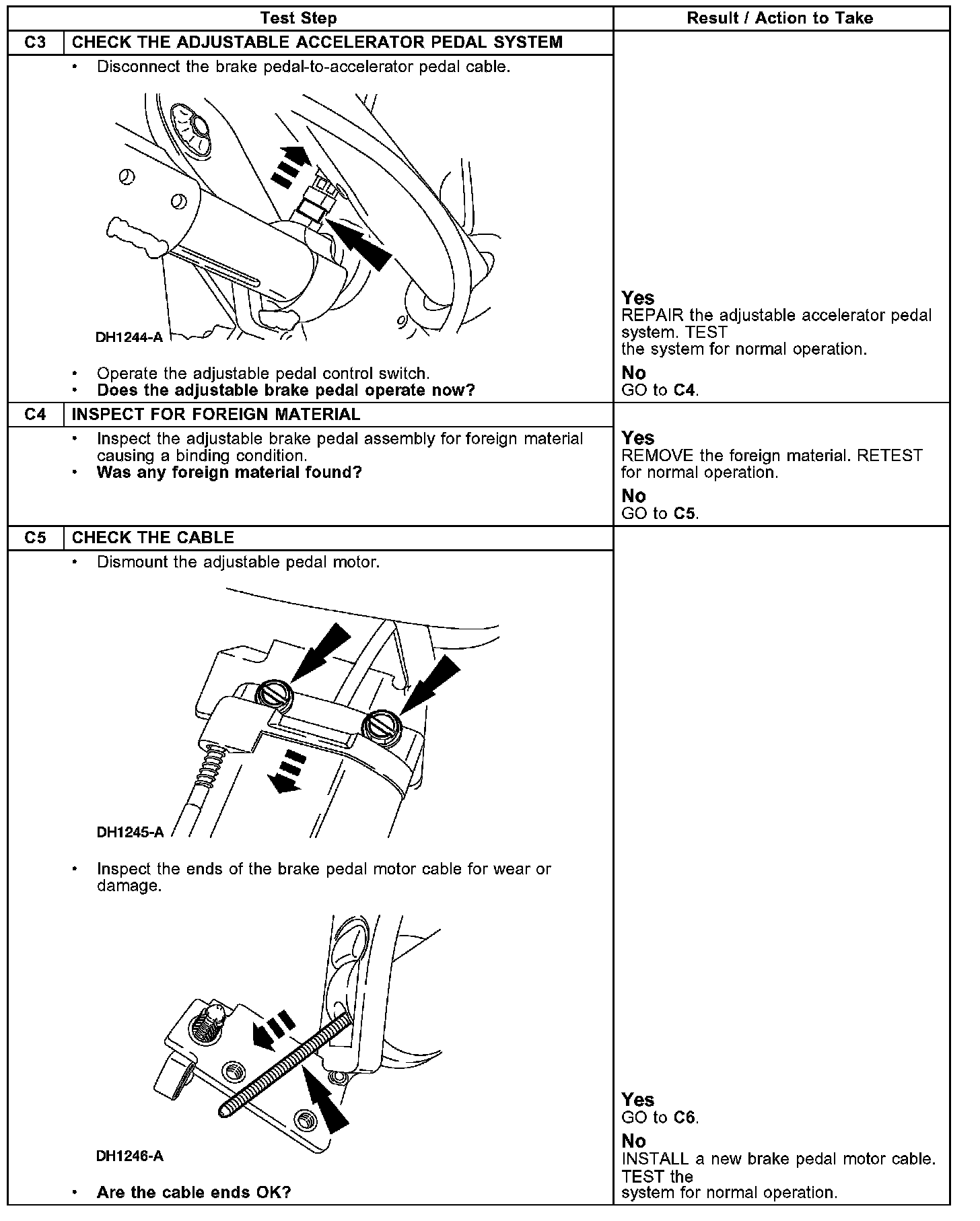

Test C3-C5:

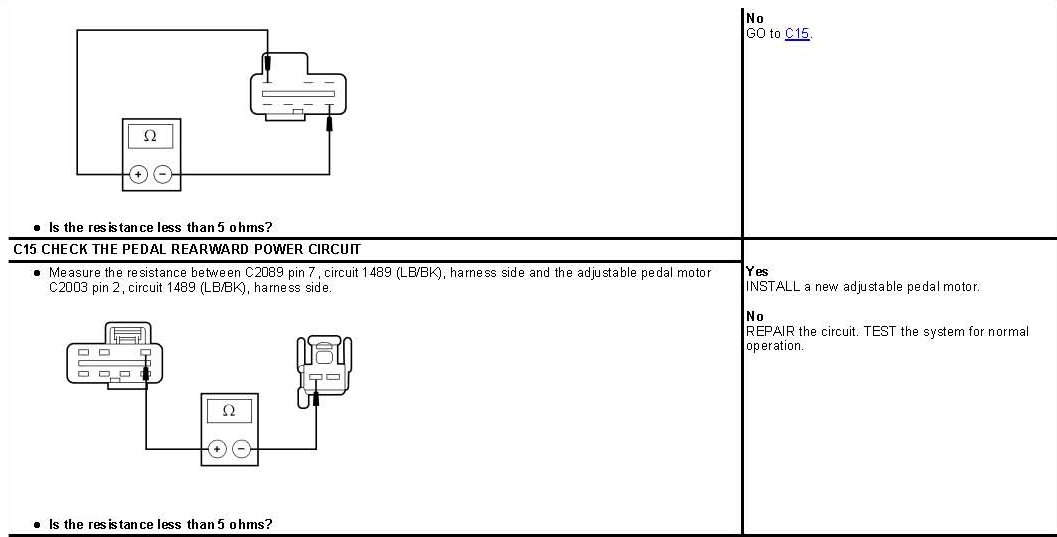

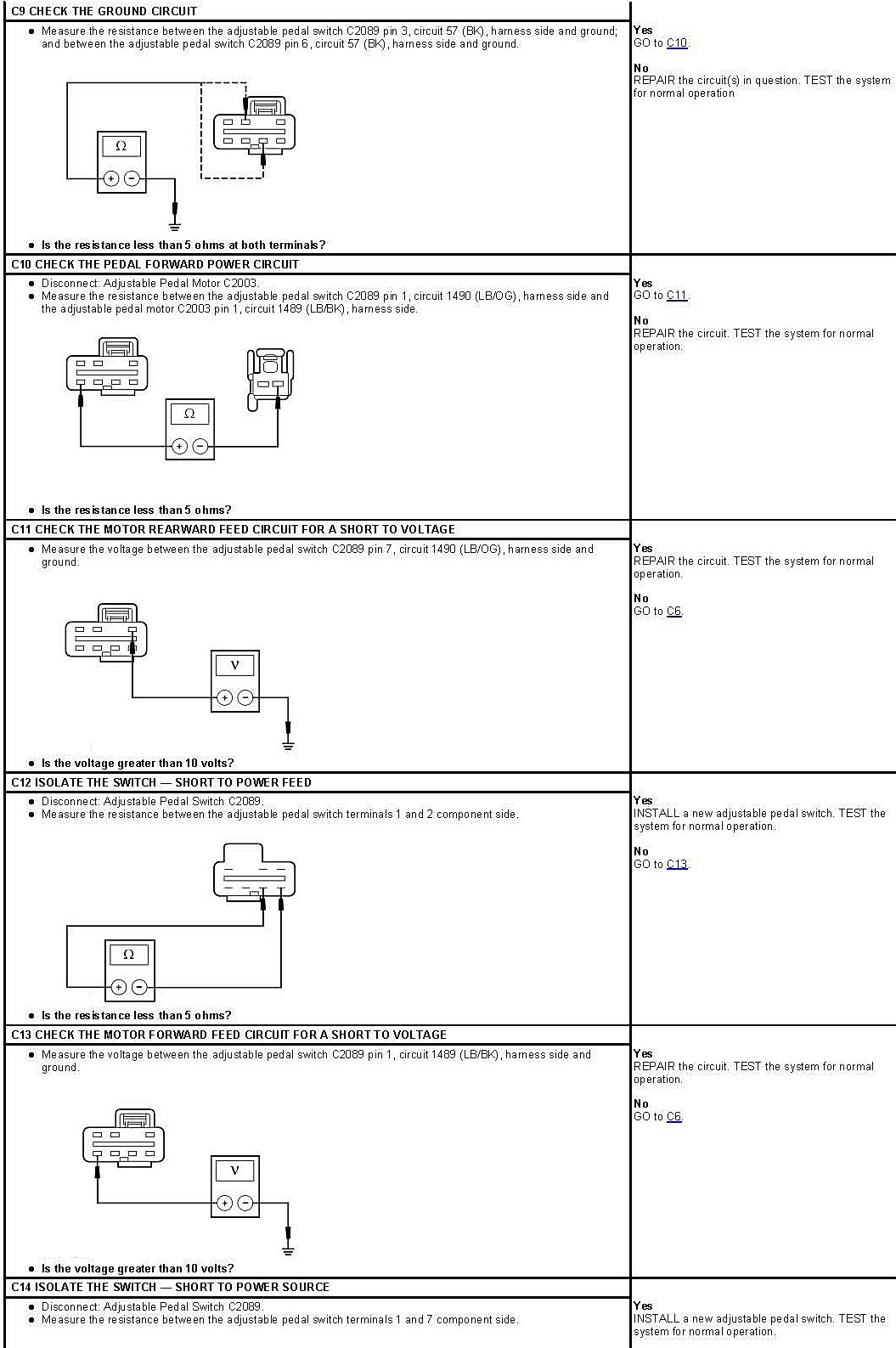

PINPOINT TEST C: ADJUSTABLE BRAKE PEDAL DOES NOT MOVE
