Parking Assist Warning Indicator: Service and Repair

PARKING AID SPEAKER

Removal and Installation
1. Remove RH upper D-pillar trim panel.

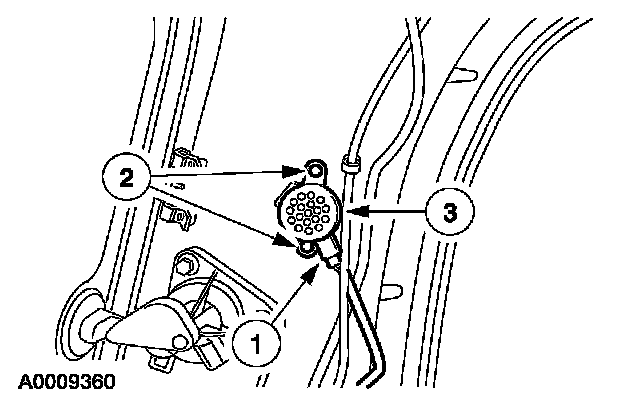

2. Remove the parking aid speaker.
1 Disconnect the electrical connector.
2 Remove the 2 speaker retaining screws.
3 Remove the parking aid speaker.

3. To install, reverse the removal procedure.
