Drive Belt: Service and Repair

Accessory Drive Belt 4.0L SOHC

Removal and Installation

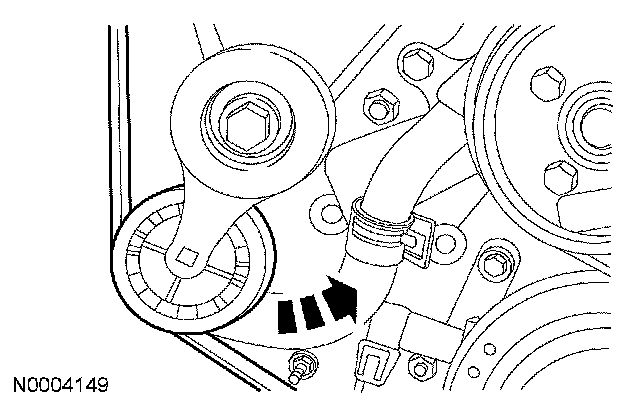

1. Rotate the accessory drive belt tensioner counterclockwise and remove the drive belt.
2. To install, reverse the removal procedure.
^ For correct belt routing, refer to Accessory Drive, Component Locations 4.0L SOHC in the Description and Operation.
