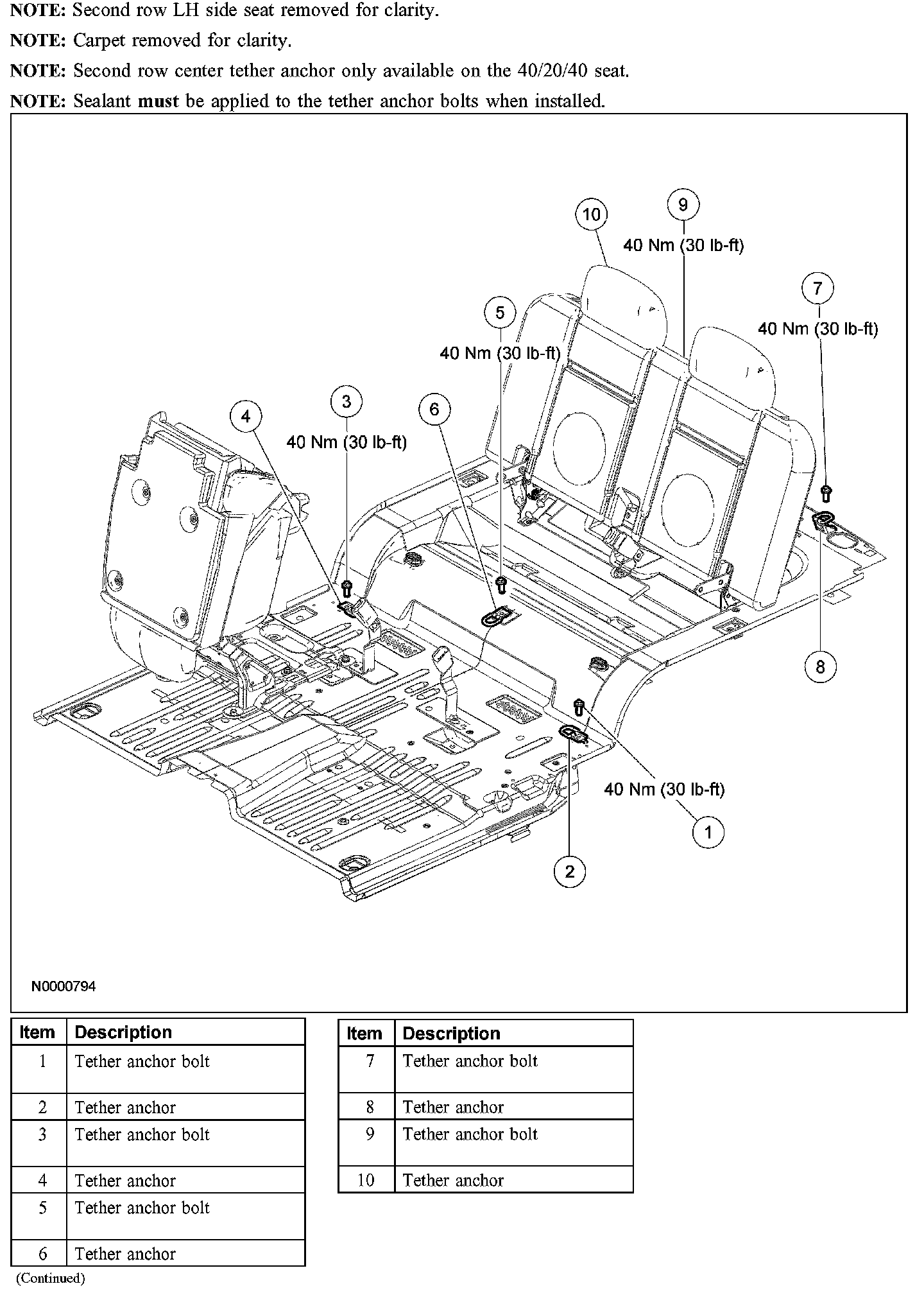

Safety Belt System - Exploded View, Child Safety Seat Tether Anchor

SAFETY BELT SYSTEM - EXPLODED VIEW, CHILD SAFETY SEAT TETHER ANCHOR

Removal and Installation







1. For additional information, refer to the procedures.
