Test C: The High/Low Wiper Speeds Do Not Operate Correctly (Intermittent Wiper Mode OK)

PINPOINT TEST C: THE HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY (INTERMITTENT WIPER MODE OK)

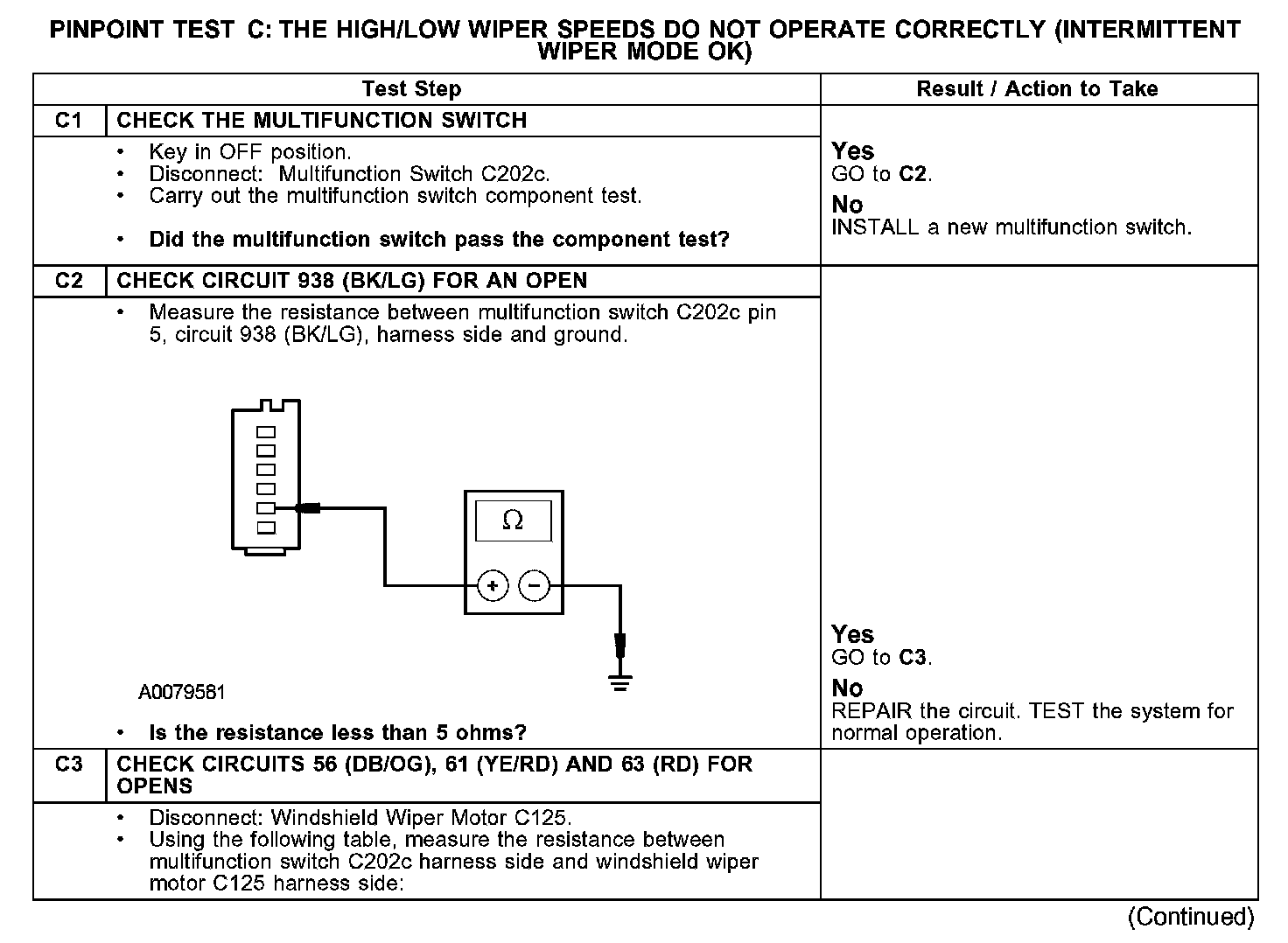

C1-C3:

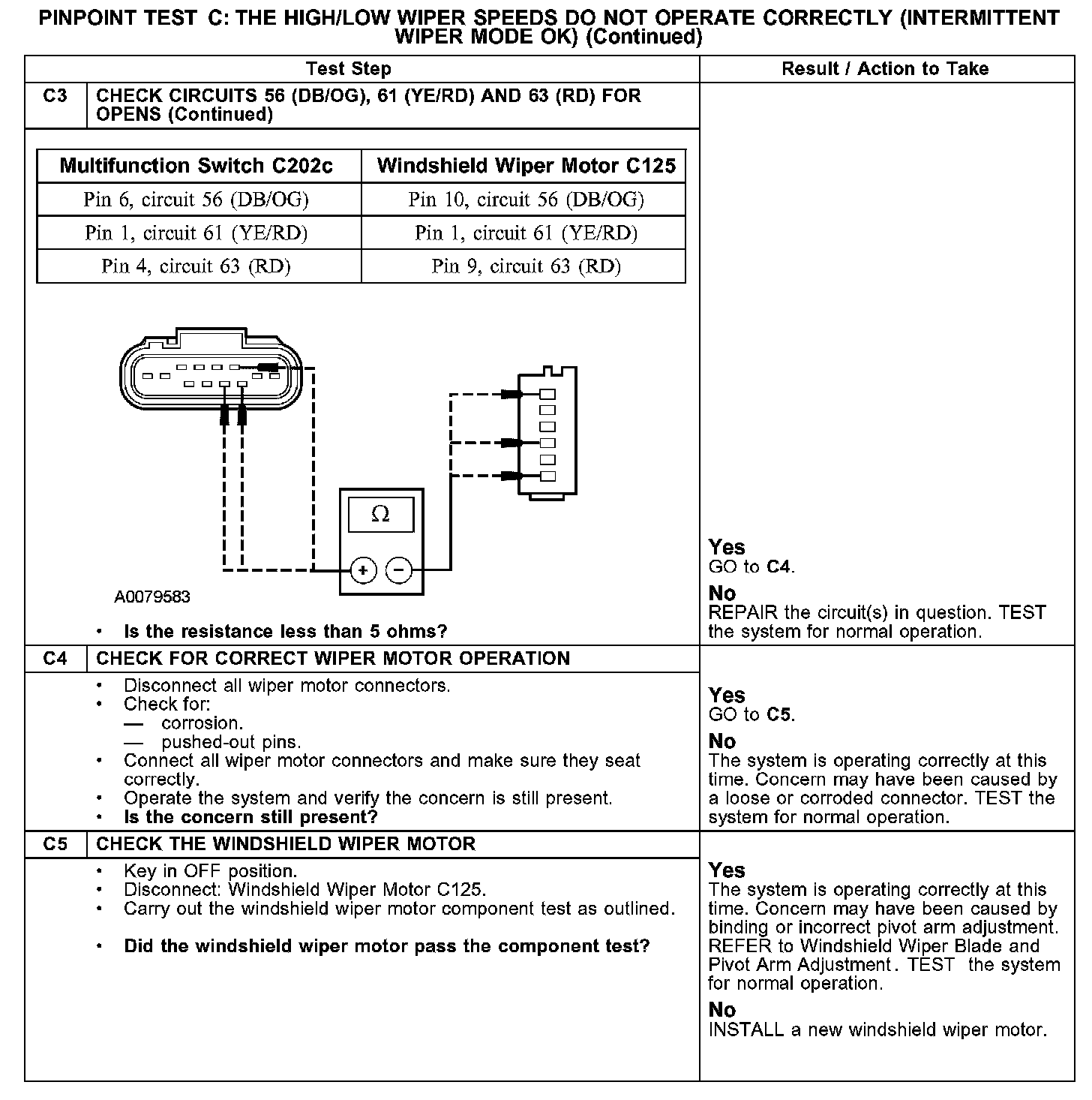

C3-C5:

Normal Operation
During normal operation, the windshield wiper motor receives voltage at all times through central junction box (CJB) fuse 44 (20A), circuit 950 (WH/BK). The windshield wiper motor also receives power with the ignition switch in RUN or ACC positions through CJB fuse 9 (5A), circuit 65 (DG). Ground is provided to the windshield wiper motor through circuit 938 (BK/LG). The run/park relay and high/low relay are contained in the wiper motor electronics. Mode of operation is dependant on the signal(s) received from the multifunction switch.

Possible Causes
- Multifunction switch
- Open in circuit 938 (BK/LG), 56 (DB/OG), 61 (YE/RD) or 63 (RD)
- Windshield wiper motor
