Rear Axle Backlash Shim Adjustment Table
Rear Axle Backlash Shim Adjustment Table

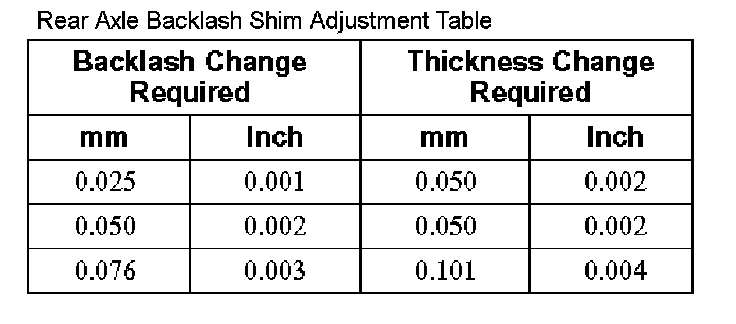

Rear Axle Backlash Shim Adjustment Table (part 1):

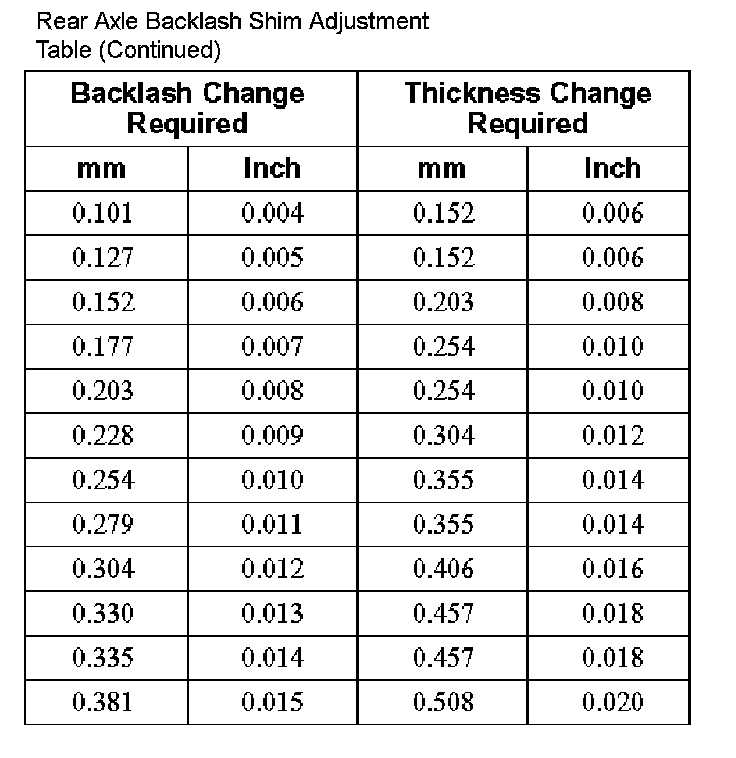

Rear Axle Backlash Shim Adjustment Table (part 2):
