Instruments - Restricted Door Mirror Inward Movement

TSB 06-1-2

01/23/06

LIMITED OR RESTRICTED INWARD MOVEMENT OF EXTERIOR REAR VIEW MIRROR GLASS

FORD:
2006 Explorer, Ranger

MERCURY:
2006 Mountaineer

ISSUE
Some 2006 Explorer 4dr, Mountaineer, and Ranger vehicles may exhibit limited or restricted inward movement of the exterior rear view mirror glass. This may be caused by the dampner tab coming out of its track.

ACTION
Inspect and reposition dampner as necessary. Refer to the following Service Procedure.

SERVICE PROCEDURE

1. Move the mirror to the full outward and downward position.

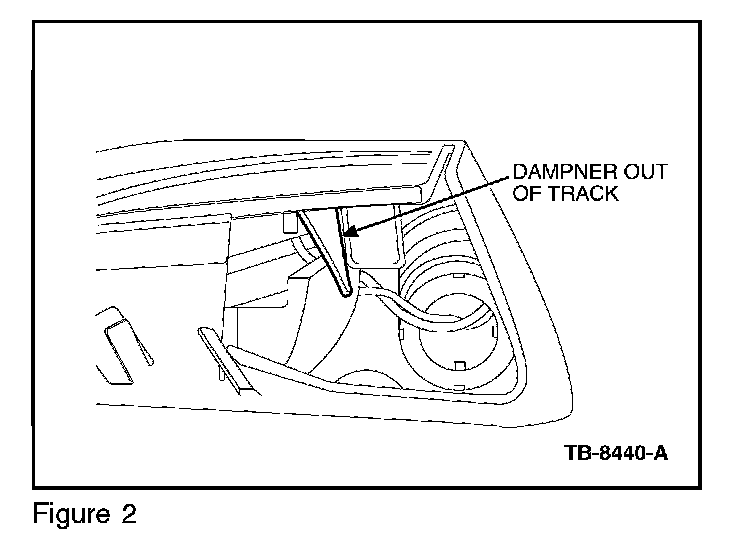

2. Inspect behind the glass to see if the dampner is in its track (Figures 1 and 2).

a. If it is in its track, continue with normal diagnostics. Do not continue with this TSB.

b. If it is out of its track, proceed to Step 3.

3. Gently lift glass up until the bottom of the dampner is higher than the track.





4. Flex dampner back into the track and release the glass (Figure 3).

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage

OPERATION DESCRIPTION TIME

060102A 2006 Explorer, 0.2 Hr.
Mountaineer, And Ranger:
Inspect And Reposition
Both Exterior Rear View
Mirror Glass Dampners If
Necessary

DEALER CODING
CONDITION
BASIC PART NO. CODE
17K707 41
