Band, Clutch, Solenoid Application Chart (L)

Torqshift Automatic Transmission

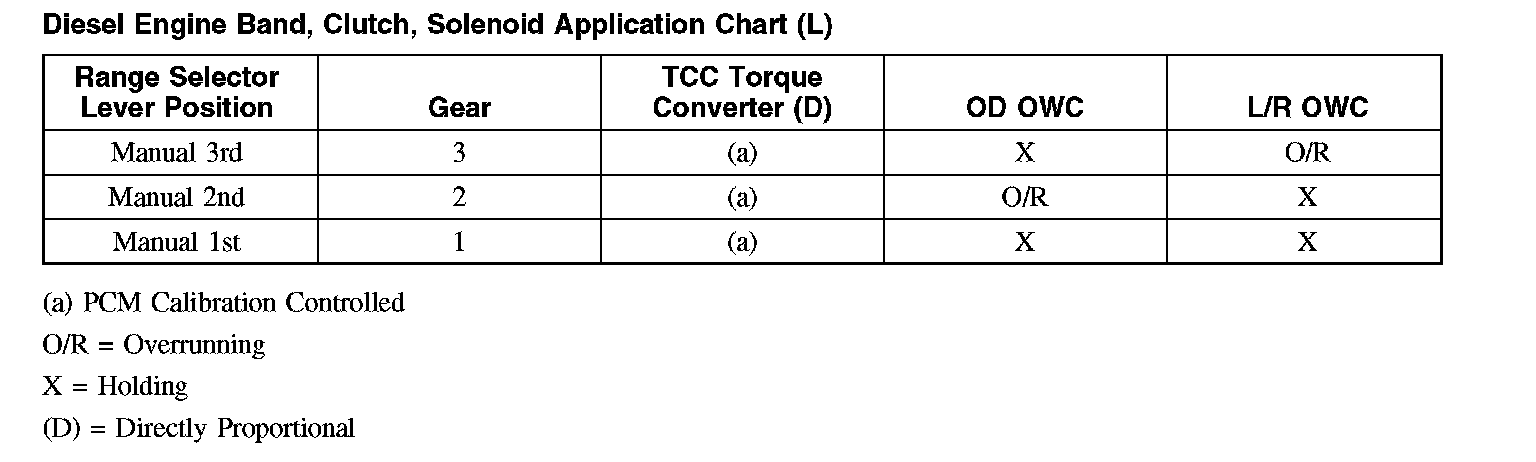

Diesel Engine Band, Clutch, Solenoid Application Chart (L)

Diesel Engine Band, Clutch, Solenoid Application Chart (L):
