Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT







Removal and Installation

NOTE: It is not necessary to remove the audio unit to retrieve the part number.

1. NOTE: Module configuration is only required if a new audio unit is being installed.

Upload the audio unit configuration information to the scan tool.

2. Remove the center instrument cluster finish panel.

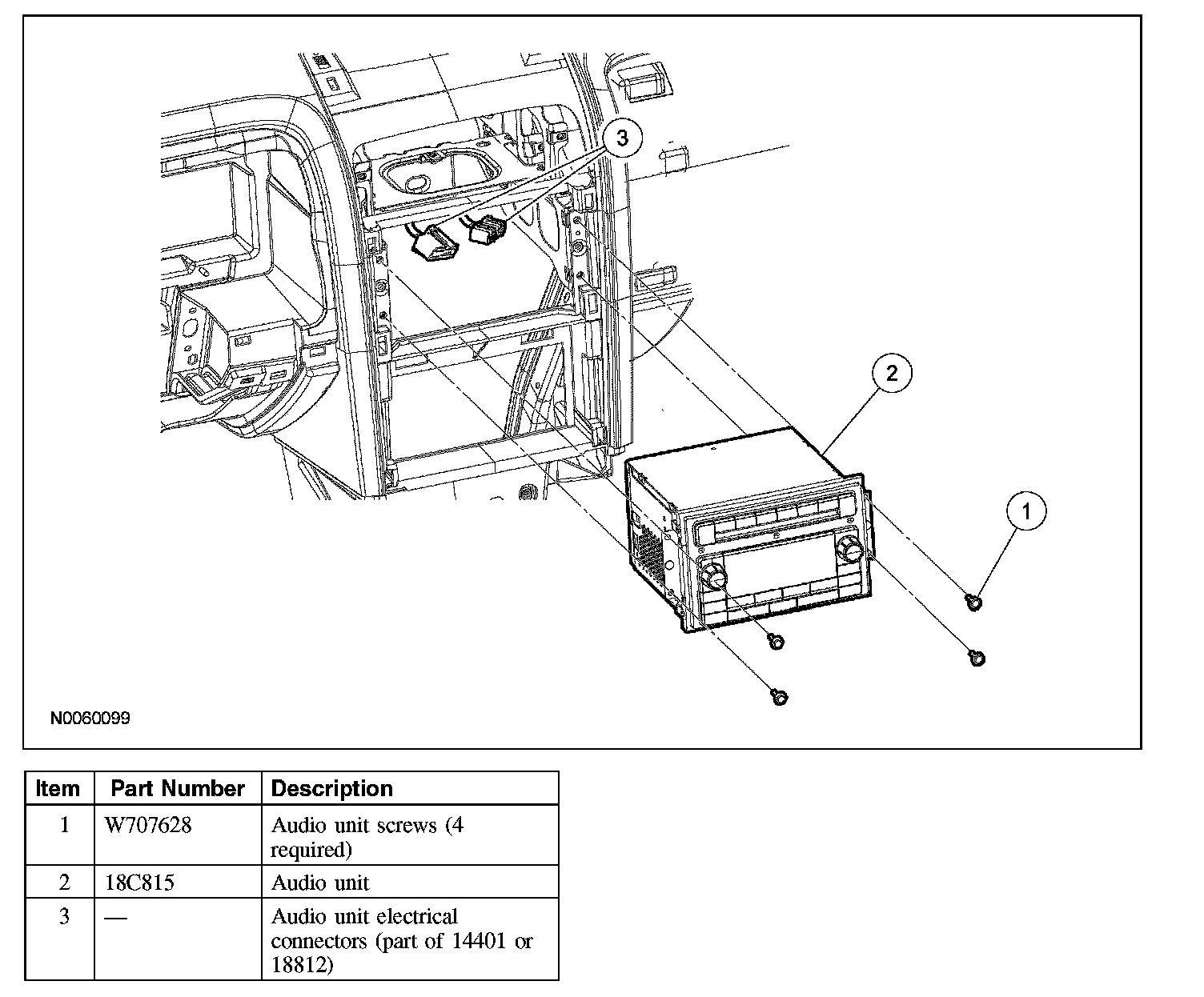

3. Remove the 4 screws and the audio unit.
- Disconnect the electrical connectors and the antenna cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the audio unit.
