Exterior Mirror

EXTERIOR MIRRORS - EXPLODED VIEW







EXTERIOR MIRROR

Removal and Installation

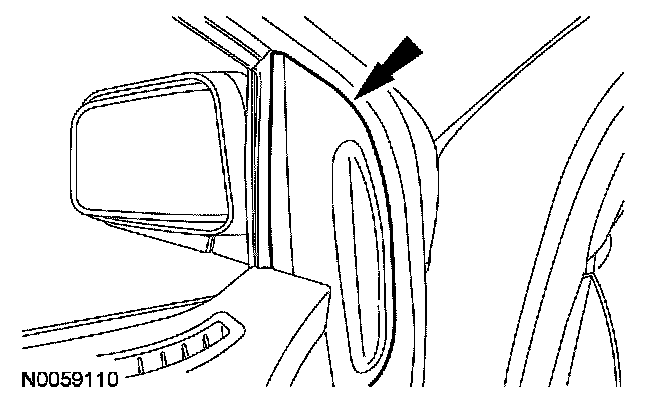

1. Remove The front door sail panel.

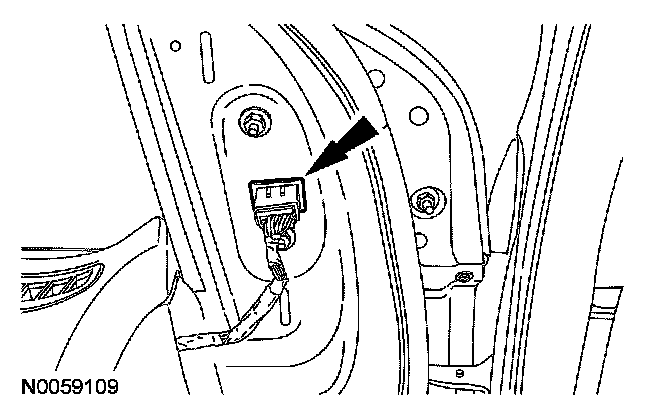

2. Disconnect the exterior mirror electrical connector.







3. Remove the 3 bolts and the exterior mirror.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
