Exterior Mirror Glass

EXTERIOR MIRRORS - EXPLODED VIEW







EXTERIOR MIRROR GLASS

Removal
1. Position the exterior mirror glass in a downward position to obtain a gap at the top edge of the mirror.







2. WARNING: Place a shop towel between the exterior mirror glass and the hand to avoid personal injury in case of glass breakage.

Disengage the mirror glass.

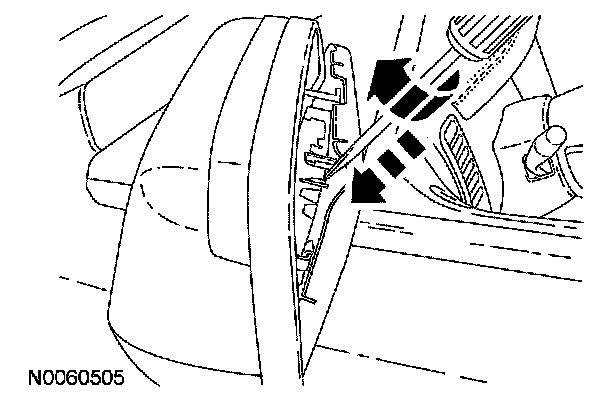

- Insert a flat-blade screwdriver between the mirror glass tabs and the mounting plate and rotate to separate the locking tabs from the mounting plate.
- Continue to insert and rotate the screwdriver until the remaining mirror glass tabs separate from the mounting plate.
- Carefully pull the top edge of the glass away from the exterior mirror housing.

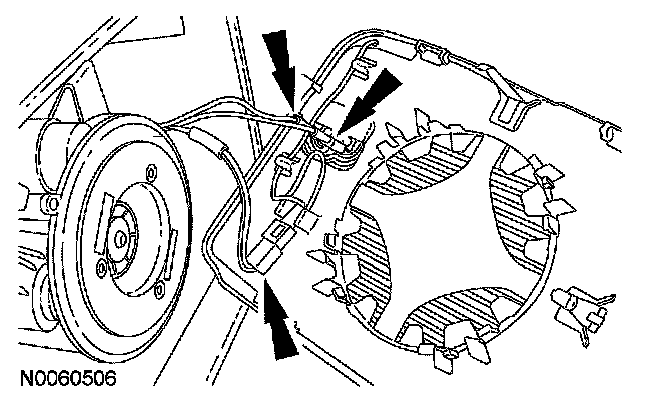

3. If equipped, disconnect the heated mirror and auto-dimming electrical connectors and remove the glass.

Installation







1. If equipped, connect the heated mirror and auto-dimming electrical connectors.
2. Position the mirror glass onto the rear view mirror motor.

3. NOTE: An audible click will be heard during installation.

Firmly press the exterior rear view mirror glass until it snaps onto the exterior mirror motor.

4. Rotate the exterior mirror glass in all directions after the installation to make sure all clips are completely attached.
