Manual Seat Track With Heat

Manual Seat Track With Heat

Cushion Frame From Underneath:

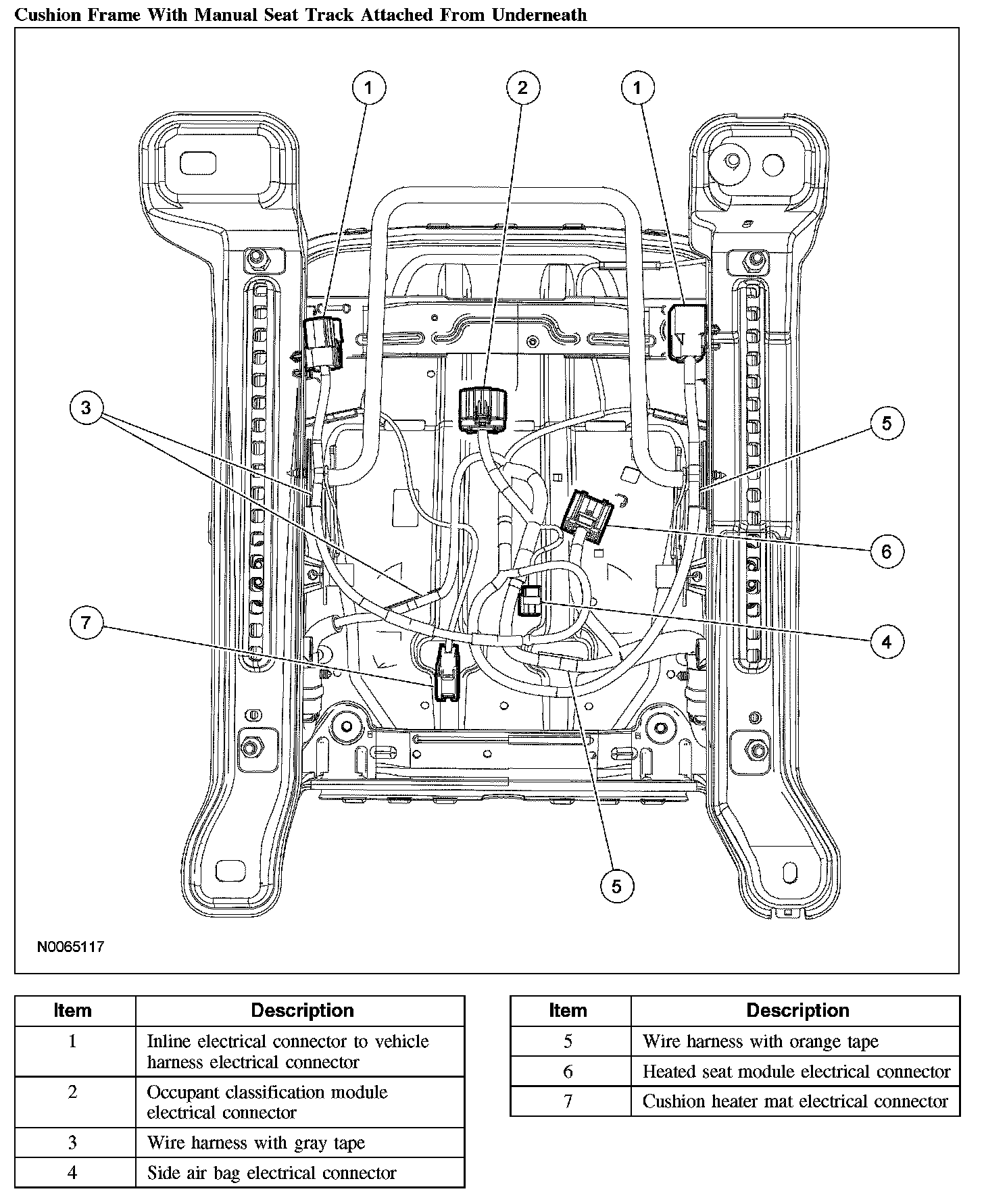

Cushion Frame With Manual Seat Track Attached From Underneath:

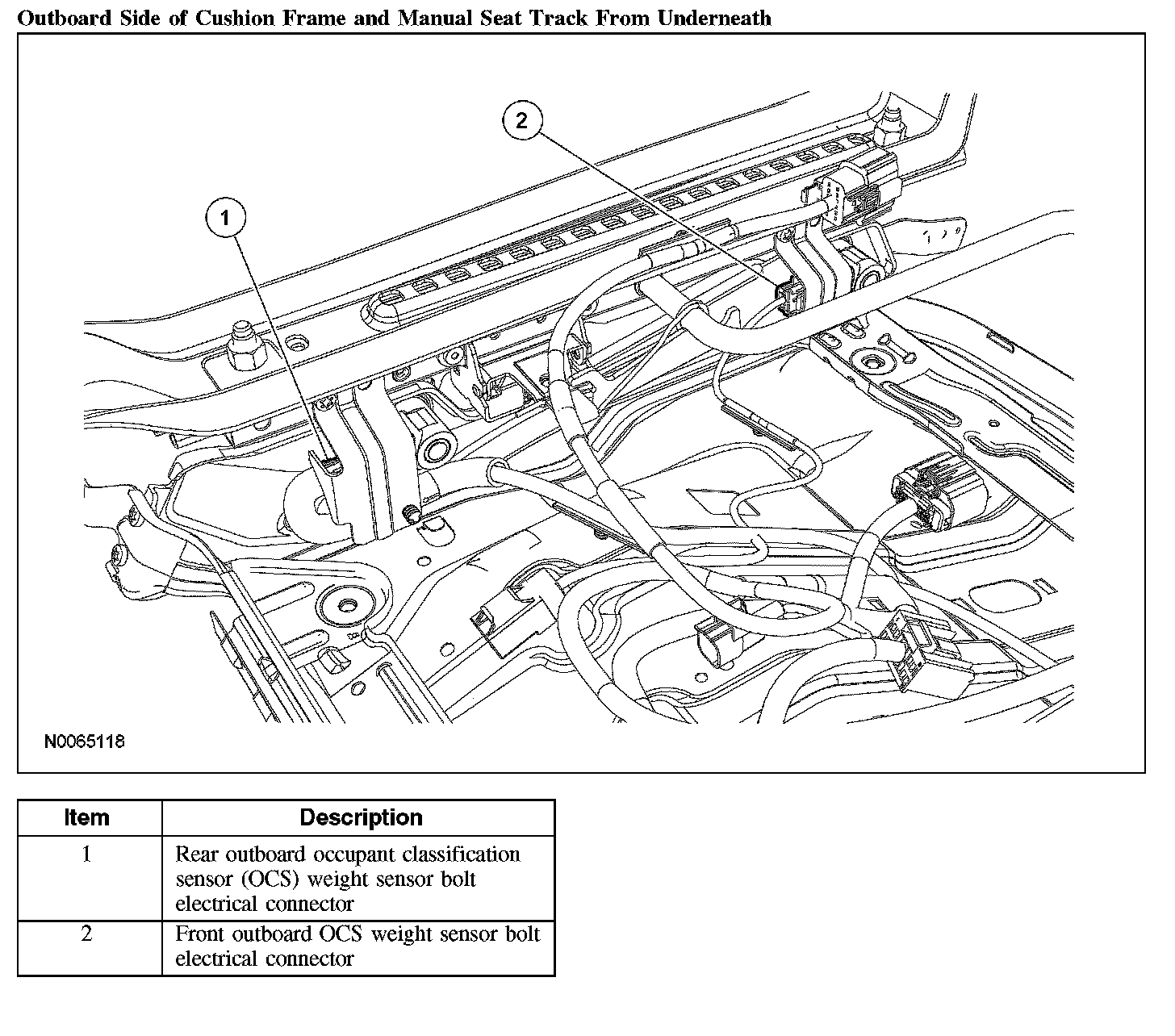

Outboard Side Of Cushion Frame And Manual Seat Track From Underneath:

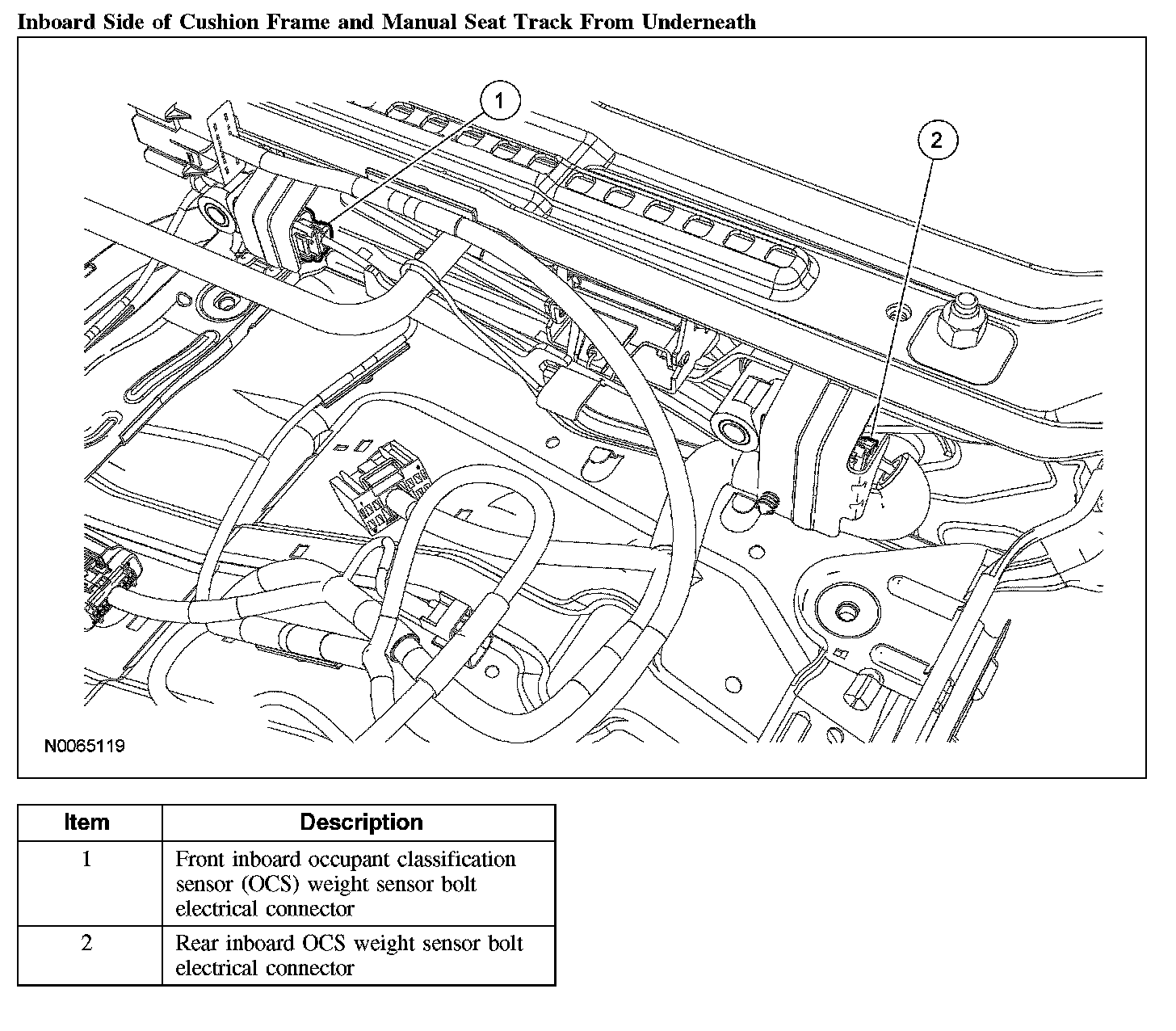

Inboard Side Of Cushion Frame And Manual Seat Track From Underneath:

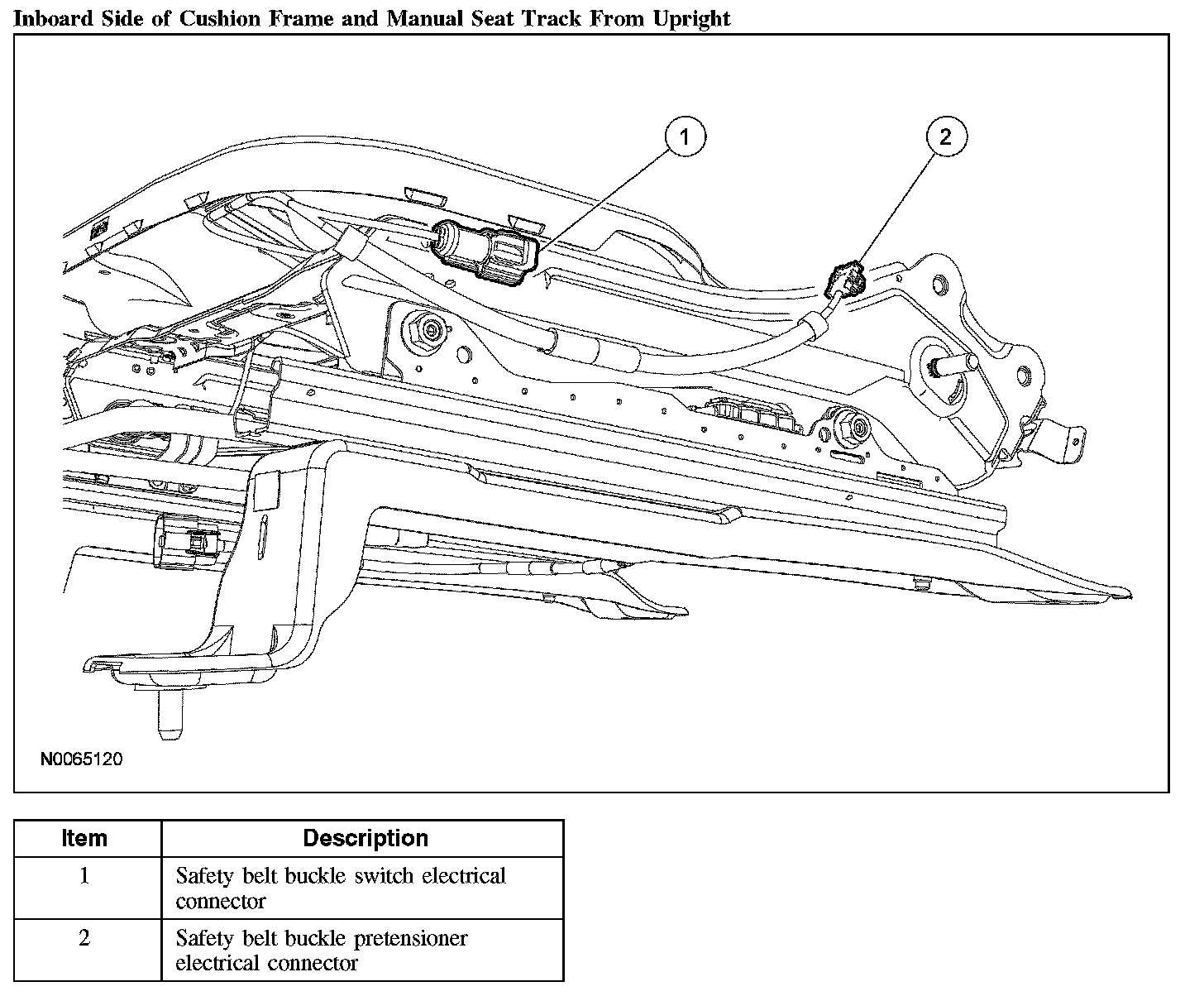

Inboard Side Of Cushion Frame And Manual Seat Track From Upright:

1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
